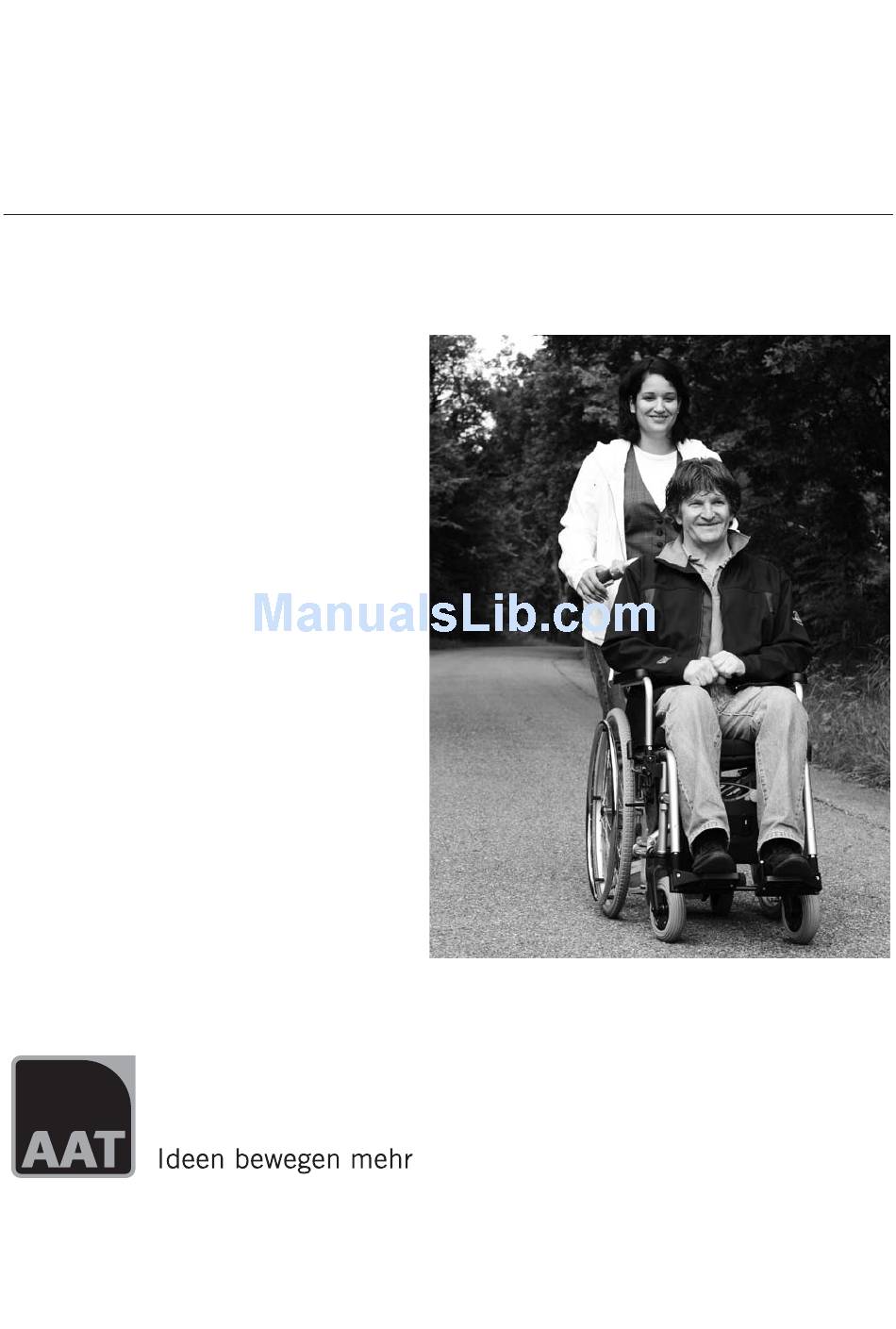

- Page 1 Pushing and braking aid Translation of the original user's manual...
-
Page 2: Ce Declaration Of Conformity
CE-Declaration of conformity The company AAT Alber Antriebstechnik GmbH herewith declares that the products of the pushing and braking aid movilino were developed and manu- factured in concordance with the regulations of the European Union, EEC Guidelines 2007/47/EG and 2006/42/EG. -
Page 3: Table Of Contents
Adequate use ....Features of the movilino ....Technical data .... - Page 4 Control and display elements ....Control unit ....
-
Page 5: General Information
With the movilino one person could be carried safely and without any effort up to a increase of 18%. The movilino is suitable for the transportation on le- vel base; he is compact, light and versatile. The sticker with the device's serial number is located on the side of the hou- sing. -
Page 6: Description Of The Product
Said person should be able to sit properly without help, otherwise you should secure them with a safety belt. The latter is an accessory available at AAT Al- ber Antriebstechnik GmbH. In addition, the arms of the person to be transported should not protrude over the arm rests of the wheelchair during the transportation process. -
Page 7: Features Of The Movilino
Features of the movilino Œ = handle = column Ž = brackets = power unit = battery pack... - Page 8 2.2.1 Control unit Œ = safety chip for the engine immobiliser = ON/OFF switch Ž = rocker switch forward/backward = speed control 2.2.2 Overview Œ = control unit = tightening knob for the handles' height adjustment Ž...
-
Page 9: Technical Data
= 23,14 kg limits for mounting the device on a wheelchair seat width of 32 cm or more max. approved total weight 170 kg (person, wheelchair, movilino)* continually adjustable speed 6 km / h forward 3 km / h backward... -
Page 10: Dimensioned Sketch
Dimensioned sketch... -
Page 11: Standard Scope Of Delivery
Standard scope of delivery The following is part of the standard scope of delivery: Œ = movilino power unit plus handle = battery pack Ž = charger ...as well as the components mounted to the wheelchair, power cable and bag for the battery pack plus the user's manual (no picture). -
Page 12: Assembly
Assembly With a few movements you can assemble the movilino by means of several fixtures and tightening knobs. Disassembly is just as easy. Handle First connect the handle with the power unit by inserting the column Πinto the holding device on the power unit. - Page 13 Should there be dirt or moisture the two parts should never be connected. Clean and dry the Sub-D socket connector with a regular cleaning cloth. You may not connect other devices to this Sub-D socket connector. This could destroy the movilino or the other electric devices.
-
Page 14: Brackets
In such case, please contact your local dealer immediately. 3.2.2 Bracket on the movilino On your movilino you find an upper and lower rod. To adjust the lower rod's height there are several vertical holes drilled into the housing of the movilino. - Page 15 1. Please use the locking brakes of your wheelchair to avoid any move- ment of the chair while the movilino is being mounted. 2. Tilt the movilino slightly backwards. As soon as the device sits on its wheels you may push the movilino back and forth. This only works if...
-
Page 16: Attach The Battery Pack
Only by using quick pins a strong connection between movilino and wheel- ‘ chair is secured. The movilino may only be operated, if the quick pins are securely lo- cked in the wheelchair’s brackets. The wheelchair’s wheels may not be removed when you operate the... -
Page 17: Detach The Battery Pack
Plug the power cable’s plug into the socket on the movilino. Please make sure that the power cable’s plug is dry and clean. If the device is already attached to the movilino as described in chapter 3.2 you are ready to go. -
Page 18: Anti-Tilt Support
Anti-tilt support You may operate the movilino only with installed anti-tilt support. If your wheelchair does not have a tilt support, which is standard with most wheelchair manufacturers, we can equip your wheelchair with the necessary anti tilt support as an optional accessory of the movilino. -
Page 19: Functional Check
Ž unlocking button, they are not secured properly. Please make sure that the tilt support is not jammed whenever you use the movilino. Please do not drive backwards against a wall with mounted tilt supp- orts. Please note that no tilt support can secure all potentially difficult si- ... -
Page 20: Safety Instructions
(e.g. air pressure, maximum total weight, maximum inclination, etc.). Limit values may never be exceeded. To assure a safe use of the movilino, it is indispensable to observe the follo- wing directions. Special information concerning the operation: Generally all of the wheelchair’s specific limiting values indicated by the manufacturer must be... -
Page 21: Instruction
Please do not drive to the edge of stairs or precipices with the movilino tur- ned on. Please do not attach anything to the movilino’s handle! Please check the anti-tilt support before each use. Please do not drive bac-... -
Page 22: Wear Limit
Care and maintenance: Please make sure that you charge the batte- ry pack after each use of the movilino. If the movilino is not in operation, please turn off the device. If the working elements of the device block, turn the movilino off immediate- Please note the wear limit of the powered wheels (see chapter 4.4)! -
Page 23: Power Unit
Yet the hub motor still drives upward so you may push the wheelchair manually. Power unit: The movilino plus its power unit is for the most part co- vered by the housing. Nevertheless, please make sure that while driving you do not put fingers or hands into the rotating area (e.g. -
Page 24: Operation
Operation Maximum lifting capacity Please make sure that the maximum lifting capacity of 170 kg (wheelchair, person and movilino) is not exceeded. Battery pack Please make sure that the batteries are fully charged before you use the mo- vilino for the first time. -
Page 25: Control And Display Elements
Before we get to the actual instructions for operation, we would like to intro- duce the movilino's most important components to you. Your movilino is ready to go when you receive it. Once the movilino is correct- ly mounted and connected, you can turn it on and use it immediately. -
Page 26: Charge Of Battery
To drive forward you press the longer back part of the rocker switch . To drive backward, please press the rocker switch’s shorter front part . The movilino speeds up the more you press the rocker switch until you reach the maximum pressure point. It slows down the more you release the rocker switch. -
Page 27: Control Light To Indicate Malfunction
In all other cases of malfunction the electro-magnetic brake is automatically activated. Trouble shooting If there are problems using the movilino, please check the following trouble shooting chart and see whether you cannot fix them yourself. Problem Check and potential solution... -
Page 28: Transport
When transporting the movilino in a vehicle, always secure the devi- ce according to the legal rules and regulations. The sealed lead acid batteries used in the movilino are not conside- red dangerous according to the IATA special guidelines A67 and GGVS Rn-Nr. -
Page 29: Accessories
The movilino works with batteries and is delivered with one battery pack with charging electronics. If you use the movilino often, i.e. if there are not sufficient breaks for the bat- teries to be recharged, we recommend you obtain an additional battery pack (available as an accessory). -
Page 30: Care, Maintenance And Recycling
Care, maintenance and recycling To insure the movilino’s safe and proper functioning we recommend a safety check done on the device every two years, even though there might not be any outer damage or malfunction evident. For safety reasons this safety check or repairs of any sort may only be performed by AAT Alber Antriebstechnik. - Page 31 Exclusively use the AAT Alber Antriebstechnik GmbH voltage con- verter! Check the voltage converter regularly and protect it from oil, grease, aggressive cleaning agents, thinners and/or damage by sharp edges, etc. Repairs and service check-ups may only be performed by AAT Alber Antriebstechnik GmbH or their authorized personnel.
-
Page 32: Battery Pack
In such case have your batteries checked by your local dealer and exchan- ged, if necessary. If the movilino is at a standstill for some time, please connect it to the charger to retain the charge. This does not damage the sealed lead acid batteries, on the contrary, it increases their durability. - Page 33 Finally plug the charger into the wall outlet. Since the movilino is supposed to be connected to the charger at all times whenever it is not in use, you need to remove the charger from the wall outlet and pull the plug from the charging socket on the bat- tery pack every time before you use it.
-
Page 34: Fuse
The movilino and its battery pack are products of long durability. However, if your movilino is old and has reached the end of its lifespan you may return its components to AAT Alber Antriebstechnik GmbH or your local dealer to be recycled. -
Page 35: Warranty And Liability
Warranty and liability Warranty AAT Alber Antriebstechnik GmbH grants a warranty of two years for all its products of type movilino including all its accessory parts (with the excepti- on of the sealed lead acid batteries). The warranty begins at the date of pur- chase and covers failure of material and errors in manufacturing. - Page 36 AAT Alber Antriebstechnik GmbH Postfach 10 05 60 · D-72426 Albstadt Tel. +49.74 31.12 95-0 · Fax +49.74 31.12 95-35 www.aat-online.de · info@aat-online.de...
