www aat-online de
V-MAX
2
Translation of the original user manual
EN
2021-03 (1.1)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V-MAX2 and is the answer not in the manual?

Questions and answers

Related Manuals for AAT V-MAX2

Summary of Contents for AAT V-MAX2

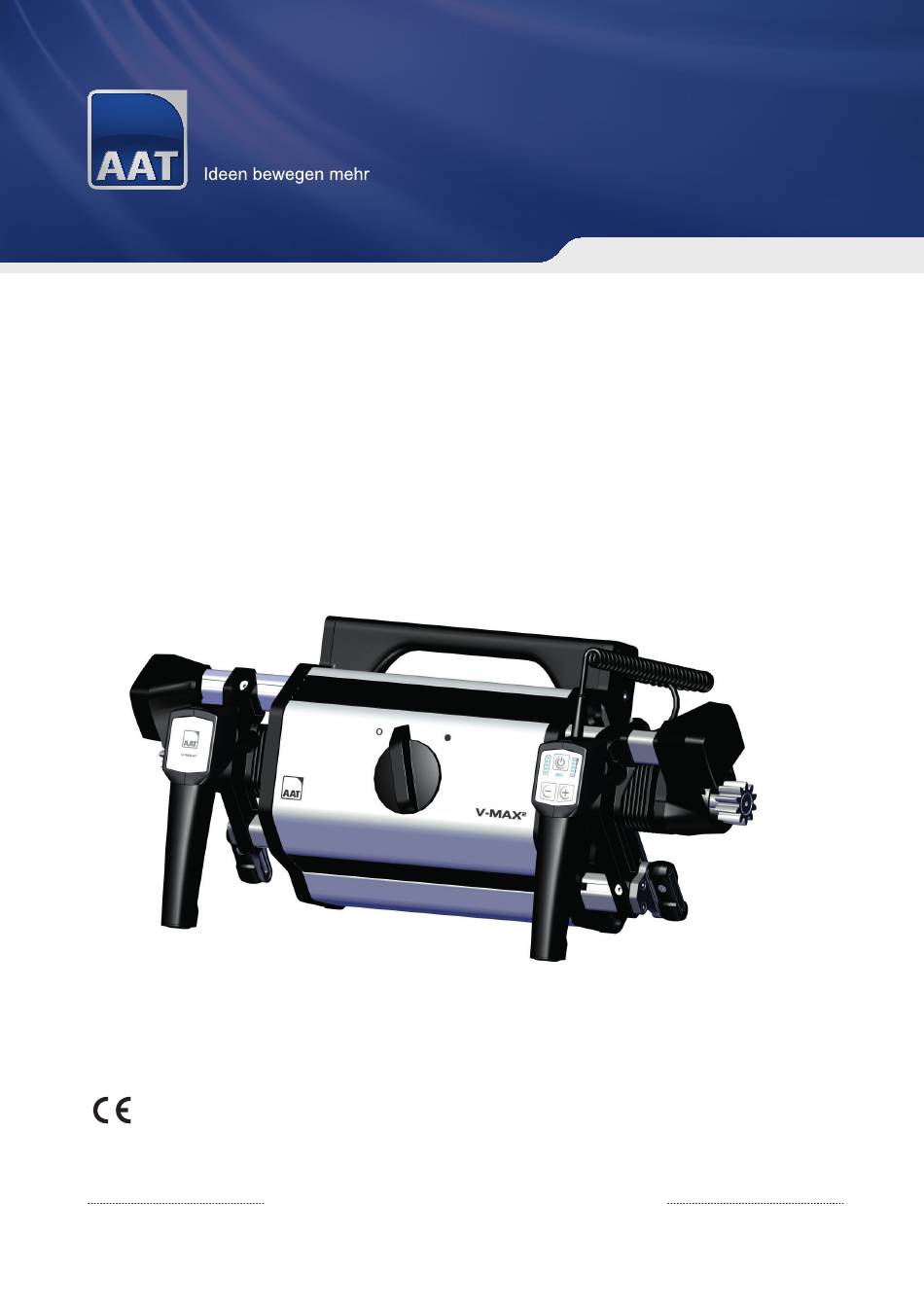

  • Page 1 V-MAX Translation of the original user manual 2021-03 (1.1)
  • Page 2  Spare parts  Showroom & exhibition devices With our professional service concept  Repair processing  Re-use we at AAT prove once again our high claim of quality and off er our clients an  Technical information  Complaints all-inclusive package.
  • Page 3 You will also fi nd all safety-relevant changes that have been made to the user manual on our homepage. All versions with details of the production period of the product are obtainable at: www aat-online de/de/bda/v-max2...

  • Page 4: Table Of Contents

    Table of Contents Symbols and safety instructions Explanation of the symbols on the packaging Explanation of the symbols on the device and the type plate Product description Device overview ..........8 Overview of type plate incl.

  • Page 5: Symbols And Safety Instructions

    V-MAX real conditions compared to laboratory tests. Training may only be carried out by the manufacturer, the AAT field staff or the qualified specialist shop. Do not operate the with the drive shafts retracted as this may damage the device.

  • Page 6: Explanation Of The Symbols On The Packaging

    WARNING Never reach into rotating/moving parts to avoid crushing. DANGER must not be operated in the case of severe visual impairment and/or blindness! V-MAX Do not exceed the total permissible weight and the maximum person weight, as this may lead to de- fects or an overload the V-MAX Avoid driving in heavy rain, ice, snow and on unsurfaced ground (sand, mud, loose crushed rock) to...

  • Page 7: Explanation Of The Symbols On The Device And The Type Plate

    Location: type plate Indicates the year the medical device was manufactured. 20XX Manufacturer Location: type plate Shows the manufacturer of the medical device (AAT Alber Antriebstechnik GmbH) Location: type plate Serial number of the product e.g. P1605XXXXXX Medical Device Location: type plate...

  • Page 8: Product Description

    Product description 4 1 Device overview Manufacturer information: For a simplifi ed assignment of the individual components, the numbers listed here are cited in full for the fi rst time in the following chapters. full for the fi rst time in the following chapters. Operating handle Pushing handle Handle mount at the rear...

  • Page 9: Overview Of Type Plate Incl. Serial Number

    4 2 Overview of type plate incl serial number Product / Model Max. speed Max. total weight Manufacturer address Person weight up to* Symbols (refer to chapter 3) Rated slope Barcode (refer to chapter 3) Operating voltage Serial number (refer to chapter 3) Rated power of motor *The person weight on the type plate was calculated using device type B with lead gel battery pack [GAMMA BOX].

  • Page 10: Contraindications And Restrictions

    4 6 Contraindications and restrictions The pushing and braking aids must not be used if: • the operator has obtained no training/instruction for the product • the operator is not physically and mentally able to operate the device safely • in the case of severe visual impairment and/or blindness •...

  • Page 11: Technical Data

    4 8 Technical data WARNING - Do not exceed the total permissible weight and the maximum person weight, as this may lead to defects or an overload the V-MAX NOTE - Observe the technical data. V-MAX Technology Lithium-ion (ALPHA box) Lead gel (GAMMA box) Drive dimensions Refer to chapter "Dimensioned sketch"...

  • Page 12: Dimensional Drawing

    In Bearbeitung >315-1000 ±0,8 Datum Name Baugruppe Artikelnummer bearb. 03.03.2020 Kurnaz 041220 gepr. Benennung Grundgerät AAT Alber Antriebstechnik GmbH V-MAX2 Ehestetter Weg 11 Zeichnungsnummer D-72458 Albstadt Tel.: 07431/1295-0 P1605 Fax: 07431/1295-36 Zust. Änderung Datum Name www.aat-online.de Ers. für Drive unit...

  • Page 13: Accessories

    4 11 Accessories NOTE - Only use AAT Alber Antriebstechnik GmbH accessories. Bracket Additional battery pack Anti-tip supports Motor vehicle voltage converter 12 V / 230 V Quick-release wheels with drum brake Battery kit Lead gel or battery kit lithium-ion...

  • Page 14: Installation

    Installation 5 1 Quick-release wheels DANGER - Quick-release wheels must lock into place, as they may become detached unexpectedly! If the original wheelchair wheels are still on the wheelchair, remove them and fi t the pair of wheels with gear rim included in the scope of delivery of the V-MAX Position the drive wheel and Adapt wheel.
  • Page 15 Detach the Velcro on the bat- Place the battery pack in the Insert the interface pre-mount- tery pack pre-mounted on the battery bag and fi x with Vel- ed on the wheelchair into the wheelchair. cro. battery pack’s charging sock- Battery indicator only for lithium-ion battery pack Check the battery pack Yellow = low...

  • Page 16: Drive Unit

    Manufacturer’s information: The width of the width adjustment has been adjusted especially for your wheelchair. If you have any questions or need to make any changes, please contact your authorised specialised dealer, the AAT field team or the manufacturer. Activate the parking brakes to Manufacturer’s recommen-...

  • Page 17: Operating And Pushing Handle

    WARNING - Check the anti-tip supports before initial operation to ensure safety! If anti-tip supports are not available on your wheelchair as standard, use AAT anti-tip supports in pairs! The wheelchair bracket determines which anti-tip supports you require. Option 1: Bracket with locking bolts Observe the "R"...

  • Page 18: Starting Up

    Option 2: Bracket with locking pin Observe the "R" + "L" mark- Press in the locking pin but- Push the anti-tip support into ton and pull it out. the bracket and secure with ings! Repeat process on the the locking pin. other side.

  • Page 19: Turning On The Device

    WARNING - When driving on public roads, observe the road traffic regulations! WARNING - Always operate with both hands to be able to react appropriately to dangerous situations. WARNING - Never reach into rotating/moving parts to avoid crushing. WARNING - If the drive elements become blocked or when the driving behaviour has been altered, switch off immediately and do not use it! V-MAX...

  • Page 20: Riding With The V-Max 2

    6 2 Riding with the V-MAX Battery indicator Green: 60 - 100 % Yellow: 20 - 40 % Red: 0 - 20 % After switching on, the bat- The charge level is dis- Green = battery full tery indicator updates itself played in 20 % increments.

  • Page 21: Overcoming Obstacles

    Driving with the touch rocker Press the touch rocker in the Press the touch rocker in the The direction can be changed desired direction of travel. desired direction of travel. while driving. » End of handle = forward! » Start of handle = backward! »...

  • Page 22: Deactivating The Drive

    6 4 Deactivating the drive Switch off If required: Turn the release switch com- V-MAX2 Press the ON/OFF switch. » Insert the handles back into pletely to the left. the corresponding mounts. » Drive shafts retract. 6 5 Immobiliser / protection against unauthorised use To protect the from unauthorised use, apply the integrated immobiliser.

  • Page 23: Removal

    Removal Removing the battery pack Carry out the steps listed in the chapter "Battery pack" in reverse order. Please note that the fl ight mode (crossed out lightning) must be established for the lithium-ion battery pack if it is being transported. Loosen the screws.

  • Page 24: Transportation

    Care and maintenance WARNING - Repairs and technical safety tests are performed by the manufacturer, the AAT field staff or the authorised specialist shop! NOTE - Perform a visual inspection prior to each start-up! If parts are visibly defective or miss- ing, contact the authorised specialist shop or the manufacturer! NOTE - It is recommended to perform a technical safety test every two years.

  • Page 25: Battery Pack And Charger

    9 1 Battery pack and charger WARNING - Never short-circuit or connect the poles of the battery pack to avoid electric shocks! CAUTION - During the charging procedure, ensure that cables are laid safely to avoid tripping over them! CAUTION - Do not attempt to repair or bypass defective fuses to avoid electric shocks! CAUTION - Protect against moisture to avoid electric shocks! NOTE - Never carry the charger by the charging cable/charging line.
  • Page 26 LED green = battery full LED orange = battery is Check the capacity of the approx. 8 hours charging battery pack (refer to chapter "Battery pack"). Charging the lithium-Ion battery pack in a motor vehicle Deactivate the (re- Unplug the interface. Remove the battery pack.
  • Page 27 Check the capacity of the LED orange = battery is battery pack (refer to chapter charging. "Battery pack"). Charging the lead gel battery pack Deactivate the (re- Unplug the interface. Connect the charger. V-MAX fer to chapter "Deactivating » The battery pack can stay the drive").
  • Page 28 Charging the lead gel battery pack in a motor vehicle Deactivate the (re- Unplug the interface. Remove the battery pack. V-MAX fer to chapter "Deactivating » Open Velcro and remove the drive"). battery pack. » Connect charger to battery pack. Connect voltage converter...
  • Page 29 Information on the charger Note - Observe the manufacturer’s information in the charger’s user manual! Charger Charger Possible error V-MAX V-MAX » Lithium-ion battery pack » Lead gel battery pack LED does not light up. » Battery capacity 16 Ah. »...

  • Page 30: Cleaning And Disinfection

    9 2 Cleaning and disinfection WARNING - No moisture must be allowed to enter the interior of the device! This may result in electric shocks! Use only damp cloths for cleaning the device’s surface! Never use wet cloths! WARNING - Test all safety-relevant functions after cleaning! WARNING - Do not smoke during cleaning! NOTE - Keep away from sources of ignition!

  • Page 31: Disposal

    After expiry of the natural service life, you can V-MAX return these components to AAT Alber Antriebstechnik GmbH or their specialist dealers for disposal. On this product you will find the symbol of the "crossed out dustbin"...

  • Page 32: Long-Term Storage

    9 5 Technical safety testing NOTE - Technical safety tests may only be performed by the manufacturer, the AAT field staff or the authorised specialist shop. NOTE - It is recommended to perform a technical safety test every two years. The inspection plate provides information about the latest date.

  • Page 33: Reuse (Change In Operator)

    9 6 Reuse (change in operator) The term reuse is used when the AAT product of patient X is to be used for another patient Y. In addition, there is a reuse when a patient receives a different wheelchair and therefore requires new add-on parts.

  • Page 34: 10 Status Information

    10 Status information Possible colours: Green = fully operational Flashing orange = warning Flashing red = fault Alternating green/red = immobiliser activated The status indicator LED is flashing. 10 1 Warnings If warning limits are exceeded, the driving speed is reduced. This is additionally signalled by an introductory beep.

  • Page 35: Troubleshooting

    Change of tyres: Lifting and fitting the tyre cover must be carried out using the appropriate mounting levers (bicycle accessories). Do not use screwdrivers or other pointed objects as levers. For queries, notify the manufacturer, the AAT field service, the authorised spe- cialist dealer.

  • Page 36: 11 Warranty And Liability

    For the battery pack, always assuming correct care and maintenance, AAT Alber Antriebstechnik GmbH grants a warranty of six months from the date of purchase. The warranty on the...
  • Page 37 Notes...
  • Page 38 Notes...
  • Page 39 Ideen bewegen mehr EU Declaration of Conformity AAT Alber Antriebstechnik GmbH · Postfach 10 05 60 · D-72426 Albstadt · Tel.: 0 74 31.12 95-0 · Fax: 12 95-35 · www.aat-online.de · info@aat-online.de Translation of the Original EU Declaration of Conformity...
  • Page 40 AAT Alber Antriebstechnik GmbH Postfach 10 05 60 72426 Albstadt · Germany Phone: +49.(0) 74 31.12 95-0 Fax: +49.(0) 74 31.12 95-35 info@aat-online.de · www.aat-online.de Serial number:...
