Summary of Contents for AAT s-max D1601

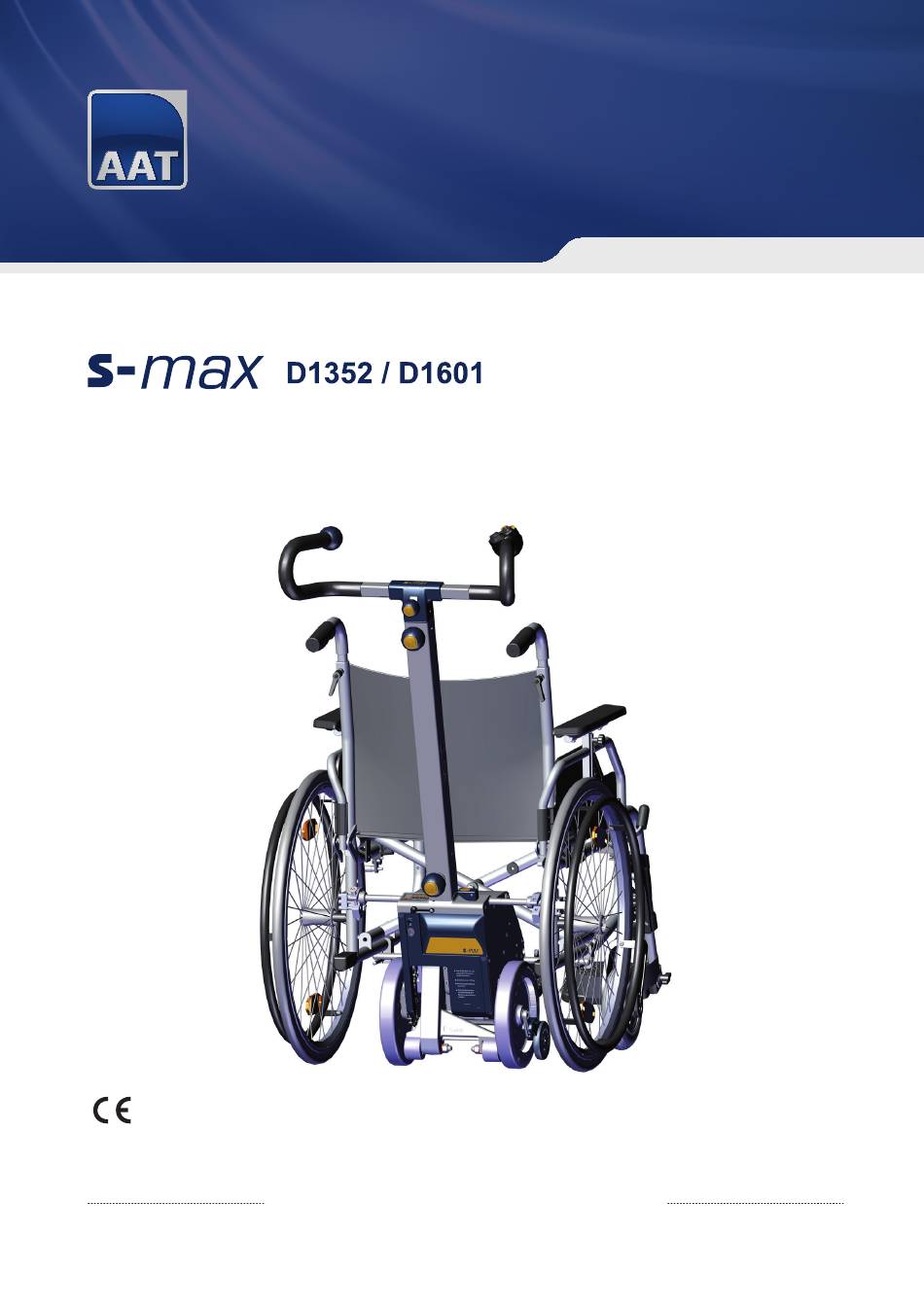

- Page 1 Ideen bewegen mehr www aat-online de Translation of the original user manual 2018-03 (1.1)
- Page 2 Customer service at its best Spare parts Show room & exhibition devices With our professional service concept AAT proves once again its superior Repairs processing Re-use quality standards and offers its clients an Technical advice ...
- Page 3 EC Directive 2006/42/EC, 2007/47/EC and 93/42/EC. If any alteration is made to s-max without the prior agreement of AAT Alber Antriebstechnik GmbH, this declaration shall no longer be valid. This statement is valid only for the products with the following article numbers: 300680 and 300424.
-
Page 4: Table Of Contents
Table of contents Symbols and safety instructions Explanation of the symbols on the packaging Explanation of the symbols on the device Product description Device overview ..........8 Indication and intended use . -
Page 5: Symbols And Safety Instructions
Stability tests were performed under laboratory conditions. S-max can behave differently under real conditions compared to laboratory tests. Training may only be carried out by the manufacturer, the AAT field staff or the qualified specialist shop. CAUTION External heat sources may cause the surface temperature to rise (e.g. sunlight)! -
Page 6: Explanation Of The Symbols On The Packaging
WARNING To avoid being crushed, never reach into rotating/moving parts! DANGER s-max must not be operated in the case of severe visual impairment and/or blindness! Do not exceed the total permissible weight and the maximum person weight, as this may lead to defects or an overloading of the s-max! Do not use in rain, wet, snow or ice as the restricted braking capacity may cause slipping! Do not use on travellators or escalators as doing so may risk physical injury and/or material damage... -
Page 7: Explanation Of The Symbols On The Device
2007/47/EC and 93/42/EC Product serial number e. g. D1352XXXXXX / D1601XXXXXX Note on the user manual The user manual must be observed www.aat-online.de 24 V - Electrical voltage / V = Volt Inspection plate for technical safety testing (see Chapter 8 6) -
Page 8: Product Description
Product description 4.1 Device overview... - Page 9 Manufacturer’s information: For a simplifi ed assignment of the individual components, the numbers listed here are cited in full for the fi rst time in the following chapters. Control unit Handle, adjustable ON/OFF switch UP/DOWN switch Speed control Safety chip Fixing knob for transverse adjustment Fixing knob for height adjustment Standpipe...
-
Page 10: Indication And Intended Use
4.2 Indication and intended use With the stair climber s-max you can transport one person with limited mobility safely and effortlessly up and down stairs in their own wheelchair . You can conquer nearly all kinds of stairs and spiral stairs, whether they are inside or outside. -
Page 11: Technical Data
WARNING - Do not exceed the total permissible weight and the maximum person weight, as this may lead to defects or an overloading of the s-max! NOTE - Observe the technical data. s-max D1352 s-max D1601 Technology Height = min. 1150 mm - max. 1550 mm Height = min. 1150 mm - max. 1550... -
Page 12: Dimensional Drawing
In Bearbeitung >315-1000 ±0,8 Datum Name Baugruppe Artikelnummer bearb. 09.02.2018 Kramer 034466 gepr. Benennung s-max kpl. 135kg AAT Alber Antriebstechnik GmbH 135kg-Ufo-Motor Ehestetter Weg 11 D-72458 Albstadt Zeichnungsnummer Tel.: 07431/1295-0 D1352 Fax: 07431/1295-36 Zust. Änderung Datum Name www.aat-online.de Ers. für... -
Page 13: Scope Of Delivery
Climbing unit Handle unit Battery pack with charging electronics and safety latch Charger incl. user manual 4.7 Accessories NOTE - Only use AAT Alber Antriebstechnik GmbH accessories. + 15 mm Anti-tilt supports Bracket Charging cable for your vehicle Climbing height extension... -
Page 14: Assembly
WARNING - The handle unit must be securely fixed with the locking screw so it is safely connected to the climbing unit! WARNING - the climbing unit attachment may only be set by the manufacturer, the AAT field team or authorised specialist dealers! A 9-pin sub-D coupling in the attachment establishes the electrical connection. -
Page 15: Start-Up
Start-up NOTE - Store s-max in a frost-free environment at least one hour prior to start-up to avoid malfunctions. NOTE - Wait a few seconds after turning on before pressing the UP/DOWN switch! 6.1 Adjusting the handles to the correct height WARNING - Always securely fix the handle with a locking screw so the handle setting does not change unexpectedly! CAUTION - To avoid injury, beware of pinch points at the groove opening! -
Page 16: Turning On The Device
6.3 Turning on the device Insert safety chip for the Turn s-max engine immobiliser. pressing ON/OFF » Safety chip must latch! switch 6.4 Neutral position Bring climber into Correct. Wrong! neutral position by pressing the UP/DOWN switch. » If single step mode (see... -
Page 17: Checking The Safety Brakes
6.5 Checking the safety brakes DANGER - Do not use the s-max if the required braking effect (on one side or both sides) is not guaranteed because a reduced braking effect can lead to falling down the stairs. Contact the manufacturer or your authorised dealer! WARNING - Check safety brakes without an occupant! Manufacturer’s... -
Page 18: Comfortstep
6.7 ComfortStep NOTE - If an adjustment of the height of the step is required, please contact the ATT fi eld staff or your authorised dealer! Manufacturer’s information: Every time turn on the device, the last used setting will be reproduced. -
Page 19: Attaching S-Max To The Wheelchair
NOTE - The wheelchair must be fitted with a bracket to operate it with the s-max. The bracket system is attached by the authorised dealer, AAT Alber Antriebstechnik GmbH or the AAT field team. There is an upper and lower There are adjusting rings mount on the s-max. -
Page 20: Inserting S-Max Into The Lower Wheelchair Bracket
7.1 Inserting s-max into the lower wheelchair bracket Activate the parking brakes to Fully retract s-max Tilt the s-max backwards prevent the wheelchair from climber. slightly and move it towards rolling away. the back of the wheelchair. Push the s-max forwards until the lower mount is retracted into the lower mount on the wheelchair up to the stop. -
Page 21: Fixing S-Max Onto The Wheelchair
If the rod is retracted right Let go of the UP/DOWN at the top in the bracket, the switch once the wheelchair wheelchair is raised with it. wheels are lifted 1 cm from the fl oor. 7.3 Fixing s-max onto the wheelchair Pick up one of the safety Insert the safety pin into Repeat process on the other... -
Page 22: Removing S-Max From The Wheelchair
7.5 Removing s-max from the wheelchair Press the UP/DOWN switch Let go of the UP/DOWN switch Put the wheelchair wheels on upwards so that the climber as soon as the wheelchair is and apply the parking brake. moves backwards, down raised far enough to fit the towards the operator. -
Page 23: Operation
Operation DANGER - Operation only by a trained person who is physically and mentally able to safely operate the s-max! DANGER - Other persons are not allowed to be in the danger area underneath the s-max! DANGER - Check safety brakes before each use! (see Chapter 6.5) WARNING - Wear non-slip footwear to avoid falling down the stairs! WARNING –... -
Page 24: Position Of The Occupant
8.1 Position of the occupant WARNING - The occupant’s arms should not hang over the arm rests to avoid possible injuries! Turn on s-max by pressing Secure stand of the s-max Ensure that the occupant is the ON/OFF switch. Press the UP/DOWN switch sitting safely after taking their direction UP. -
Page 25: Drive On Level Ground / Overcoming Obstacles
8.2 Drive on level ground / overcoming obstacles NOTE - The climber may not be extended because could get damaged! NOTE - Always navigate obstacles backwards to avoid damaging the safety brakes! Set in neutral position (see To drive on level ground. Pull s-max carefully... -
Page 26: Operation On A Slope
8.4 Operation on a slope WARNING - For safety reasons we recommend that you ask another person for assistance when driving on a slope! NOTE - Observe the safety instructions in Chapter 8! When necessary Pull out the Tilt the s-max forward. Climber must fully... -
Page 27: Climbing - Upstairs
8.5 Climbing - upstairs NOTE - Observe the safety instructions in Chapter 8! Set in neutral position. Tilt the s-max and keep it Drive backwards to the step » Climber must fully balanced. all the way. retracted. Go 2-3 steps up. Press UP/DOWN switch... -
Page 28: Climbing - Downstairs
8.6 Climbing - downstairs NOTE - Observe the safety instructions in Chapter 8! DANGER -As soon as the climber takes on weight, you can feel tension in the handles. Hold the s-max lower briefl y to counteract this! Set in neutral position. Tilt the s-max and keep it Roll s-max forward until the »... -
Page 29: Laying The Device Down On The Stairs / Emergency Stop Function
8.7 Laying the device down on the stairs / emergency stop function Lay down the s-max Emergency stop function » Safety brakes prevent from rolling down! In hazardous situations follow the next steps: » Keep the UP/DOWN switch » 1 - Release the UP/DOWN switch pressed until the climber is »... -
Page 30: Transportation
8.9 Transportation WARNING - Please note the weight specifi cations of the several components! (see Chapter 4.4) WARNING - During transportation in vehicles, secure according to the relevant legal regulations! CAUTION - Turn off the s-max while transporting! Manufacturer’s recommendation: batteries considered dangerous goods according to the IATA special... -
Page 31: Battery Pack And Charger
9.1 Battery pack and charger CAUTION - Protect against humidity and never touch it with moist hands. This prevents electrical shocks as well as malfunctions! NOTE - Charge the battery pack after each use. NOTE – Protect charger and the voltage converter from oils, greases, aggressive cleaning agents, thinners or damage. - Page 32 Manufacturer’s recommendation: The charger automatically switches into trickle charge mode once the battery pack is fully charged. A trickle charge mode keeps the battery pack at the optimum level as long as it is connected to the charger. The LED glows green during the trickle charge mode.
-
Page 33: Check The Brake And Climbing Feet Linings
AAT field service or authorised personnel! NOTE - If the foot lining is worn or broken, please have both climbing feet replaced by the manufacturer, AAT field service or your authorised dealer! Check the brake lining of the Please... -
Page 34: Replacing Fuses
NOTE – You may not mend or by-pass a damaged fuse! Always replace it with an identical one of the same amperage (30 A )! Replacement fuses are available from the manufacturer! NOTE - Should your fuses burn out frequently, please contact the AAT Alber Antriebstechnik GmbH or your authorised dealer! -
Page 35: Technical Safety Testing
9.6 Re-use (change of operator) A re-use is referred, if the AAT product of patient X is transmitted to patient Y. Please contact the manufacturer, the AAT field staff or the authorised specialist shop. -
Page 36: Long-Term Storage
9.8 Long-term storage If the s-max will be stored for a longer period of time (e.g. for a few months), please ensure the following: » No moisture must be allowed to enter the interior of the device! » Store s-max in a dry place with low relative humidity. If necessary, protect with foils! »... - Page 37 Yes: Charge the batteries. Is the problem still present? Yes: Contact the manufacturer, AAT field service or the authorised dealer. Is the safety chip for the engine immobiliser inserted? s-max is not moving Yes: Contact the manufacturer, AAT field service or the authorised dealer.
- Page 38 » Operation of the s-max exceeding the total weight approved or the max. weight approved of the occupant. » s-max was not serviced periodically (in a regular 2-year cycle) by the manufacturer, the AAT field staff oran authorised specialist dealer.
- Page 39 Notes:...
- Page 40 AAT Alber Antriebstechnik GmbH Postfach 10 05 60 · 72426 Albstadt · Germany Phone: +49 (0) 74 31 12 95-0 Fax: +49 (0) 74 31 12 95-35 info@aat-online.de · www.aat-online.de Serial number:...
