- Page 1 Ideen bewegen mehr www aat-online de Translation of the original user manual 2018-03 (1.1)
- Page 2 Customer service at its best Spare parts Show room & exhibition devices With our professional service concept AAT proves once again its superior Repairs processing Re-use quality standards and offers its clients an Technical advice ...
- Page 3 CE declaration of conformity The company AAT Alber Antriebstechnik GmbH hereby declares that the s-max sella complies with the relevant provisions of EC Directive 2006/42/EC, 2007/47/EC and 93/42/EC. If any alteration is made to s-max sella without the prior agreement of AAT Alber Antriebstechnik GmbH, this declaration shall no longer be valid.
-
Page 4: Table Of Contents
Inhaltsverzeichnis Symbols and safety instructions Explanation of the symbols on the packaging Explanation of the symbols on the device Product description Device overview ..........8 Indication and intended use . -
Page 5: Symbols And Safety Instructions
Stability tests were performed under laboratory conditions. s-max sella can behave differently under real conditions compared to laboratory tests. Training may only be carried out by the manufacturer, the AAT field staff or the qualified specialist shop. CAUTION External heat sources may cause the surface temperature to rise (e.g. sunlight)! -
Page 6: Explanation Of The Symbols On The Packaging
WARNING To avoid being crushed, never reach into rotating/moving parts! DANGER s-max sella must not be operated in the case of severe visual impairment and/or blindness! Do not exceed the total permissible weight and the maximum person weight, as this may lead to defects or an overloading of the s-max sella! Do not use in rain, wet, snow or ice as the restricted braking capacity may cause slipping! Do not use on travellators or escalators as doing so may risk physical injury and/or material damage... -
Page 7: Explanation Of The Symbols On The Device
2007/47/EC und 93/42/EC Product serial number e. g. D1353XXXXXX / D1603XXXXXX Note on the user manual The user manual must be observed www.aat-online.de 24 V - Electrical voltage / V = Volt Inspection plate for technical safety testing (see Chapter 8 6) -
Page 8: Product Description

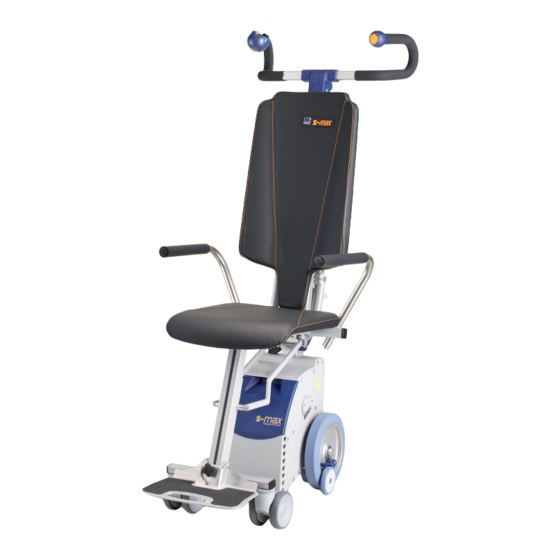

Product description 4.1 Device overview... - Page 9 Manufacturer information: For a simplifi ed assignment of the individual components, the numbers listed here are cited in full for the fi rst time in the following chapters. Control unit Handle, adjustable Main wheel Armrests (can be folded away) Climbers and climbing feet Safety brake Battery display Single step switch...
-
Page 10: Indication And Intended Use
4.2 Indication and intended use With the stair climber s-max sella you can transport one person with limited mobility safely and effortlessly up and down stairs. You can conquer nearly all kinds of stairs and spiral stairs, whether they are inside or outside. Driving on slopes is also possible. The stair climber is developed to be operated by one person. -
Page 11: Technical Data
WARNING - The approved total weight may not be exceeded because it can lead to malfunction or cause an overload of the s-max sella! NOTE - Observe the technical data. s-max sella D1353 s-max sella D1603 Technology Height = min. 1150 mm - max. 1550 Height = min. -
Page 12: Dimensional Drawing
In Bearbeitung >315-1000 ±0,8 Datum Name Baugruppe Artikelnummer 031942 bearb. 26.01.2018 Kramer gepr. Benennung s-max sella kpl. 135kg AAT Alber Antriebstechnik GmbH 135kg-Ufo-Motor Ehestetter Weg 11 Zeichnungsnummer D-72458 Albstadt Tel.: 07431/1295-0 D1353 Fax: 07431/1295-36 Zust. Änderung Datum Name www.aat-online.de Ers. für... -
Page 13: Scope Of Delivery
Charger incl. user manual Battery pack with charging electronics and safety latch Seat/handle unit Climbing unit 4.7 Accessories HINWEIS - Only use AAT Alber Antriebstechnik GmbH accessories. + 15 mm Head rest Charging cable for your vehicle Arm rests extended... -
Page 14: Assembly
WARNING - The seat/handle unit must be securely fixed with the locking screw so it is safely connected to the climbing unit! WARNING - the climbing unit attachment may only be set by the manufacturer, the AAT field team or authorised specialist dealers! A 9-pin sub-D coupling in the attachment establishes the electrical connection. -
Page 15: Using Armrests
5.3 Using armrests Important information for using the arm rests The armrests are used as side confi nements and may be used as an arm support by the occupant. » They must not be loaded with more than 90 kg per side! »... -
Page 16: Folding And Unfolding
Folding and unfolding DANGER - Lock the seat/handle unit, otherwise parts may move involuntarily! WARNING - Watch out for pinch points while folding or unfolding! 6.1 Unfolding the seat/handle unit Pull the seat cushion against Fold the seat unit downwards Fold out the foot rest the backrest cushion. -
Page 17: Start-Up
Start-up NOTE - Store s-max sella in a frost-free environment at least one hour prior to start-up to avoid malfunctions. NOTE - Wait a few seconds after turning on before pressing the UP/DOWN switch! 7.1 Adjusting the handles to the correct height WARNING - Always securely fix the handle with a locking screw so the handle setting does not change unexpectedly! CAUTION - To avoid injury, beware of pinch points at the groove opening! -
Page 18: Turning On The Device
7.2 Turning on the device Insert safety chip for the Turn on s-max sella by engine immobiliser. pressing ON/OFF » Safety chip must latch! switch 7.3 Neutral position Bring climber into the Correct. Wrong! neutral position by pressing the UP/DOWN switch »... -
Page 19: Checking The Safety Brakes
7.4 Checking the safety brakes DANGER - Do not use the s-max sella if the required braking effect (on one side or both sides) is not guaranteed because a reduced braking effect can lead to falling down the stairs. Contact the manufacturer or your authorised dealer! WARNING - Check safety brakes without an occupant! Manufacturer’s... -
Page 20: Comfortstep
7.6 ComfortStep NOTE - If an adjustment of the height of the step is required, please contact the AAT fi eld staff or your authorised dealer! Manufacturer’s information: Every time turn on the device, the last used setting will reproduced. -
Page 21: Operation
Operation DANGER - Operation only by a trained person who is physically and mentally able to safely operate the s-max sella! DANGER - Other persons are not allowed to be in the danger area underneath the s-max sella! DANGER - Check the safety brakes each time before each use! (see Chapter 7.4) WARNING - Wear non-slip footwear to avoid falling down the stairs! WARNING –... -
Page 22: Position Of The Occupant
8.1 Position of the occupant WARNING - The occupant’s arms should not hang over the arm rests to avoid possible injuries! Turn on s-max sella by Secure stand of the s-max rests pressing the ON/OFF switch. sella extended or folded backwards Press the UP/DOWN switch if required. -
Page 23: Drive On Level Ground / Overcoming Obstacles
8.2 Drive on level ground / overcoming obstacles NOTE - The climber may not be extended because could get damaged! NOTE - Always navigate obstacles backwards to avoid damaging the safety brakes! Set in neutral position (see To drive on level ground. Pull the s-max sella carefully Chapter 7.3) »... -
Page 24: Operation On A Slope
8.4 Operation on a slope WARNING - For safety reasons we recommend that you ask another person for assistance when driving on a slope! NOTE - Observe the safety instructions in Chapter 8! When necessary Pull out the Tilt the s-max sella forward. Climber must fully... -
Page 25: Climbing - Upstairs
8.5 Climbing - upstairs NOTE - Observe the safety instructions in Chapter 8! Set in neutral position. Tilt the s-max sella and keep Drive backwards to the step » Climber must fully it in balance. all the way. retracted. Go 2-3 steps up. Press UP/DOWN switch... -
Page 26: Climbing - Downstairs
8.6 Climbing - downstairs NOTE - Observe the safety instructions in Chapter 8! DANGER -As soon as the climber takes onweight, you can feel tension in the handles. Hold the s-max sella lower briefl y to counteract this! Set in neutral position. Tilt the s-max sella and keep Roll the s-max sella forward »... -
Page 27: Laying The Device Down On The Stairs / Emergency Stop Function
8.7 Laying the device down on the stairs / emergency stop function Lay down the s-max sella Emergency stop function » Safety brakes prevent from rolling down! In hazardous situations follow the next steps: » Keep the UP/DOWN switch » 1 - Release the UP/DOWN switch pressed until the climber is »... -
Page 28: Transportation
8.9 Transportation WARNING - Please note the weight specifi cations of the several components! (see Chapter 4.4) WARNING - During transportation in vehicles, secure according to the relevant legal regulations! CAUTION - Turn off the s-max sella while transporting! Manufacturer’s recommendation: batteries considered... -
Page 29: Battery Pack And Charger
9.1 Battery pack and charger CAUTION - Protect against humidity and never touch it with moist hands. This prevents electrical shocks as well as malfunctions! NOTE - Charge the batteries after each use. NOTE – Protect charger and the voltage converter from oils, greases, aggressive cleaning agents, thinners or damage. - Page 30 Manufacturer’s recommendation: The charger automatically switches into trickle charge mode once the battery pack is fully charged. A trickle charge mode keeps the battery pack at the optimum level as long as it is connected to the charger. The LED glows green during the trickle charge mode.
-
Page 31: Check The Lining Of The Brakes And The Climbing Feet
NOTE - Minimum thickness for brake lining = 1 mm. Should the lining be thinner or damaged, contact the manufacturer, AAT field service or authorised personnel! NOTE - If the foot lining is worn or broken, please have both climbing feet replaced by the... -
Page 32: Replacing Fuses
NOTE – You may not mend or by-pass a damaged fuse! Always replace it with an identical one of the same amperage (30 A)! Replacement fuses are available from the manufacturer! NOTE - Should your fuses burn out frequently, please contact the AAT Alber Antriebstechnik GmbH or your authorised dealer! -
Page 33: Safety Check
9.6 Re-use (change of operator) A re-use is referred, if the AAT product of patient X is transmitted to patient Y. Please contact the manufacturer, the AAT field staff or the authorised specialist shop. -
Page 34: Long-Term Storage
9.8 Long-term storage If the s-max sella will be stored for a longer period of time (e.g. for a few months), please ensure the following: » Protect the device from rain or moisture! » Store s-max sella in a dry place with low relative humidity. If necessary, protect with foils! »... - Page 35 Yes: Charge the batteries. Is the problem still present? Yes: Contact the manufacturer, AAT field service or the authorised dealer. Is the safety chip for the engine immobiliser inserted? s-max sella does not drive Yes: Contact the manufacturer, AAT field service or the authorised dealer.
-
Page 36: Warranty And Liability
» Operation of the s-max sella exceeding the total weight approved or the max. weight approved of the occupant. » s-max sella was not serviced periodically (in a regular 2-year cycle) by the manufacturer, the AAT field staff or an authorised dealer. - Page 37 Notes:...
