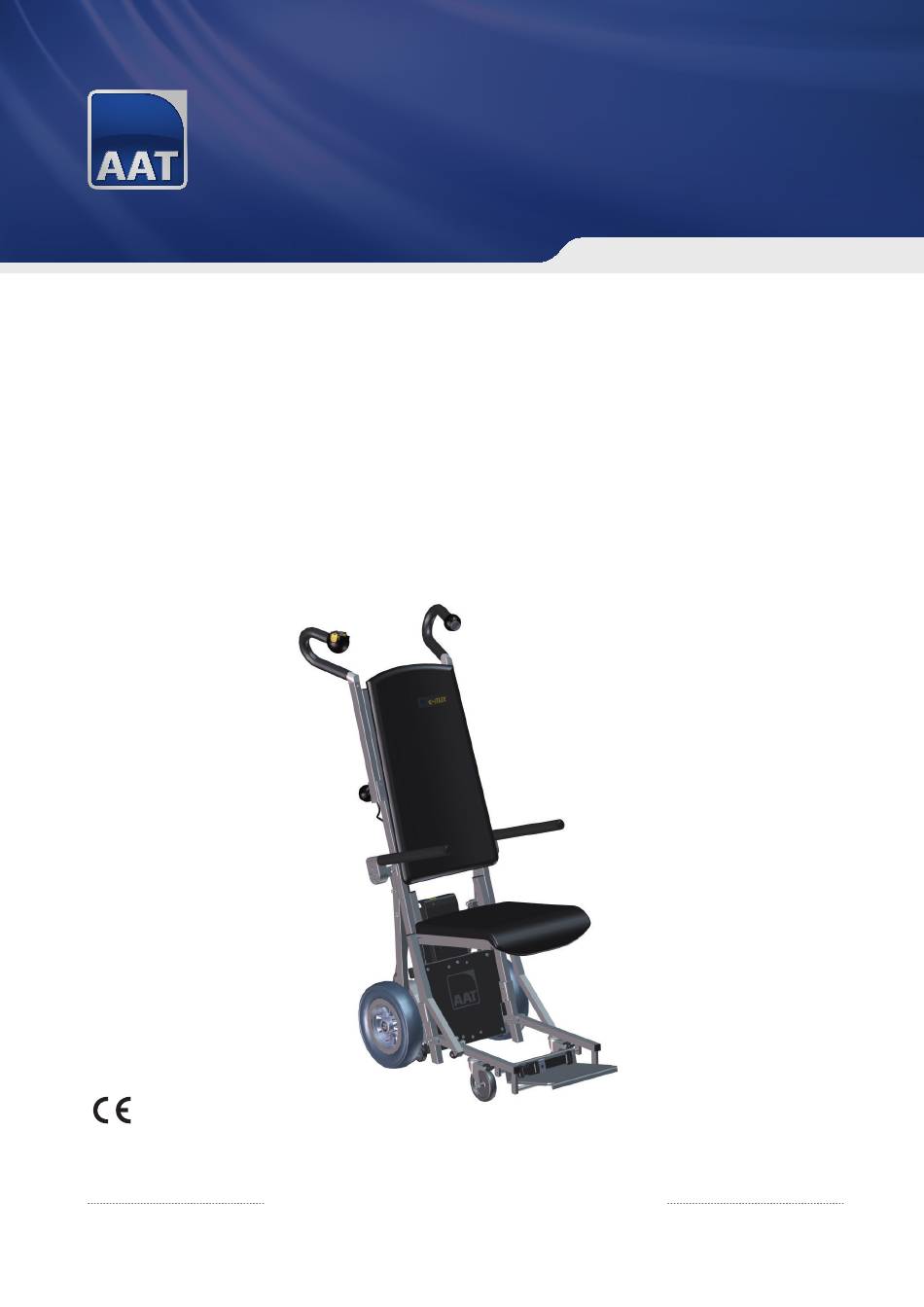

- Page 1 Ideen bewegen mehr www.krankentransport.online c-max C1612 Translation of the original user manual 2023-02 (6.1)
- Page 2 Showroom & exhibition devices With our professional service concept we Repair processing Re-use at AAT prove once again our high claim of quality and off er our clients an all-in- Technical information Complaints clusive package.
- Page 3 You will also fi nd all safety-relevant changes that have been made to the user manu- al on our homepage. These versions with details of the production period are obtainable at: www.aat-online.de/de/bda/c-max-u2...
-
Page 4: Table Of Contents
Table of Contents Symbols and safety instructions Explanation of the symbols on the packaging Explanation of the symbols on the device Product description Device overview..........9 Type plate incl. -
Page 5: Symbols And Safety Instructions
Stability tests were performed under laboratory conditions. The c-max U2 may behave differently under real conditions compared to laboratory tests. Training may only be carried out by the manufacturer, the AAT field staff or the qualified specialist shop. CAUTION External heat sources may cause the surface temperature to rise (e.g. sunlight)! -
Page 6: Explanation Of The Symbols On The Packaging
DANGER The c-max U2 must not be operated in the case of severe visual impairment and/or blindness! Do not exceed the total permissible weight and the max. person weight, as this may lead to defects or an overload the c-max U2. Do not use in rain, wet conditions, snow or black ice to avoid slipping due to the reduced braking effect! Do not use on escalators or travellators to avoid injuries from falling, the occupant tipping out and... -
Page 7: Explanation Of The Symbols On The Device
Position: Type plate Indicates the year the medical device was manufactured. 20XX Manufacturer Position: Type plate Shows the manufacturer of the medical device (AAT Alber Antriebstechnik GmbH) Position: Type plate Serial number of the product e.g. C1612XXXXXX Medical Device Position: Type plate... - Page 8 Adhesive label UP/DOWN Position: UP/DOWN switch on the control panel Refers to the direction of travel (refer to chapter "Climbing stairs upwards and downwards") Adhesive label Note - No handle Position: C part, below seat, rear side of drive unit DANGER Parts in motion Adhesive label Risk of crushing...
-
Page 9: Product Description
Product description 4.1 Device overview Control panel Handle, height-adjustable Armrest, swivelling and adjustable in width Footrest, foldable with foot strap C part with seat Carrying rods (only available if ordered in advance - optional accessory) Lever with chain drive Climbing leg with climbing foot Safety brake Climbing unit Battery pack with lock... - Page 10 Manufacturer’s information: For a simplifi ed assignment of the individual components, the numbers listed here are cited in full for the fi rst time in the follow- ing chapters. ON/OFF switch UP/DOWN switch Safety chip Speed control Locking knob for handle Release button for seating unit Wheel Castors...
-
Page 11: Type Plate Incl. Serial Number
4.2 Type plate incl. serial number Product / Model Barcode (refer to chapter 3) Max. load Serial number (refer to chapter 3) Batteries Symbols (refer to chapter 3) Charging voltage Manufacturer address Operating voltage Rated power of motor 4.3 Intended purpose The stair climbers are guided manually and are operated by an operator. -
Page 12: Medical Requirements And Indication
4.5 Medical requirements and indication The patients must be able to sit independently. Secure persons who cannot sit upright unaided with belts (refer to accessories) to prevent the occupant from falling out! The manually guided stair climber assists the accompanying person while transporting the patient over stairs or slopes, upwards and downwards. -
Page 13: Technical Data
WARNING - Do not exceed the total permissible weight and the max. person weight, as this may lead to defects or an overload the c-max U2. NOTE - Observe the technical data. c-max U2 C1612 Technology Dimensions Refer to chapter "Dimensional drawing"... -
Page 14: Dimensional Drawing
In Bearbeitung >315-1000 ±0,8 Datum Name Baugruppe Artikelnummer Kramer 034911 bearb. 02.02.2021 gepr. Benennung C1612 AAT Alber Antriebstechnik GmbH c-max U2 160kg Ehestetter Weg 11 D-72458 Albstadt Zeichnungsnummer Tel.: 07431/1295-0 C1612 Fax: 07431/1295-36 Zust. Änderung Datum Name www.aat-online.de Ers. für... -
Page 15: Scope Of Delivery
4.10 Scope of delivery Charger incl. instructions and splash guard Battery pack c-max U2 4.11 Accessories NOTE - Only use AAT Alber Antriebstechnik GmbH accessories. Headrest Charging cable for vehicle Lap belt Shoulder harness incl. lap belt Climbing height extension... -
Page 16: Unfolding And Folding
Unfolding and folding 5.1 Seating unit DANGER - Lock the seating unit and footrest, otherwise they can move instantly. WARNING - Watch out for pinch points when folding and unfolding! Unlock the folding mecha- Press the C part with the seat Fold out the footrest nism. -
Page 17: Armrests
5.3 Armrests DANGER - The armrests must not be loaded only on one side as there is a risk of tipping over! DANGER - Do not attach any objects (such as bags) to the armrests. Risk of tipping over! WARNING - Never sit on the armrests or use them as carrying handles as they are not de- signed for this purpose. -
Page 18: Adjusting The Handles
6.1 Adjusting the handles WARNING - The handles must have been securely fixed with the locking screws so that the handle adjustment does not change instantly! CAUTION - Watch out for the pinch point at the groove opening to avoid injuries! Turn the locking screws Pull the handles out to... -
Page 19: Switching On The Device
6.3 Switching on the device Insert the safety chip Switch the c-max U2 on via the ON/OFF switch the immobiliser. » The safety chip must snap 6.4 Neutral position Move the climbing legs Incorrect! to neutral position by keep- ing the UP/DOWN switch pressed. -
Page 20: Checking The Safety Brakes
DANGER - If there is only a one-sided braking eff ect or no braking eff ect, do not use the c-max U2, to avoid falling from the stairs. Notify the manufacturer, the AAT fi eld service, or the author- ised specialist dealer! -
Page 21: Comfortstep
6.7 ComfortStep NOTE - If an adjustment of the step height is to be made, please contact the AAT fi eld service or an authorised specialist dealer! Manufacturer’s infor- mation: Each time the device is switched on again, the memory function plays... -
Page 22: Occupant Taking A Seat
Occupant taking a seat Secure stand of the c-max Occupant taking a seat. Switch on the c-max U2 via the ON/OFF switch. » Ensure secure sitting. Operate UP/DOWN » Rest arms on the thighs or armrests. switch in the UP direction. »... -
Page 23: Operation
Operation DANGER - Operation only by a trained person who is physically and mentally capa- ble of operating the c-max U2 safely! When used with carrying rods (optional accessory), a second person can serve as a safeguard during use. DANGER - No persons (other than the person providing protection by the carrying rods) may be in the danger zone below the c-max U2! DANGER - Check the safety brakes before each use! (Refer to chapter 6.5) WARNING - Wear anti-slip footwear to avoid slipping on the stairs. -
Page 24: Moving On Level Ground / Overcoming Obstacles
8.1 Moving on level ground / overcoming obstacles NOTE - The climbing legs must not have been extended, otherwise they could be damaged! NOTE - Do not overcome obstacles forwards, otherwise the safety brakes will be damaged! Adjust the neutral position Moving on level ground. -
Page 25: Moving On Slopes
8.3 Moving on slopes WARNING - For safety reasons, a second person should be present to help steer! NOTE - It is mandatory to observe the safety instructions in chapter 8! If necessary, pull the handles Tilt the c-max U2. The climbing legs must be out to shoulder height and fix »... -
Page 26: Climbing Stairs - Upwards
8.4 Climbing stairs - Upwards NOTE - It is mandatory to observe the safety instructions in chapter 8! Adjust neutral position. Tilt the c-max U2 and keep it Approach the step backwards » The climbing legs must be balanced. until wheels are in contact. completely retracted. -
Page 27: Climbing Stairs - Downwards
8.5 Climbing stairs - Downwards NOTE - It is mandatory to observe the safety instructions in chapter 8! DANGER - As soon as the climbing legs start taking the cargo you will feel the handles pulling. Tilt the c-max U2 closer to the ground to counteract. Adjust neutral position. -
Page 28: Laying Down On Stairs / Emergency Stop Function
8.6 Laying down on stairs / emergency stop function Lay down the c-max U2. » The safety brakes prevent it Emergency stop function from slipping away! If a hazardous situation occurs, proceed as follows: » Press and hold the UP/ »... -
Page 29: Transportation
Care and maintenance Conformity WARNING - Repairs and technical safety tests are performed by the manufacturer, the AAT fi eld staff or the authorised specialist shop! (Refer to chapter 9.5) WARNING - Opening the housing of the c-max U2 may only be performed by the manufacturer,... -
Page 30: Battery And Charger
9.1 Battery and charger CAUTION - Protect from moisture and do not touch with wet hands to avoid electric shocks and defects! NOTE - Charge the batteries after each use. NOTE - Protect the charger and voltage converter against oils, greases, aggressive cleaning agents, thinning agents or damage. - Page 31 Please contact your vehicle Required accessory from et on the left side of the hous- manufacturer for information AAT: ing allows the c-max U2 to be on the connection in your mo- Charger with special Mag- charged directly in the motor tor vehicle.
-
Page 32: Checking The Brake Linings, Climbing Feet Linings And Wheel Slide Protection
NOTE - Minimum lining thickness of brake= 1 mm - If below this value or damaged, inform the manufacturer, the AAT field service or an authorised specialist dealer. NOTE - If a lining is worn or damaged, both climbing feet must be replaced by the manufacturer, the AAT field service or by an authorised specialist dealer! C1412 N _00015086.sldasm... -
Page 33: Cleaning And Disinfection
9.3 Cleaning and disinfection WARNING - No moisture must be allowed to enter the interior of the device! This may result in electric shocks! Use only damp cloths for cleaning the device’s surface! Never use wet cloths! WARNING - Test all safety-relevant functions after cleaning! WARNING - Do not smoke during cleaning! NOTE - Keep the stair climber away from sources of ignition! NOTE - Clean the safety brakes in the rims weekly or with spirit when dirty! Observe the hazard... -
Page 34: Replacing Fuses
9.6 Reuse (change in operator) The term reuse is used when the AAT product of patient X is to be used for another patient Y. Please contact the manufacturer, the AAT field staff or the authorised specialist shop. The c-max U2 is suitable for reuse. -
Page 35: Disposal
Your c-max U2 and its batteries are durable products. After expiry of the natural service life, you can return these components to AAT Alber Antriebstechnik GmbH or their specialist dealers for disposal. The c-max U2 and its batteries must not be disposed of in places that are not designated for this purpose according to the current legislation in force in the respective country (e.g. - Page 36 Switch the c-max U2 on again. » The LED is flashing - Notify the manufacturer, the AAT field service, or the authorised specialist dealer! Fault conditions The LED is flashing Fault condition Overloaded Undervoltage, battery pack empty Overvoltage Speed control, UP/DOWN switch,...
- Page 37 » The c-max U2 was loaded in excess of the permissible total weight or the max. person weight. » The c-max U2 has not been serviced regularly (every 2 years) by the manufacturer, the AAT field ser- vice or an authorised specialist dealer.
- Page 38 Notes:...
- Page 39 Ideen bewegen mehr EU Declaration of Conformity AAT Alber Antriebstechnik GmbH · Postfach 10 05 60 · D-72426 Albstadt · Tel.: 0 74 31.12 95-0 · Fax: 12 95-35 · www.aat-online.de · info@aat-online.de Translation of the Original EU Declaration of Conformity...
- Page 40 AAT Alber Antriebstechnik GmbH Postfach 10 05 60 72426 Albstadt · Germany Phone: +49.(0) 74 31.12 95-0 Fax: +49.(0) 74 31.12 95-35 info@aat-online.de · www.aat-online.de Serial number:...
