Section 5 - Advanced Network Configuration
Path: Network > LAN > Link Aggregation
Link aggregation is used to combine a number of ports together to make a single high-bandwidth data pipeline.
The controller treats all ports in a trunk group as a single port.
Link Aggregation Control Protocol (LACP) is used to negotiate a dynamic aggregated link between the controller
and another network device that supports 802.3ad. For this to work, the controllers must comply with LACP to
allow negotiation of the aggregated link.

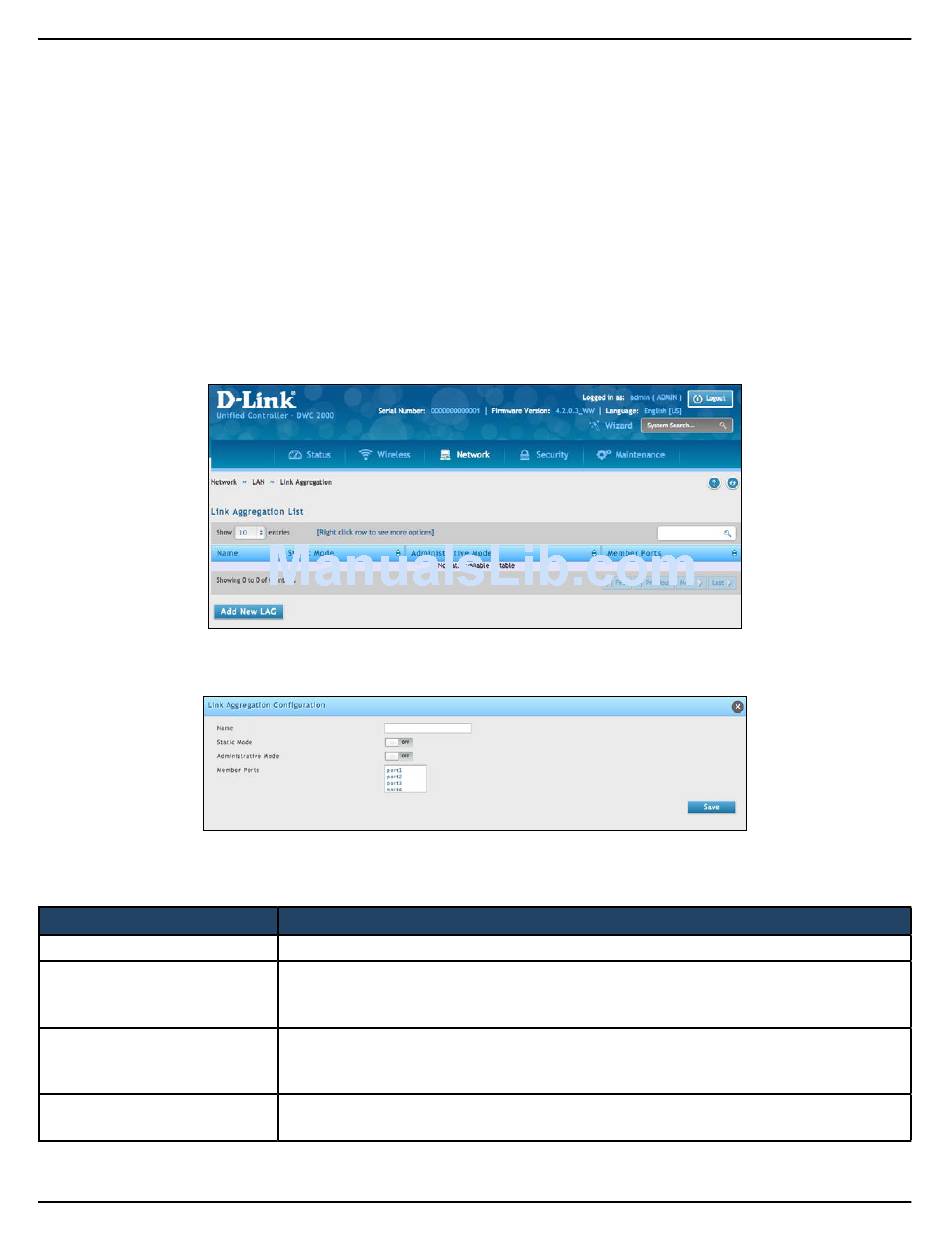

1. Click Network > LAN > Link Aggregation.
2. Click Add New LAC. The following window will appear.
3. Complete the fields in the table below and click Save.
Field
Name
Static Mode
Administrative Mode
Member Ports
* Maximum four interfaces aggregate into one logical interface.
D-Link DWC-2000 User Manual
Link Aggregation
Enter a name for this configuration.
Activates or deactivates the Static Mode. Choices are:
• ON = Use static mode.
• OFF = Use dynamic mode (LACP).
Enables or disables this configuration.
• ON = Enabled
• OFF = Disabled
Select the ports to add to the configuration (ports 1-4). Hold CTRL and click for multiple
ports.
Description
129
