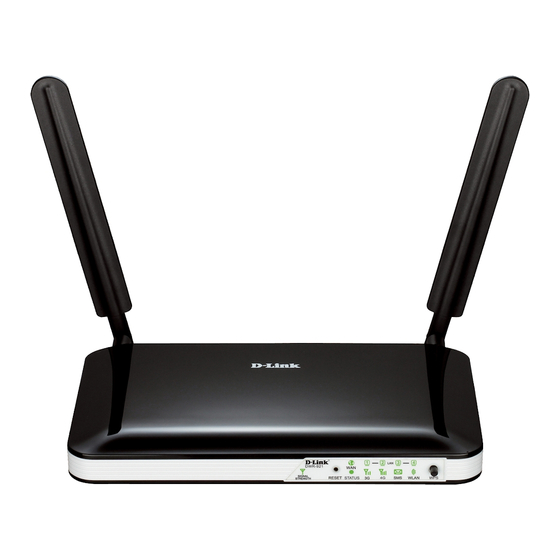

  • Page 1 Quick Installation Guide DWR-921 4G LTE Router...

  • Page 2: Before You Begin

    If any of the items are missing, please contact your reseller. The “User Manual” and “Quick Installation Guide” documents are available on D-Link website (see www.dlink.ru). Using a power supply with a different voltage rating than the one included will cause damage and void the warranty for this product.

  • Page 3: Default Settings

    DWR-921 Quick Installation Guide Default Settings dlinkrouter.local. Domain name of device IP address of device 192.168.0.1 Username (login) admin admin Password DWR-921 Name of wireless network (SSID) see WPS PIN on the barcode Network key (PSK) label on the bottom panel of...

  • Page 4: System Requirements And Equipment

    DWR-921 Quick Installation Guide System Requirements and Equipment An Android or iPhone mobile device (smartphone or tablet) or a • computer with any operating system that supports a web browser. A PC web browser to access the web-based interface: •...

  • Page 5: Pc With Ethernet Adapter

    DWR-921 Quick Installation Guide CONNECTING TO PC PC with Ethernet Adapter 1. Insert a SIM card into the slot on the back panel of the router with the gold contacts facing downwards and gently push until it clicks. If you need to connect a SIM card or change it to another one when the router is powered on, power off the router, insert or change the SIM card, and power on the router.
  • Page 6 DWR-921 Quick Installation Guide Obtaining Address Automatically (OS Windows 7) 1. Click the Start button and proceed to the Control Panel window. 2. Select the Network and Sharing Center section. (If the Control Panel has the category view (the Category value is selected from the View by...
  • Page 7 DWR-921 Quick Installation Guide 6. Make sure that the Obtain an IP address automatically and Obtain DNS server address automatically choices of the radio buttons are selected. Click the OK button. 7. Click the OK button in the connection properties window.
  • Page 8 DWR-921 Quick Installation Guide Obtaining Address Automatically (OS Windows 10) 1. Click the Start button and proceed to the Settings window. 2. Select the Network & Internet section. 3. In the Change your network settings section, select the Change adapter options line.
  • Page 9 DWR-921 Quick Installation Guide 6. Make sure that the Obtain an IP address automatically and Obtain DNS server address automatically choices of the radio buttons are selected. Click the OK button. 7. Click the Close button in the connection properties window.

  • Page 10: Pc With Wi-Fi Adapter

    DWR-921 Quick Installation Guide PC with Wi-Fi Adapter 1. Insert a SIM card into the slot on the back panel of the router with the gold contacts facing downwards and gently push until it clicks. If you need to connect a SIM card or change it to another one when the router is powered on, power off the router, insert or change the SIM card, and power on the router.
  • Page 11 DWR-921 Quick Installation Guide Obtaining Address Automatically Connecting to Wireless Network (OS Windows 7) 1. Click the Start button and proceed to the Control Panel window. 2. Select the Network and Sharing Center section. (If the Control Panel has the category view (the Category value is selected from the View by...
  • Page 12 DWR-921 Quick Installation Guide 6. Make sure that the Obtain an IP address automatically and Obtain DNS server address automatically choices of the radio buttons are selected. Click the OK button. 7. Click the OK button in the connection properties window.
  • Page 13 Quick Installation Guide 9. In the opened window, in the list of available wireless networks, select the wireless network DWR-921 and click the Connect button. 10. In the opened window, enter the network key (see WPS PIN on the barcode label on the bottom panel of the device) in the Security key field and click the OK button.
  • Page 14 DWR-921 Quick Installation Guide Obtaining Address Automatically Connecting to Wireless Network (OS Windows 10) 1. Click the Start button and proceed to the Settings window. 2. Select the Network & Internet section. 3. In the Change your network settings section, select the Change adapter options line.
  • Page 15 9. In the opened window, in the list of available wireless networks, select the wireless network DWR-921 and click the Connect button. 10. In the opened window, enter the network key (see WPS PIN on the barcode label on the bottom panel of the device) in the Security key field and click the Next button.
  • Page 16 DWR-921 Quick Installation Guide 12. Wait for about 20-30 seconds. After the connection is established, the network icon will be displayed as a dot with curved lines indicating the signal level. If you perform initial configuration of the router via Wi-Fi connection,...

  • Page 17: Configuring Router

    DWR-921 Quick Installation Guide CONFIGURING ROUTER Connecting to Web-based Interface Start a web browser. In the address bar of the web browser, enter the domain name of the router (by default, dlinkrouter.local) with a dot at the end and press the Enter key. Also you can enter the IP address of the device (by default, 192.168.0.1).
  • Page 18 DWR-921 Quick Installation Guide If you configured the device previously, after access to the web-based interface the login page opens. Enter the username (admin) in the Username field and the password you specified in the Password field, then click the LOGIN button.
  • Page 19 DWR-921 Quick Installation Guide The Summary page displays general information on the router and its software.
  • Page 20 DWR-921 Quick Installation Guide The Home page displays links to the most frequently used pages with device's settings. The web-based interface of the router is multilingual. You can select the needed language upon the initial configuration of the web-based interface of the router or in the System / Configuration section of the menu.

  • Page 21: Initial Configuration Wizard

    Click the OK button and wait until the factory default settings are restored. If you perform initial configuration of the router via Wi-Fi connection, please make sure that you are connected to the wireless network of DWR-921 (see the WLAN name (SSID) in the Default Settings section, page 3) and click the NEXT button.
  • Page 22 DWR-921 Quick Installation Guide 1. Click YES in order to leave the current language of the web-based interface or click NO to select another language. 2. On the next page, click the CONTINUE button.

  • Page 23: Selecting Operation Mode

    DWR-921 Quick Installation Guide Selecting Operation Mode Select the needed operation mode and click the NEXT button. Router In order to connect your device to a wired ISP, on the Device mode page, from the Connection method list, select the Wired connection value.
  • Page 24 DWR-921 Quick Installation Guide In order to connect your device to the network of a 3G or LTE operator, on the Device mode page, from the Connection method list, select the Mobile Internet value. In this mode you can configure an LTE WAN connection, set your own settings for the wireless network, and set your own password for access to the web-based interface of the device.
  • Page 25 DWR-921 Quick Installation Guide Access Point or Repeater In order to connect your device to a wired router for adding a wireless network to the existing local network, on the Device mode page, from the Connection method list, select the Wired connection value. Then from the Work mode list select the Access point value.

  • Page 26: Creating Lte Wan Connection

    DWR-921 Quick Installation Guide Creating LTE WAN Connection This configuration step is available for the Mobile Internet mode. 1. If the PIN code check is enabled for the SIM card inserted into the built- in modem, enter the PIN code in the PIN field and click the APPLY...
  • Page 27 DWR-921 Quick Installation Guide 2. Please wait while the router automatically creates a WAN connection for your mobile operator. 3. Click the NEXT button. If the router failed to create a WAN connection automatically, click the CONFIGURE MANUALLY button. On the...

  • Page 28: Changing Lan Ipv4 Address

    This configuration step is available for the Access point, Repeater, and Client modes. 1. Select the Automatic obtainment of IPv4 address to let DWR-921 automatically obtain the LAN IPv4 address. 2. In the Hostname field, you should specify a domain name of the router using which you can access the web-based interface after finishing the Wizard.
  • Page 29 DWR-921 Quick Installation Guide If you want to manually assign the LAN IPv4 address for DWR-921, do not select the Automatic obtainment of IPv4 address checkbox and fill in the IP address, Subnet mask, DNS IP address, Hostname fields and, if needed, the Gateway IP address field.
  • Page 30 DWR-921 Quick Installation Guide Wi-Fi Client This configuration step is available for the WISP Repeater, Repeater, and Client modes. 1. On the Wi-Fi Сlient page, click the WIRELESS NETWORKS button and select the network to which you want to connect in the opened window.
  • Page 31 DWR-921 Quick Installation Guide If you connect to a hidden network, enter the network name in the Network name (SSID) field. Then select a needed value from the Network authentication list and then, if needed, enter the password in the relevant field.

  • Page 32: Configuring Wired Wan Connection

    DWR-921 Quick Installation Guide Configuring Wired WAN Connection This configuration step is available for the Router and WISP Repeater modes. You should configure your WAN connection in accordance with data provided by your Internet service provider (ISP). Make sure that you have obtained all necessary information prior to configuring your connection.
  • Page 33 DWR-921 Quick Installation Guide PPPoE, IPv6 PPPoE, PPPoE Dual Stack, PPPoE + Dynamic IP (PPPoE Dual Access): Enter authorization data provided by your ISP (the username (login) in the Username field and the password in the Password field). Click the Show icon ( ) to display the entered password.
  • Page 34 DWR-921 Quick Installation Guide PPTP + Dynamic IP or L2TP + Dynamic IP: Enter authorization data provided by your ISP (the username (login) in the Username field and the password in the Password field). Click the Show icon ( ) to display the entered password.
  • Page 35 DWR-921 Quick Installation Guide 2. If a particular MAC address was registered by your ISP upon concluding the agreement, from the MAC address assignment method drop- down list (available for the Router mode only), select the Manual value and enter this address in the MAC address field. Choose the Clone...

  • Page 36: Configuring Wireless Network

    DWR-921 Quick Installation Guide Configuring Wireless Network This configuration step is available for the Mobile Internet, Router, Access point, WISP Repeater, and Repeater modes. 1. On the Wireless Network 2.4 GHz page, in the Network name field, specify your own name for the wireless network or leave the value suggested by the router.
  • Page 37 DWR-921 Quick Installation Guide 5. If you want to create an additional wireless network isolated from your LAN, select the Enable guest network checkbox (available for the Mobile Internet, Router, and WISP Repeater modes only). 6. In the Network name field, specify your own name for the guest wireless network or leave the value suggested by the router.

  • Page 38: Configuring Lan Ports For Iptv/Voip

    DWR-921 Quick Installation Guide Configuring LAN Ports for IPTV/VoIP This configuration step is available for the Router mode. 1. On the IPTV page, select the Is an STB connected to the device checkbox. 2. Select a free LAN port for connecting your set-top box.
  • Page 39 DWR-921 Quick Installation Guide 5. On the VoIP page, select the Is an IP phone connected to the device checkbox. 6. Select a free LAN port for connecting your IP phone. 7. If the VoIP service is provided via a VLAN channel, select the Use VLAN ID checkbox and fill in the VLAN ID field.

  • Page 40: Changing Web-Based Interface Password

    DWR-921 Quick Installation Guide Changing Web-based Interface Password On this page you should change the default administrator password. To do this, enter a new password in the User’s interface password and Password confirmation fields. You may set any password except admin.

  • Page 41: Configuring Local Area Network

    DWR-921 Quick Installation Guide Configuring Local Area Network 1. Go to the Connections Setup / LAN page. 2. If needed, change the IPv4 address of the router's LAN interface and the mask of the local subnet. To do this, click the IPv4 tab and specify needed values in the IP address and Mask fields in the Local IP Address section.
  • Page 42 DWR-921 Quick Installation Guide 4. IPv4 address assignment. By default, the built-in DHCP server of the router assigns IPv4 addresses to the devices of the LAN. If you want to manually assign IPv4 addresses, disable the DHCP server (click the IPv4 tab and select the Disable value from the Mode of IPv4 address assignment drop-down list in the Dynamic IP Addresses section).
  • Page 43 DWR-921 Quick Installation Guide 5. IPv6 address assignment. By default, the devices of the LAN automatically assign IPv6 addresses to themselves (the Stateless value is selected from the Mode of IPv6 address assignment drop-down list in the Dynamic IP Addresses section on the IPv6 tab). If the...

  • Page 44: Specifications

    DWR-921 Quick Installation Guide SPECIFICATIONS Hardware · Processor MT7620N (600MHz) · 64MB, DDR1 RAM Flash · 16MB, SPI · BroadMobi BM806U-E1 Built-in modem · Slot for SIM card (mini-SIM) Interfaces · 10/100BASE-TX WAN port · 4 10/100BASE-TX LAN ports ·...
  • Page 45 DWR-921 Quick Installation Guide Software · Mobile Internet WAN connection types · PPPoE · IPv6 PPPoE · PPPoE Dual Stack · Static IPv4 / Dynamic IPv4 · Static IPv6 / Dynamic IPv6 · PPPoE + Static IP (PPPoE Dual Access) ·...
  • Page 46 Management and monitoring SSH/TELNET/WEB (HTTP/HTTPS) · Multilingual web-based interface for configuration and management · Support of D-Link Assistant application for Android and iPhone smartphones · Notification on connection problems and auto redirect to settings · Firmware update via web-based interface ·...
  • Page 47 Enabling/disabling PIN code check, changing PIN code · Sending/receiving/reading/removing SMS messages · Support of USSD requests (For DWR-921 with the built- in modem FW version M1.4.4_E1.0.3_A1.1.8. See the data on the modem FW version in the web-based interface of the router, on the “LTE Modem” page.) Wireless Module Parameters ·...
  • Page 48 DWR-921 Quick Installation Guide Wireless Module Parameters · Support of client mode Advanced functions · WMM (Wi-Fi QoS) · Information on connected Wi-Fi clients · Advanced settings · Guest Wi-Fi / support of MBSSID · Periodic scan of channels, automatic switch to least loaded channel ·...
  • Page 49 DWR-921 Quick Installation Guide Operating Environment Power · Output: 12V DC, 1A · Operating: from 0 to 40 °C Temperature · Storage: from -10 to 70 °C · Operating: from 10% to 90% (non-condensing) Humidity · Storage: from 0% to 95% (non-condensing)

  • Page 50: Safety Rules And Conditions

    DWR-921 Quick Installation Guide SAFETY RULES AND CONDITIONS Please carefully read this section before installation and connection of the device. Make sure that the power adapter and cables are not damaged. The device should be used only as intended in accordance with the documents.

  • Page 51: Technical Support

    Quick Installation Guide TECHNICAL SUPPORT You can find software updates and user documentation on our website. D-Link provides its customers with free support within the product's warranty period. Customers can contact the technical support group by phone or by e- mail/Internet.
