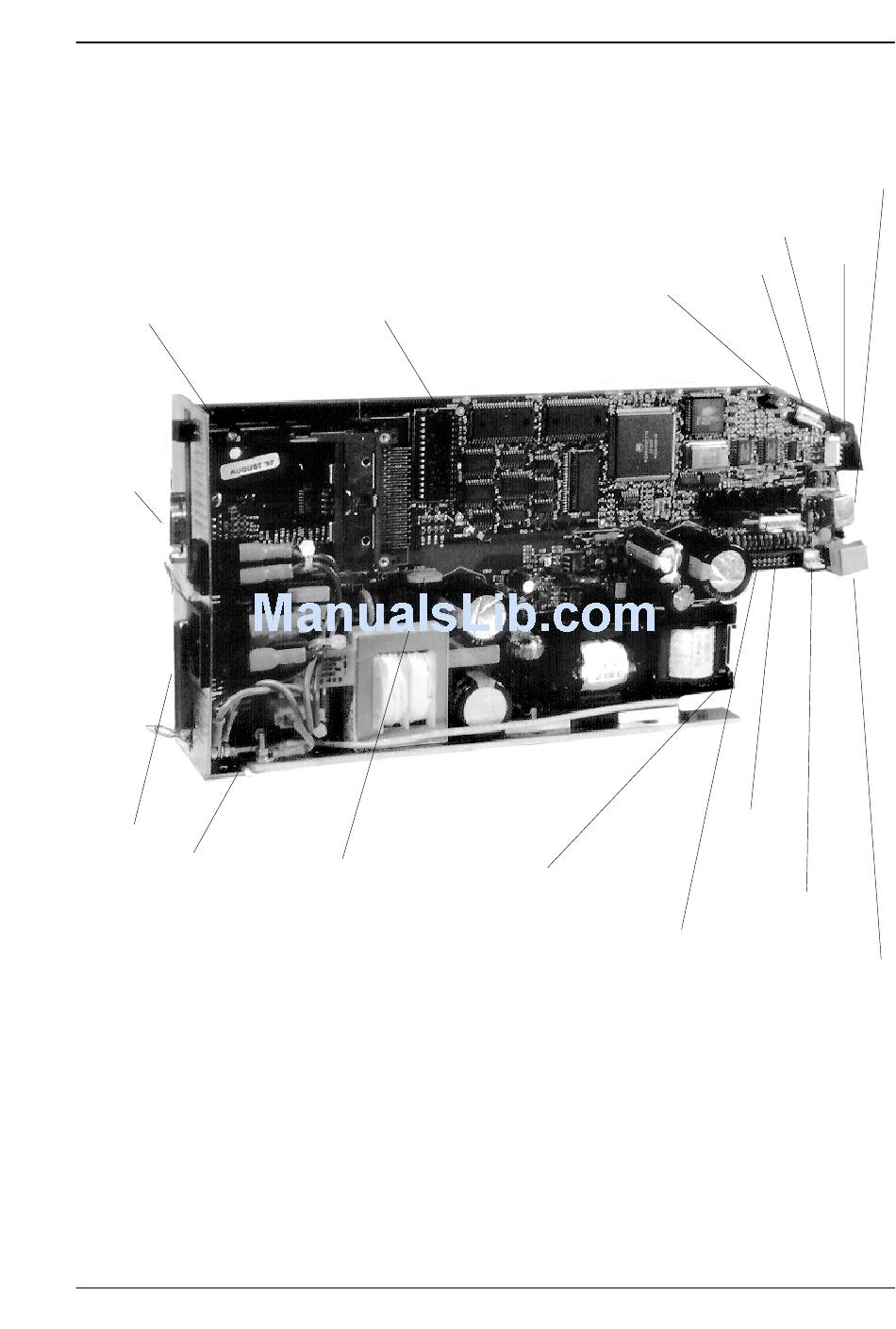

11.3 Connectors and
Straps
Screw
Real-Time Clock (RTC)
Serial Port
Parallel Port
Screw
Intermec EasyCoder 301 – Service Manual Ed. 3
J8 Mains Voltage Strap
Left side: 115V AC
Right side: 230 V AC
J4 Label-Taken Sensor
J2 Operator Interface
J1 Boot Sector Straps
(normal position:
both on left side)
Screw
J7 Ribbon/Media Sensor
Chapter 11 CPU Board
Cutter Connector
Screw
J9 Printhead
J10 Stepper Motor
Wand Connector
46
