5.2

External Supply

Intermec EasyCoder 301 – Service Manual Ed. 3

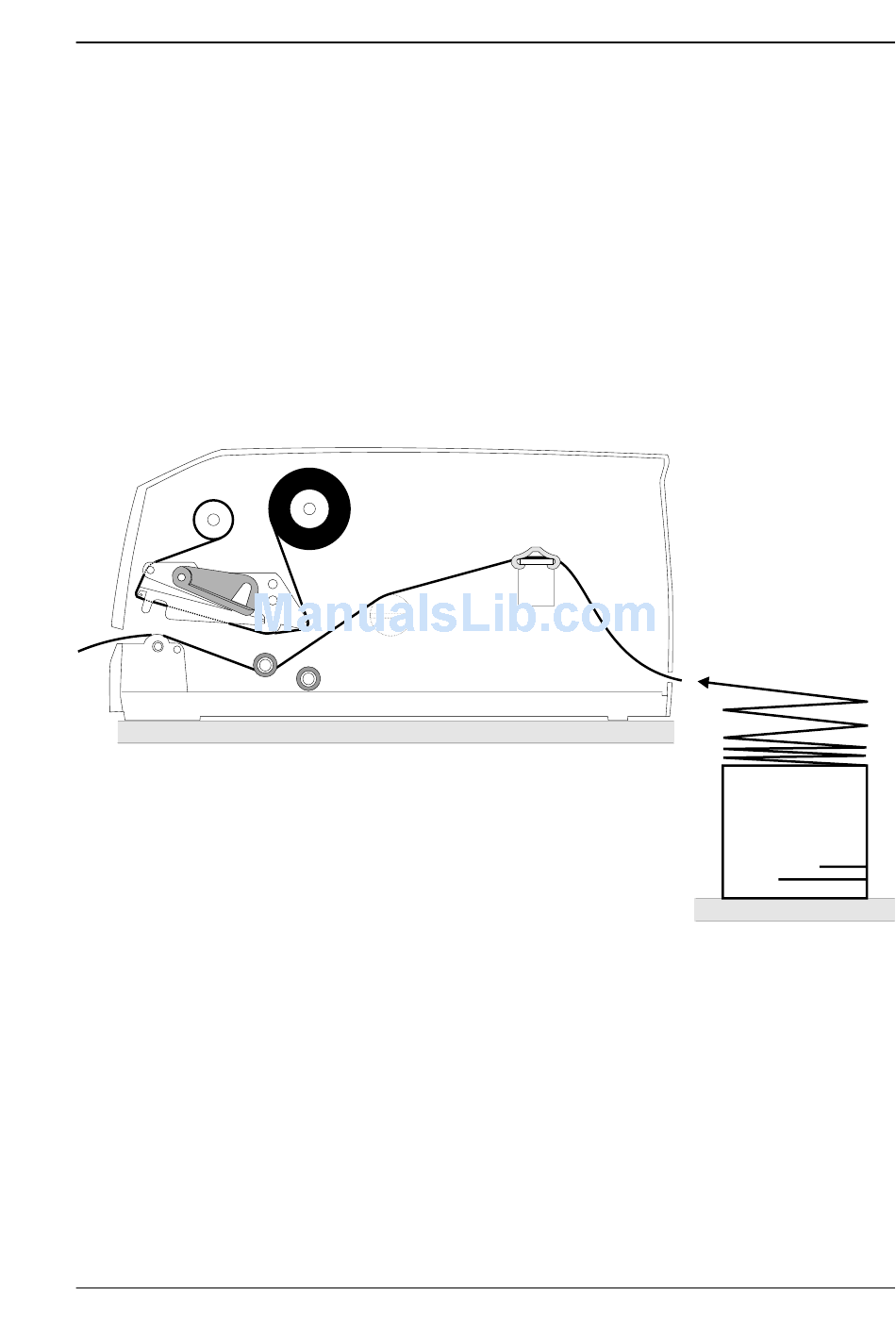

The user cover is provided with a slot that allows the paper supply
to be placed outside the media compartment, e.g. in the form of a
box of fan-folded tickets. For smooth operation, such a supply
should be located lower than the intake of the printer.
Measures should be taken to protect the paper from sand, dust, grit
and other hard particles which may damage the printhead or impair
the printout quality.
It is also important that such an external supply is protected against
any conditions that may harm the paper. This is especially impor-
tant in case of direct thermal paper, which may be vulnerable to
direct sunlight, heat, airborne solvents, plasticizers, grease etc.
Refer to the EasyCoder 301 (LinerLess) Installation & Operation
manual for complete loading instructions.
Chapter 5 Paper Supply
18
