5. Paper Supply
5.1

Internal Supply

1
/. When using a full size paper roll
(diameter = 152 mm/6") in connection
with peel-off operation, it is recom-
mended to use normal print speed (100
mm per sec./4" per sec.). No such
restrictions apply to smaller paper rolls
or full size paper rolls in connection with
tear-off operation.
Intermec EasyCoder 301 – Service Manual Ed. 3

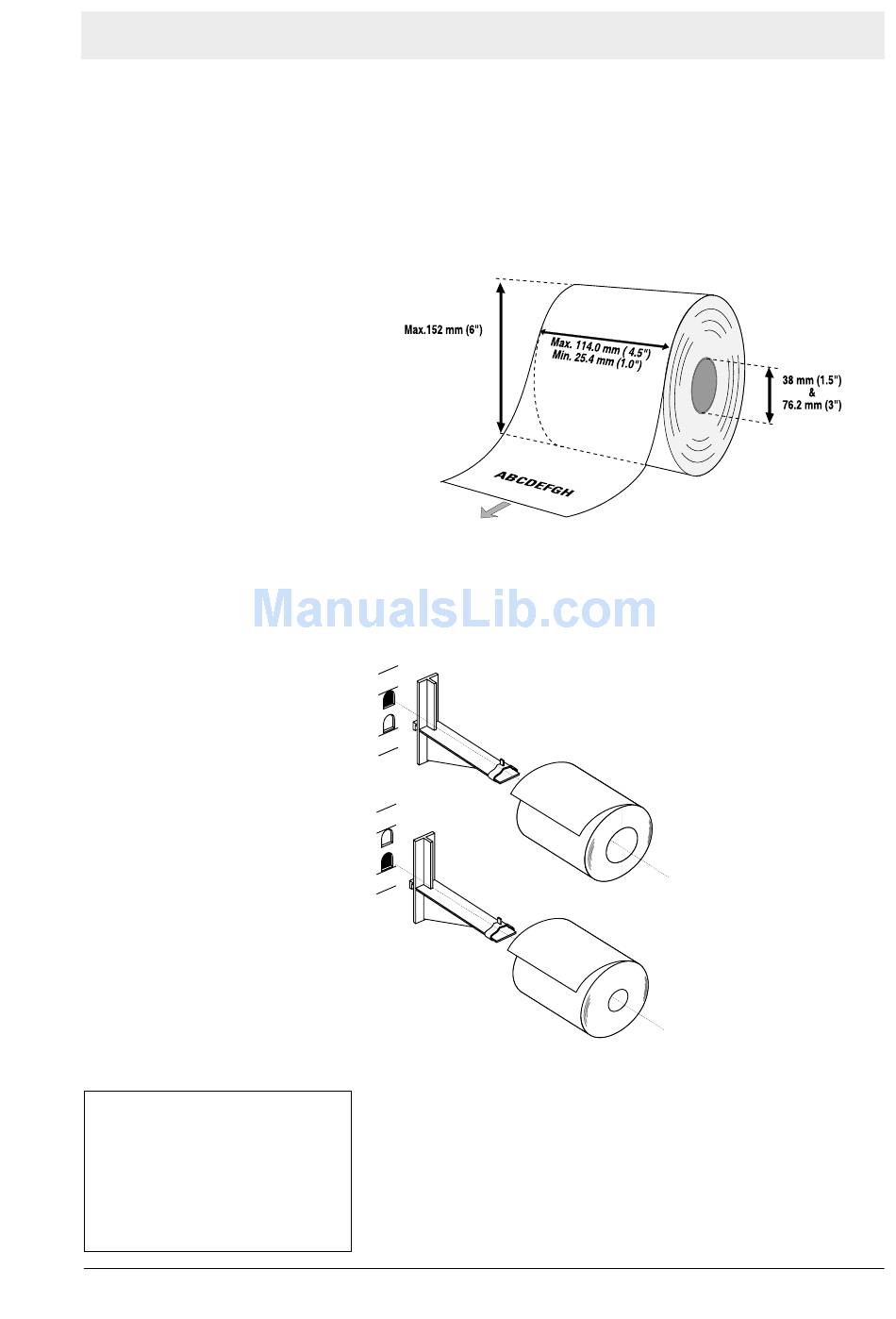

The printer can accommodate an internal paper roll with a diameter
1
of max. 152 mm (6") and a width of 25.4 mm – 114 mm (1 – 4.5").
The paper roll should have a core with a diameter of either 38.1 mm
(1.5") or 76.2 mm (3").
Media Hanger
The paper roll is hung on a hanger at the rear of the media
compartment. The hanger can be fitted in two positions; upper and
lower. The upper position is used for 76 mm (3") core and the lower
for 38.1 mm (1.5") core.
To loosen the hanger, turn it about 30° back and forth in any
direction and pull it out. Insert it in the hanger in the appropriate slot
and press it firmly down. Its top and bottom ends should match the
grooves in the centre-line wall.
Adjust the moveable guide so its position matches the width of the
paper roll.
Chapter 5
76 mm (3") core
38.1 mm (1.5") core
16
