10. Electronics Compartment
10.1 Accessing
the Electronics
Compartment

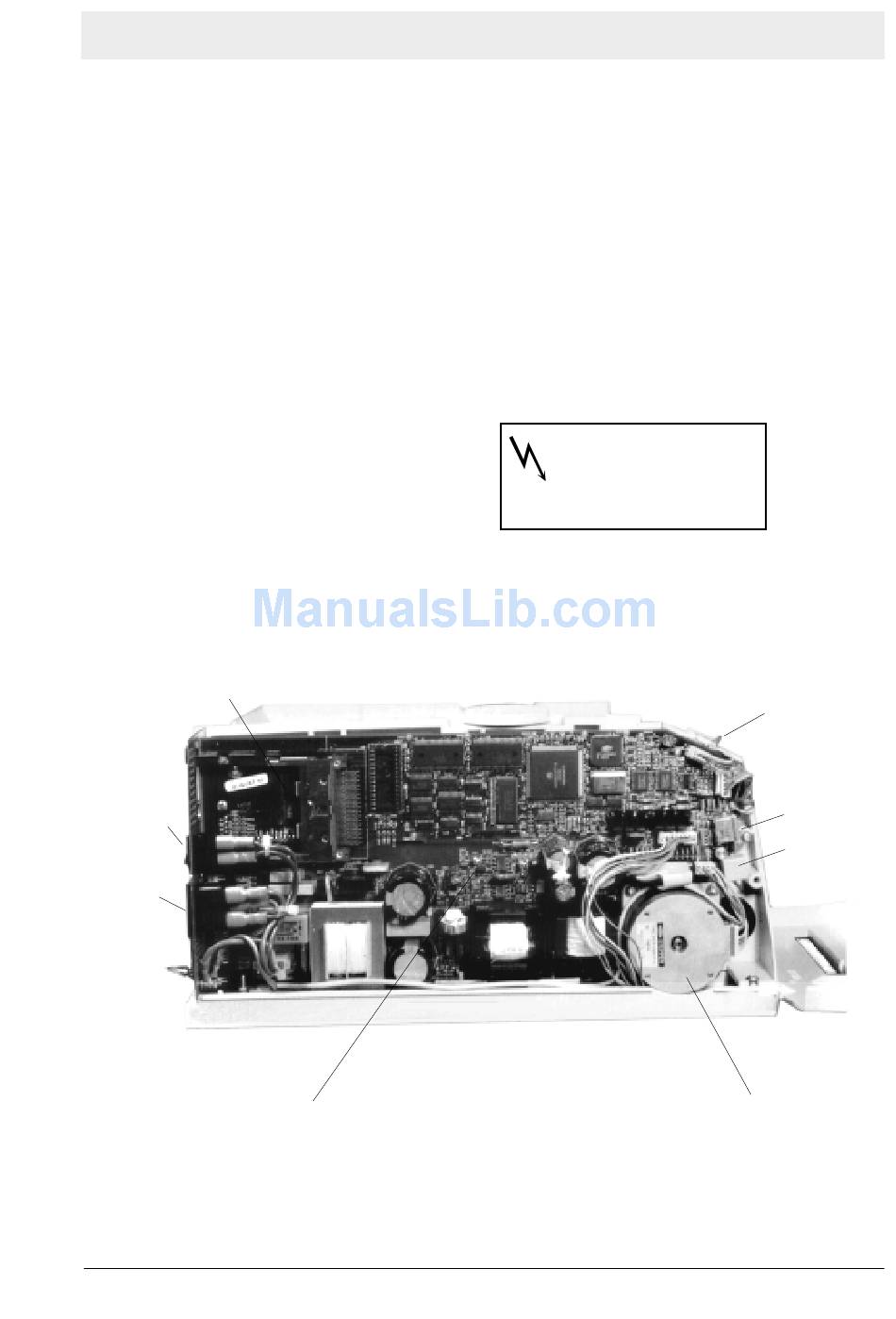

10.2 Main Parts

Memory Card Adapter
Main Switch
Mains Inlet
CPU board
Intermec EasyCoder 301 – Service Manual Ed. 3
To gain access to the electronics compartment, proceed as follows:
• Turn off the power and remove the power cord.
• Disconnect all interface cables at the printer's rear plate.
• Open the front and user covers.
• Remove the Posidrive screw at the rear of the media compart-
ment.
• Remove the Posidrive screw in the recess for the bar code wand
interface.
• Pull out the cover, taking care not to damage the wire-locks on
the Centronics connector on the printer's rear plate.
disconnect the power cord. High volt-
age wires and circuits inside.
WARNING!
Before removing the electrics
cover, turn off the printer and
Chapter 10
Operator Interface
Cutter Interface
Wand Interface
Stepper Motor
42
