12.3 Installation,
cont'd.
Intermec EasyCoder 301 – Service Manual Ed. 3

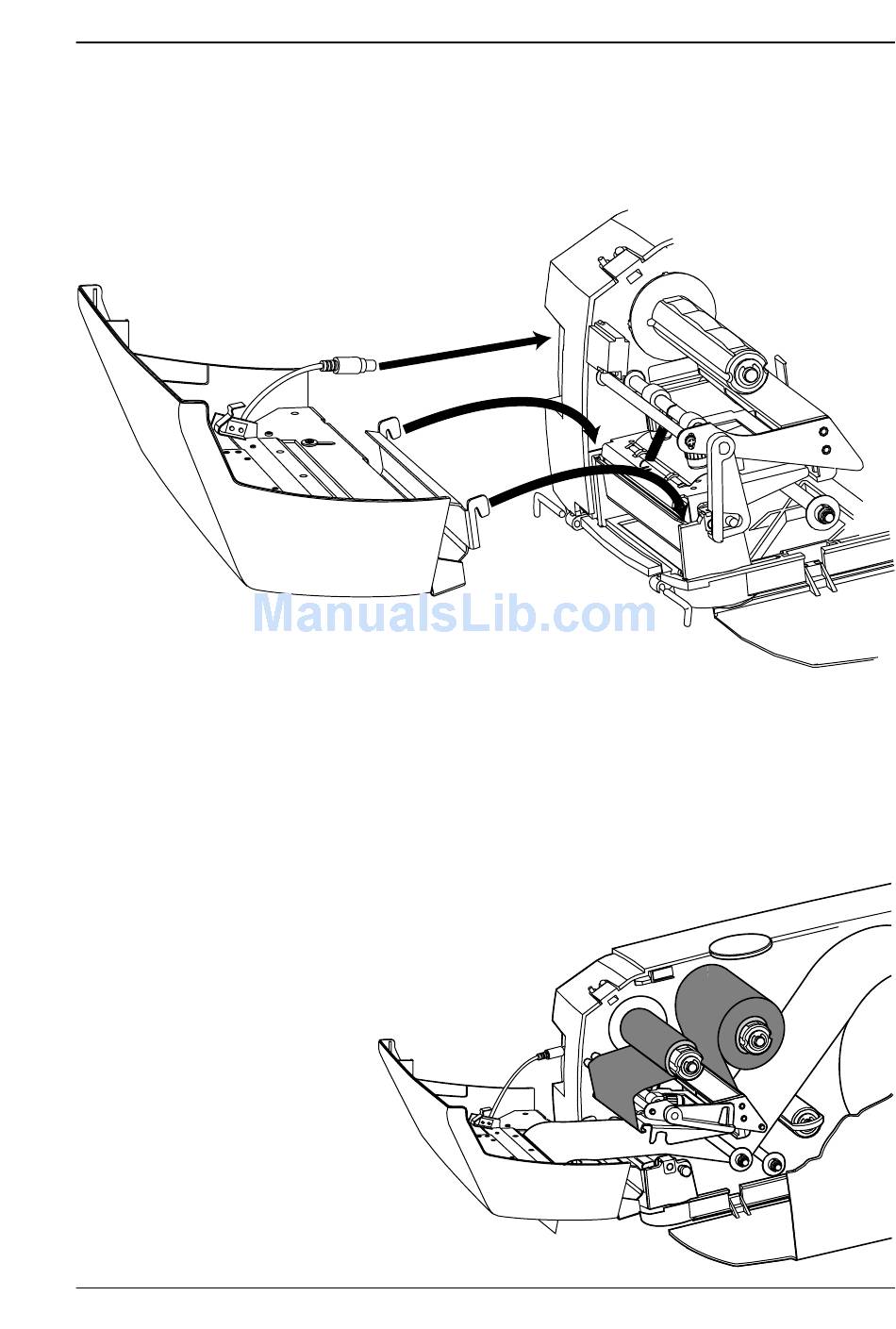

• Fit the two hooks at the rear of the cutter unit on either side of the
tear off edge and press down firmly.
• The holes in the tabs at the bottom of the cutter unit should be
aligned with the hinges on the bottom moulding.
• Insert the hinge pins as shown above.
• Connect the cable from the cutter to the upper (circular) one of
the two connectors on the printer's front.
• Thread the paper through the slot in the cutter.
• Close the cutter, connect the interface cable and power cord and,
finally, turn on the power.
