LCD Panel Open - Model C

2
4
6
10
3
1
5
6
7
8
9

Wireless Device
Operation Aboard
Aircraft
The use of any portable elec-
tronic transmission devices
(e.g. WLAN, Bluetooth or 3G/
4G) aboard aircraft is usually
prohibited. Make sure any
wireless modules are OFF
(i.e. the system is in Airplane
Mode) if you are using the
computer aboard aircraft.
Use Fn + F11 Airplane Mode
key combination to toggle Air-
plane Mode On/Off, and
check the LED indicator for
the power status.
LCD Panel Open - Model C 1 - 9
Quick Start Guide

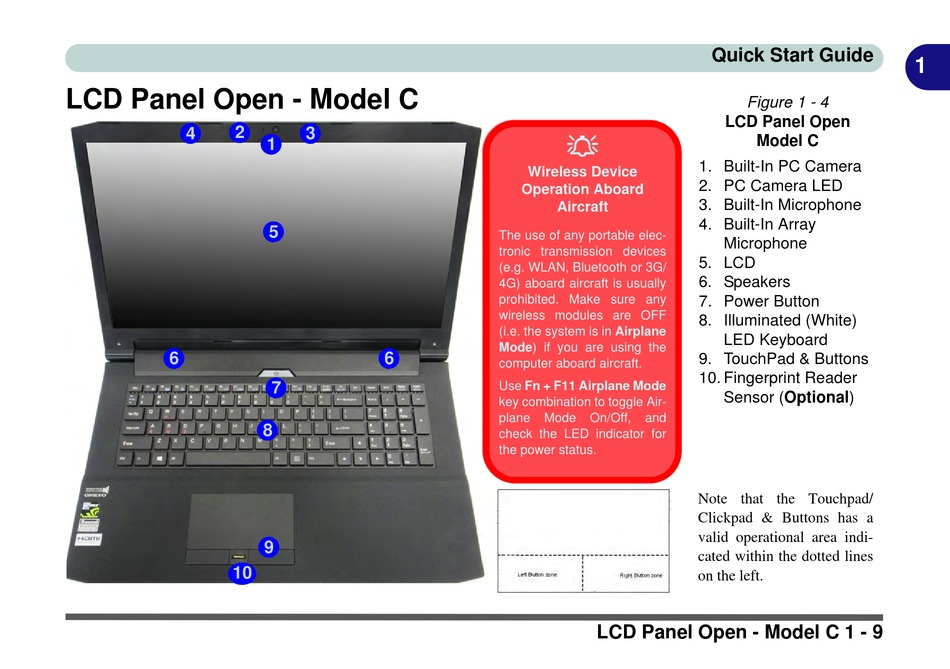

Figure 1 - 4
LCD Panel Open
Model C
1. Built-In PC Camera
2. PC Camera LED
3. Built-In Microphone
4. Built-In Array
Microphone
5. LCD
6. Speakers
7. Power Button
8. Illuminated (White)
LED Keyboard
9. TouchPad & Buttons
10. Fingerprint Reader
Sensor (Optional)
Note that the Touchpad/
Clickpad & Buttons has a
valid operational area indi-
cated within the dotted lines
on the left.
