Summary of Contents for CYP CH-507RXWP

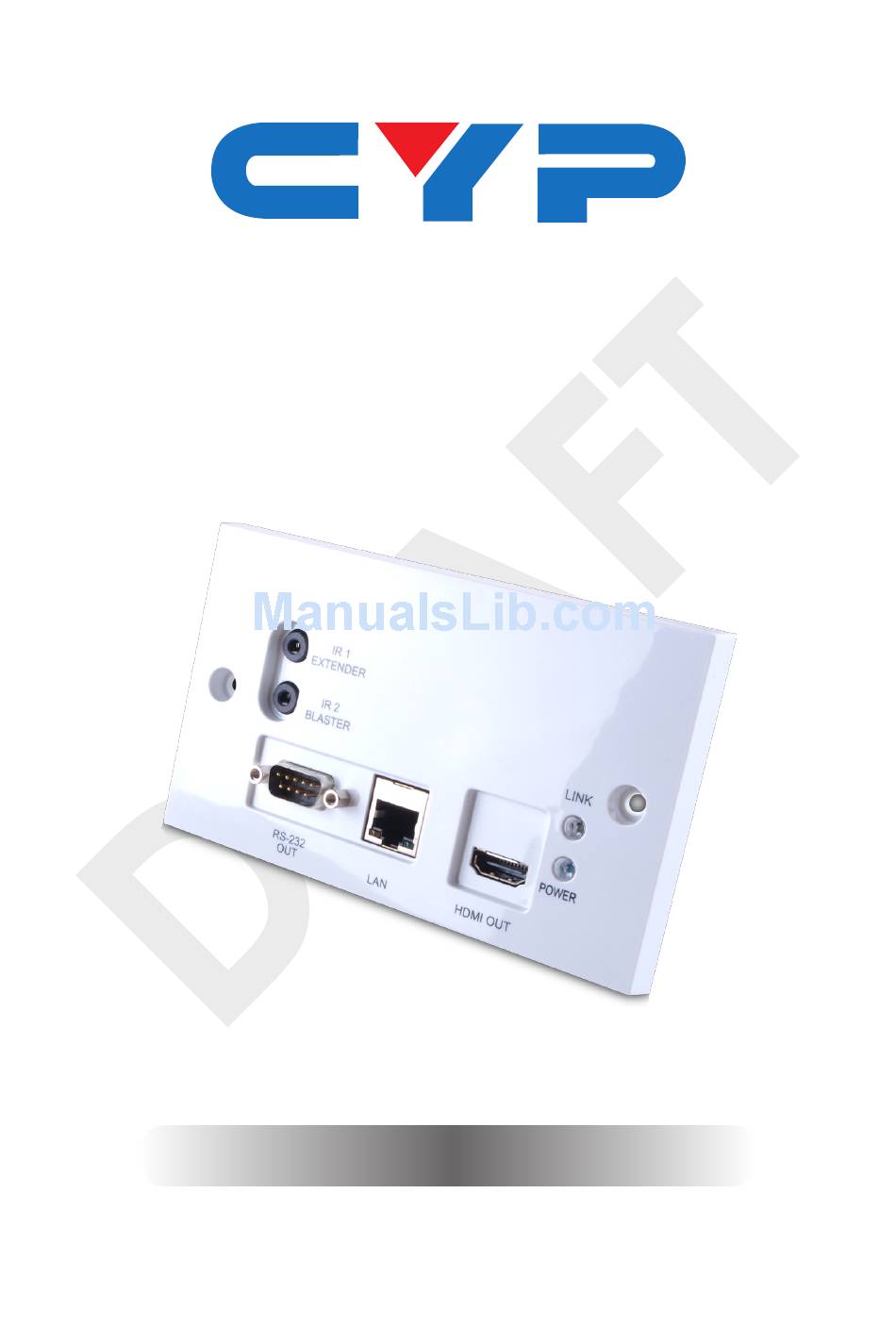

- Page 1 CH-507RXWP HDMI over Single CAT5e/CAT6 Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 7. D-Sub 9 Pin Definitions ......4 8. Connection Diagram ......5 9. -
Page 6: Introduction
1. INTRODUCTION The device that can make your home or office more efficient, this unit of HDMI over Single CAT5e/6 can receive uncompressed audio/video, RS-232 and IR control ports, Power on Ethernet(PoE) and Ethernet over 100M with wall plate design. A trueHDBaseT 5Play solution. Hence, if you want to make your home or office more efficient, get the HDMI over single CAT5e/CAT6 receiver and prepare to be amazed. -
Page 7: Features
5. FEATURES • HDMI 1.4 with 3D, 4k x 2k support, HDCP & DVI Compliant • Supports HDCP repeater and CEC bypass • Simultaneously uncompressed data sending over a single 100M/328ft with CAT6 or CAT5e cable • Uncompressed video 1080p, 60Hz, 36bits •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS IR 1 Digital Eye IR 2 Emitter LINK POWER RS-232 HDMI OUT IR 1 Digital Eye: This slot is to connect with the IR receiver cable included in the package for IR signal receiving. IR 2 Emitter: This slot is to connect with the IR blaster cableincluded in the package for IR signal transmitting. -
Page 9: D-Sub 9 Pin Definitions
7. D-SUB 9 PIN DEFINITIONS Define TX/RX TxD/RxD RxD/TxD... -
Page 10: Connection Diagram
8. CONNECTION DIAGRAM CAT5e(100M)/ CAT6(100M) IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR 1 Digital Eye CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT POE 24V IR IN... -
Page 11: Specifications
9. SPECIFICATIONS Input 1×CAT5e/6, 1×IR Extender, 1xLAN Output 1×HDMI, 1×RS-232, 1×IR Blaster ESD Protection Human-body Model: ±8kV (air-gap discharge) ±4kV (contact discharge) IR Frequency 30~50 kHz Dimensions (mm) 146(W) x 86(D) x 48.5(H) Weight (g) Chassis Material Plastic Silkscreen Color White Operating Temperature 0 °C~40 °C/32 °F~104 °F Storage Temperature... -
Page 12: Acronyms
10. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable Consumer Electronics Control Digital Visual Interface HDCP High-bandwidth Digital Content Protection HDMI High Definition Multimedia Interface Infrared... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
