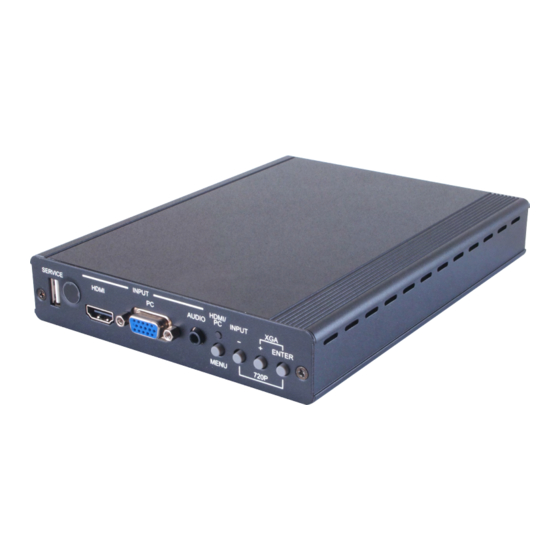

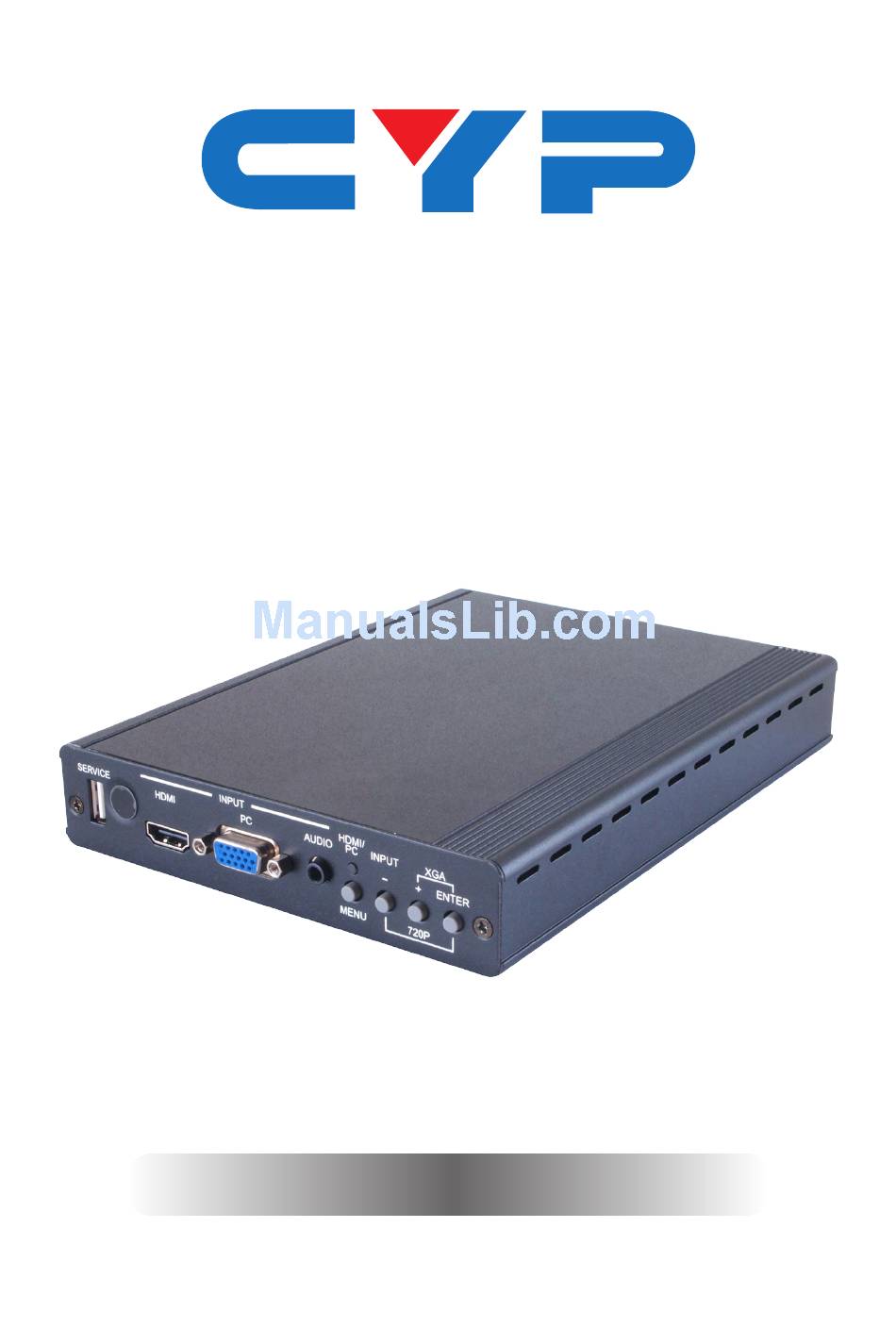

- Page 1 CH-520TXAHS HDMI/PC Video Scaler over CAT5e/6/7 with LAN/IR/ RS-232/Bidirectional PoE Transmitter Operation Manual Operation Manual...
- Page 2 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 3: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 Remote Control ........5 6.4 IR Cable Pin Assignment....6 6.5 RS-232 Pin Definitions ......7 6.6 RS-232 Commands ......8... -
Page 5: Introduction
1. INTRODUCTION The HDMI/PC video scaler with LAN/IR/RS-232/Bidirectional PoE over Single CAT5e/6/7 transmitter can send uncompressed audio/video over a single run of CAT5e/6/7 cable up to 100 m with Bidirectional PoE feature. The system supports various ways of control that can be done through on-panel buttons, IR remote, RS-232, and OSD. -
Page 6: Features
5. FEATURES • Supports HDMI/PC input scaler to full range of HDTV and PC output resolutions through CAT5e/6/7 • Transmission of uncompressed data over a single 100 m/328 ft CAT5e/6/7 cable • 5Play™ convergence: Video, Audio, LAN, Bidirectional PoE & Control (IR &... -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel INPUT HDMI/ SERVICE HDMI AUDIO INPUT ENTER MENU 720P SERVICE: This port is reserved for firmware update only. IR: IR Receiver window (accepts the remote control signal of this device only). HDMI: Connect to source equipment such as DVD/Video player for video signal sending. -
Page 8: Rear Panel
6.2 Rear Panel DC 24V RS-232 IN CAT5e/6/7 OUT Blaster Extender POWER MODE LINK Power LED: This LED will illuminate when the device is connected with power supply. DC 24V: Plug the 24 V DC power supply into the unit and connect the adaptor to an AC outlet. -
Page 9: Remote Control
6.3 Remote Control INPUT: Press this button to switch HDMI/PC input source instantly. EXIT: Press this button to exit the menu or escape the current selection under OSD. MENU: Press this button to enter INPUT into the OSD menu. EXIT MENU RESET: Press this button to set the device back into the factory... -
Page 10: Ir Cable Pin Assignment
6.4 IR Cable Pin Assignment IR Blaster Power 5 V IR Blaster Signal IR Extender IR Signal Power Grounding... -
Page 11: Rs-232 Pin Definitions
6.5 RS-232 Pin Definitions DEFINE TX/RX TxD/RxD RxD/TxD Baud Rate: 9600bps Data bit: 8 bits Parity: None Flow Control: None Stop Bit: 1... -
Page 12: Rs-232 Commands
6.6 RS-232 Commands COMMAND DESCRIPTION S SOURCE 1~2 1=PC 2=HDMI R SOURCE Reports the numerical equivalent for SOURCE setting (as above) S OUTPUT 0~25 0=Native 12=1600×1200 1=640×480 13=1920×1080 2=800×600 16=1920×1200 3=1024×768 17=480p 5=1360×768 18=720p@60 6=1280×720 19=1080p@60 7=1280×800 20=1080i@60 8=1280×1024 22=576p 9=1440×900 23=720p@50 10=1400×1050... - Page 13 R HUE Reports the numerical equivalent for HUE setting S SATURATION 0~60 Setups the numerical equivalent for SATURATION setting (as left) R SATURATION Reports the numerical equivalent for SATURATION setting S SHARPNESS 0~30 Setups the numerical equivalent for SHARPNESS setting (as left) R SHARPNESS Reports the numerical equivalent for SHARPNESS setting...
-
Page 14: Osd Menu
6.7 OSD Menu Layer layer Layer DISPLAY OUTPUT Native 640X480 60 800x600 60 1024x768 60 1360x768 60 1280x720 60 1280x800 60 1280x1024 60 1440x900 60 1400x1050 60 1680x1050 60 1600x1200 60 1920x1080 60 1920x1200 60 720X480P 60 1280X720P 60 1920X1080I 60 1920X1080P 60 720X576P 50 1280X720P 50... - Page 15 UNDER 2 UNDER 1 INFO MODE INFO PC(PC mode only) AUTO SETUP H_POSITION 0~60 (30) V_POSITION 0~60 (30) PHASE CLOCK WXGA/XGA WXGA RESET COLOR R OFFSET G OFFSET B OFFSET CONTRAST 0~60 COLOR BRIGHTNESS 0~60 0~60 SATURATION 0~60 SHARPNESS 0~30 MIDDLE...
- Page 16 HIGH VOLUME 0~100 40mS DELAY AUDIO 110mS 150mS SOUND MUTE SETUP FACTORY RESET KEY LOCK INFORMATION INPUT OUTPUT REVISION Note: Bold Italian fonts are the Factory default setting. ( ) are default settings.
-
Page 17: Input Resolution Support
6.8 Input Resolution Support INPUT RESOLUTION HDMI NTSC/PAL VGA@60/72/75 Hz SVGA@56/60/72/75 Hz XGA@60/70/75 Hz SXGA@60/75 Hz UXGA@60 Hz 1280×800@60 Hz 1680×1050RB@60 Hz 1920×1080@60 Hz 480i/576i ... -
Page 18: Connection Diagram
7. CONNECTION DIAGRAM PC/NB Video/DVD Player INPUT HDMI/ SERVICE HDMI AUDIO INPUT ENTER MENU 720P DC 24V RS-232 IN CAT5e/6/7 OUT Blaster Extender POWER MODE LINK Compatible Receiver HDMI unit with PoE function IR2 Blaster Power IR1 Extender Router with Internet Connection PC/NB... -
Page 19: Specifications
8. SPECIFICATIONS Output Video 300MHz / 10.2Gbps Bandwidth Ethernet Speed 100 Mbps Input Ports 1 x HDMI, 1 x PC, 1 x 3.5mm Phone Jack (L/R) , 1 x RS-232, 1×LAN, 1 x IR Extender Output Ports 1×CAT5e/6, 1×IR Blaster CAT5e/6/7 Output Up to 100 Meters Cable Distance... -
Page 20: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable CAT7 Category 7 Cable Composite Video Digital Visual Interface HDMI High-Definition Multimedia Interface Infrared WUXGA (RB) Widescreen Ultra Extended Graphics Array (Reduce blanking) - Page 21 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CH520TXAHS...
