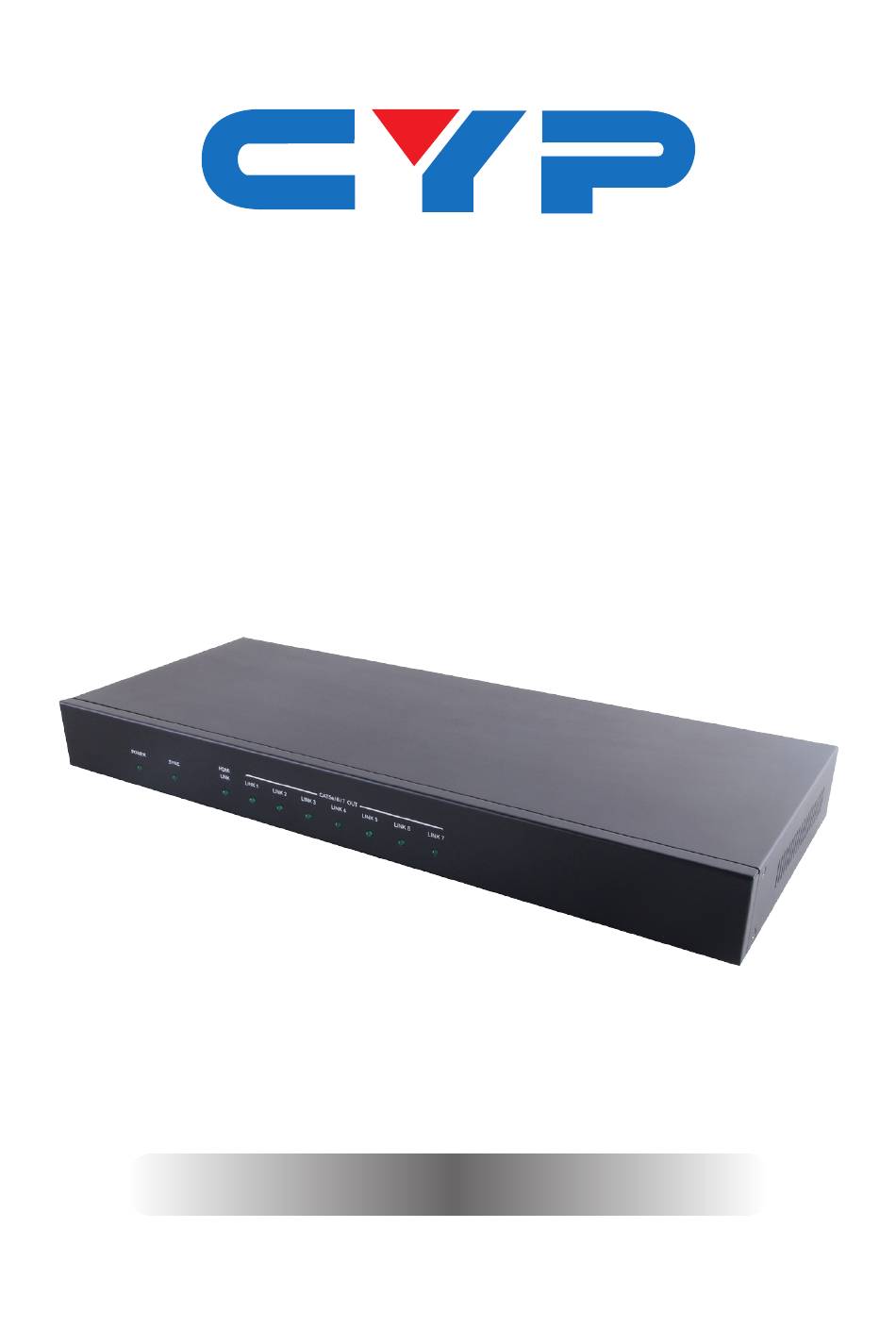

- Page 1 CHDBT-1H7CPL 1 by 8 HDMI over HDMI & CAT5e/6/7 Splitter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6.1 Front Panel ........3 6.2 Rear Panel .........3 6.3 IR Cable Pin Assignment....5 7. Connection Diagram ......6 8. -
Page 6: Introduction
1. INTRODUCTION The HDMI over HDMI and CAT5e/6/7 Splitter can split and distribute a single HDMI input and 2-way IR control up to seven CAT5e/6/7 outputs and includes a simultaneous HDMI bypass output. It supports resolutions up to 1080p Full HD, 4K×2K timing, 3D and multi-channel digital audio formats (such as LPCM 7.1CH, Dol-by TrueHD, Dolby Digital Plus and DTS-HD). -
Page 7: Features
5. FEATURES • HDMI with 3D & 4Kx2K supported, HDCP and DVI compliant • Simultaneous HDMI and CAT5e/6/7 outputs • Supports one HDTV and seven CAT5e/6/7 outputs • Supports data rate from 250Mbps up to 3Gbps • Supports wide range of PC resolutions from VGA to WUXGA and HDTV resolutions up to 4Kx2K (3840x2160@24/25/30Hz &... -
Page 8: Front Panel
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel CAT5e / 6 / 7 OUT HDMI POWER SYNC LINK LINK 1 LINK 2 LINK 3 LINK 4 LINK 5 LINK 6 LINK 7 POWER LED: Once the power supply is connected the LED will illuminate. - Page 9 EDID STD/TV: The default factory setting is on STD, leave as it is when the display is properly. When in TV mode the unit will detect the 1 CAT5e/6/7 output’s EDID when it obtain a 4Kx2K EDID and send out the signal accordingly to other output ports. If the 1 CAT5e/6/7 output is without a 4Kx2K's EDID the unit will detect all output's EDID and send out the signal that all outputs can accept.
-
Page 10: Ir Cable Pin Assignment
6.3 IR Cable Pin Assignment IR Blaster Power IR Blaster Signal IR Extender IR Signal Power Grounding... -
Page 11: Connection Diagram
7. CONNECTION DIAGRAM Blu-ray or PS3 Player HDMI CAT5e / 6 / 7 OUT HDMI IN HDMI OUT IR IN IR OUT DC 24V EDID SERVICE 1.5m 60° HDMI IR BLASTER IR2 Blaster Power 60° IR1 Extender HDMI Receiver IR RECEIVER 3D TV/Display 3D TV/Display... -
Page 12: Specifications
8. SPECIFICATIONS Video Bandwidth 340Mbps/10.2Gbps Input ports 1 x HDMI, 1 x IR IN, 1 x USB (Service only) Output ports 1 x HDMI, 1 x IR OUT, 7 x CAT5e/6/7 Resolution Up to 4Kx2K (3840x2160@24/25/30Hz & 50/60 YUV 420/4096x2160@24Hz & 50/60 YUV 420) HDMI Input &... -
Page 13: Cat5E/6/7 Cable Specification
8.1 CAT5e/6/7 Cable Specification Cable Range Pixel clock Video Data Supported Video Type rate Rate CAT5e/6/7 60 m <=225 MHz <=5.3 Gbps Up to 1080p, 60 Hz, 36 (HD Video) bits, 3D (data rates lower than 5.3 Gbps or below 225MHz TMDS clock) 40 m >225 MHz... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CHDBT-1H7CPL...
