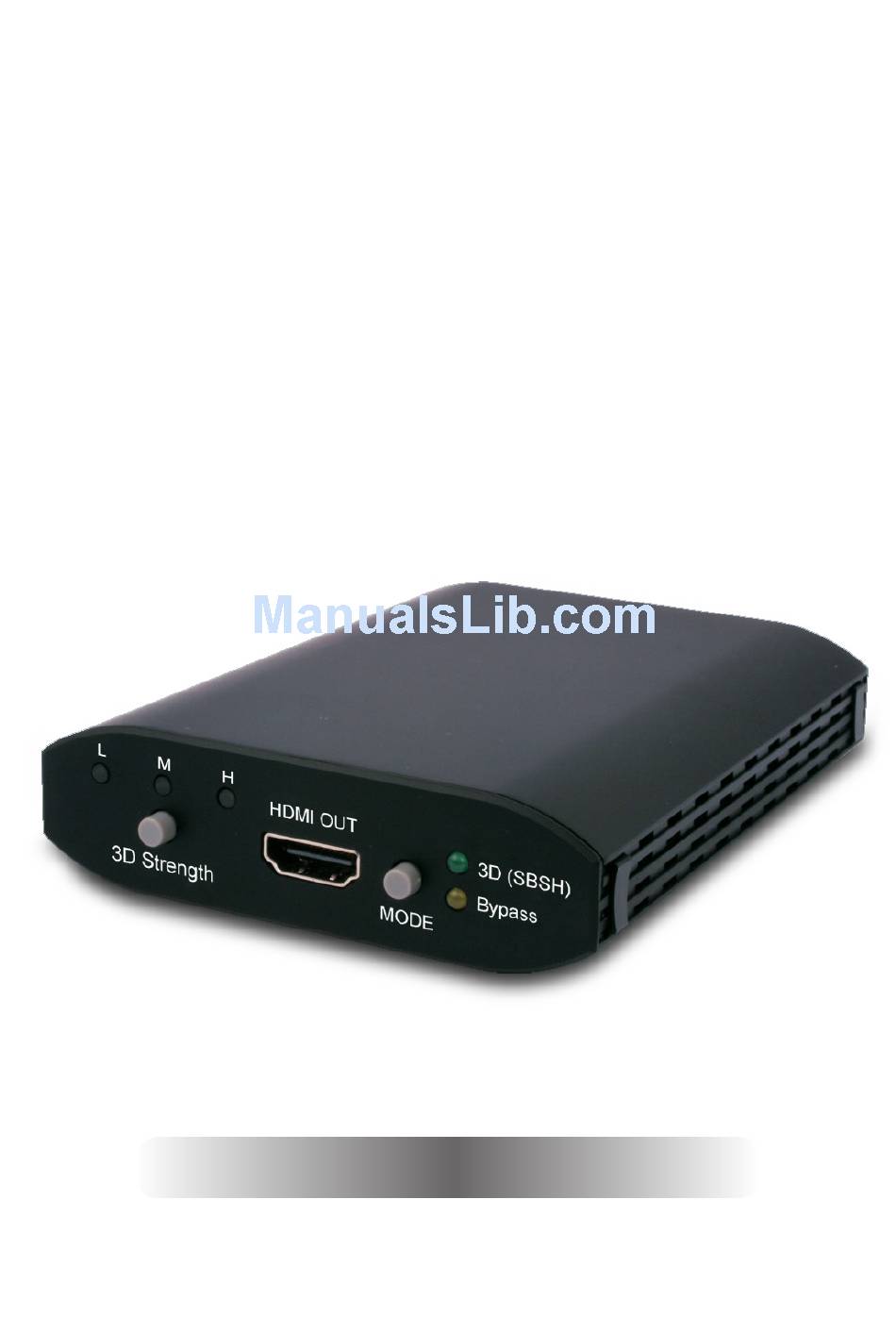

- Page 1 CH-2D3D 2D to 3D Converter Operation Manual Operation Manual...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 3: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents ........1 4. System Requirements ......1 5. Features ............ 1 6. Operation Controls and Functions ..2 6.1 Front Panel ..........2 6.2 Rear Panel...........3 7. Connection Diagram ......4 8. -
Page 4: Introduction
1. INTRODUCTION The 2D to 3D Converter offers real-time conversion of 2D content into 3D. Using this device you can easily create a 3D video using 3D TV/ display. Instead of purchasing expensive 3D DVDs, this device allows you to convert 2D formats into 3D formats, for instance 2D content to SBS (Side-by-side Half). -
Page 5: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel HDMI OUT 3D (SBSH) Bypass 3D Strength MODE 3D Strength Press to select 3D image strength (Low/Middle/High). HDMI OUT HDMI output to connect to the 3D ready HDMI display. Mode Select • Press the mode button to select SBS 3D (SBSH) or bypass mode. •... -
Page 6: Rear Panel
6.2 Rear Panel DC 5V HDMI IN DC 5V Plug the 5V DC power supply into the unit and connect the adaptor to an AC wall outlet. HDMI IN Connect the HDMI output of the 2D source the HDMI IN connector. -
Page 7: Connection Diagram
7. CONNECTION DIAGRAM DVD or Blu-ray Player 2D Video HDMI Cable HDMI OUT Front Panel 3D (SBSH) Bypass 3D Strength MODE DC 5V HDMI IN Rear Panel 3D Video Side by Side Half HDMI Cable 3D TV... -
Page 8: Specifications
8. SPECIFICATIONS TMDS Clock Frequency 148.5 MHz Color Depth 8-bit Color Space 4:2:2 YUV, RGB Input Port 1 × HDMI Output Port 1 × HDMI Bypass Resolution 480i, 480p@60, 576i, 576p@50, 720p@60, 720p@50, 1080i@50, 1080i@60, 1080p@24, 1080p@50, 1080p@60 2D to 3D Support Resolution 720p@60, 1080p@24, 1080p@60 Power Supply 5 V/2.6 A DC (US/EU standards, CE/...
