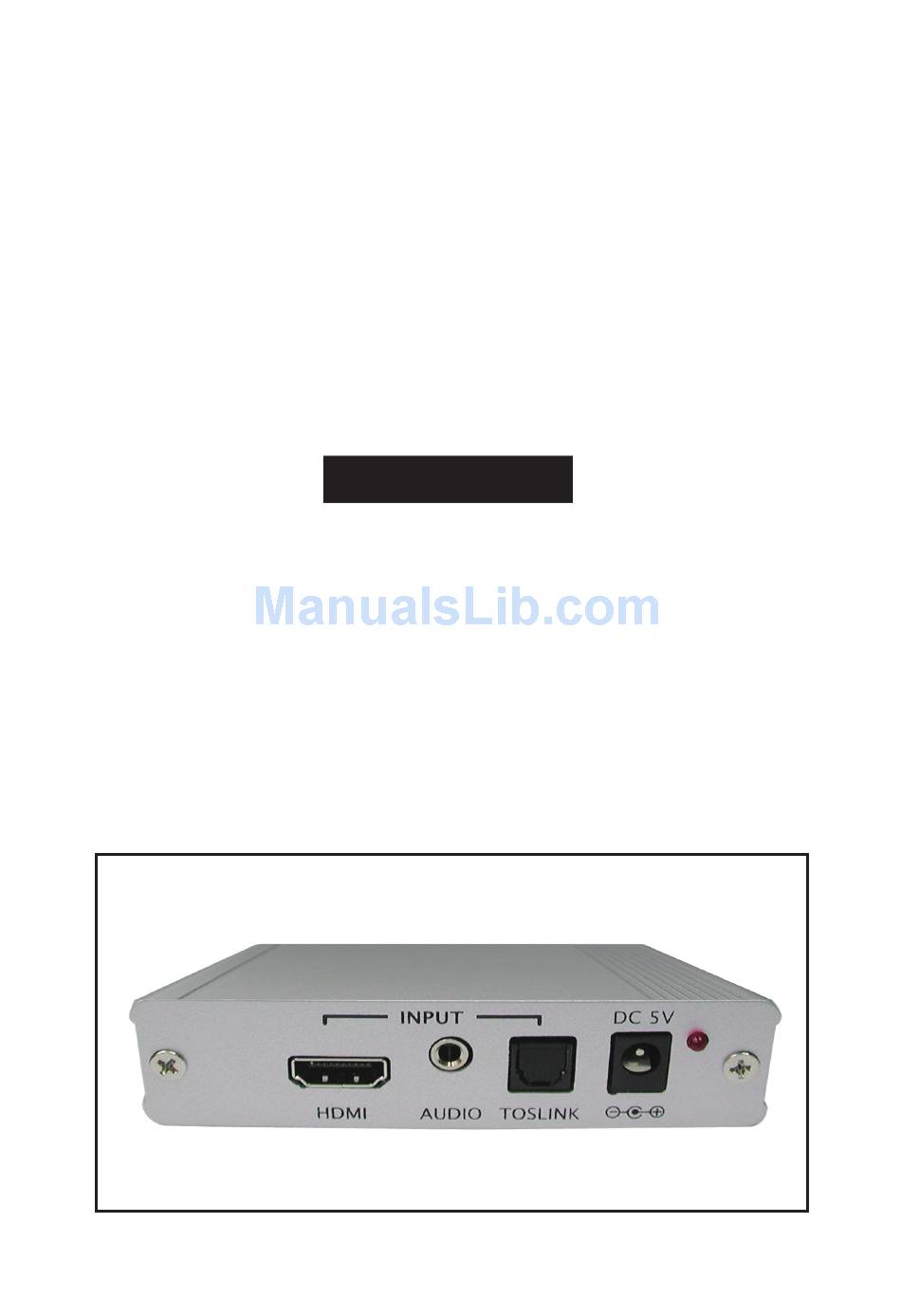

- Page 1 HDMI to HDMI Scaler Box Operation Manual CP-259H...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction................1 2. Features..................1 3. Package Contents..............1 4. Operation Controls and Functions......... 2 4.1 Front Panel................. 2 4.2 Rear Panel................3 4.3 OSD Operation..............4 5. Reset Functionality..............4 6. Specifications................5 6.1 General Specification............5 6.2 Support Resolution............. -
Page 3: Introduction
1. Introduction This is a compact yet versatile HDMI to HDMI Scaler Box. It accepts HDMI input with a separate Toslink or analog audio and scale it to HDMI output (at a number of selectable resolutions) with additional Toslink and analog audio output. -
Page 4: Operation Controls And Functions
4. Operation Controls and Functions 4.1. Front Panel OUTPUT MENU HDMI TOSLINK AUDIO 1. MENU Button: a. Press the MENU button to bring up OSD operation menu (see section "4.3 OSD Operation" for reference.) b. When in the OSD menu mode, use MENU button as an OK key to confirm the selection. -
Page 5: Rear Panel

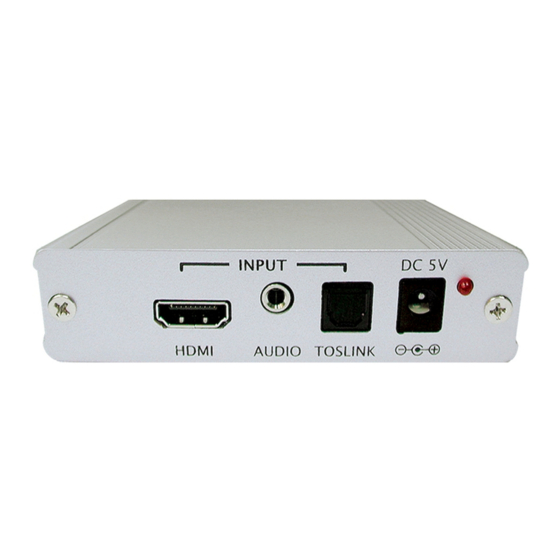

4.2. Rear Panel INPUT DC 5V HDMI AUDIO TOSLINK 1. HDMI INPUT: Connect the HDMI input port to the HDMI output port of your source equipment such as DVD player or Set-Top-Box. 2. AUDIO INPUT: Connect the analog audio input port to the output port of your source equipment such as DVD player or Set-Top-Box. -
Page 6: Osd Operation
4.3 OSD Operation Tier Option Tier Option Adjustment CONTRAST 0 ~ 100 of Contrast Level BRIGHTNESS 0 ~ 100 of Brightness Level - HUE 0 ~ 100 of Hue Level - SATURATION 0 ~ 100 of Saturation Level FINETUNE - SHARPNESS 0 ~ 100 of Sharpness Level - EXIT Back to 1 Tier... -
Page 7: Specifications
6. Specifications 6.1. General Specification * Frequency bandwidth: 1.65Gbps (single link) * Input Ports: HDMI x 1 / Toslink x 1 / 3.5mm Phone Jack x 1 * Output Ports: HDMI x 1 / Toslink x 1 / 3.5mm Phone Jack x 1 * 5V/2.6A DC power supply * Dimensions: 102(W) x 145(D) x 25(H)mm * Weight: 1Kgs... - Page 8 Cypress Scaler Box Series: Highest Product INPUT OUTPUT Resolution CP-259H HDMI HDMI 1080p Video/S-Video/ CP-255I PC/YPbPr/YCbCr/ HDMI 1080p HDMI YPbPr/YCbCr/PC/ DVI-D CP-255H 1080p DVI-D/HDMI HDMI YPbPr/YCbCr/PC/ CP-255D 1080p DVI-D DVI-D Video/S-Video/ YPbPr/HDTV CM-394 1080i SCART RGB/PC Video/S-Video/ CM-393S HDMI 1080i...
