Summary of Contents for CYP CPT-387HD
- Page 1 CPT-387HD HD to Video Converter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........1 6. Operation Controls and Functions ..2 6.1 Front Panel ........2 6.2 Rear Panel .........3 7. Connection and Installation ....4 8. -
Page 6: Introduction
1. INTRODUCTION This is an HD to Video with HD bypass scan converter. It is designed to convert a variety of analog component images, from 480p up to 1080p and converts them to NTSC or PAL standards video with extra HD images bypass. -
Page 7: Operation Controls And Functions

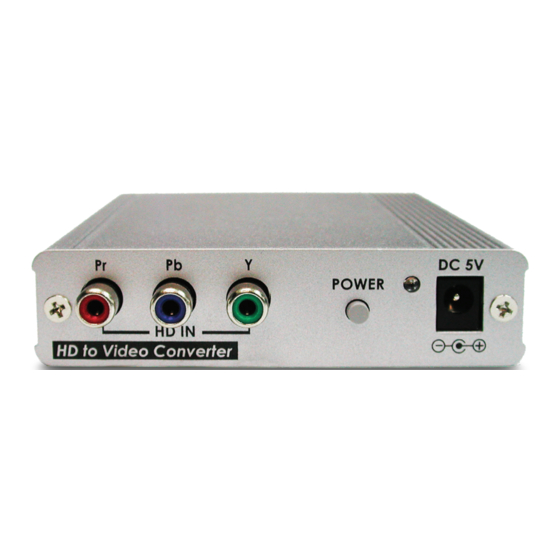

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel DC 5V POWER HD IN HD to Video Converter YPbPr HD IN These slots are to connect from source equipment such as DVD player or Set-Top-Box with component video cables. POWER Button Press this button to switch On or set the device to standby mode. -
Page 8: Rear Panel
6.2 Rear Panel S-Video Under Video Scan Over Scan NTSC HD Bypass UnderScan/OverScan Switch Switch to adjust the output image to be underscan or overscan on the display in order to view the full image. PAL/NTSC Switch Switch to PAL or NTSC system according to output display system and the device will perform the auto phase function. -
Page 9: Connection And Installation
7. CONNECTION AND INSTALLATION S-Video Under Video Scan Over Scan NTSC HD Bypass... -
Page 10: Specifications
8. SPECIFICATIONS Input Port 1 x Component (Y/Pb/Pr) Output Ports 1 x Component bypass (Y/Pb/Pr), 1 x Composite Video, 1 x S-Video Supports Input Resolution 480i/p@60, 576i/p@50, 720p@50/60, 1080i@50/60, 1080p@24/25/30/50/60 Switcher 1 x Overscan/Underscan, 1 x PAL/NTSC ESD Protection Human body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) Power Supply... -
Page 11: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM NTSC National Television System Committee Phase Alternating Line... - Page 13 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
