Summary of Contents for CYP CLUX-SDI2CSS

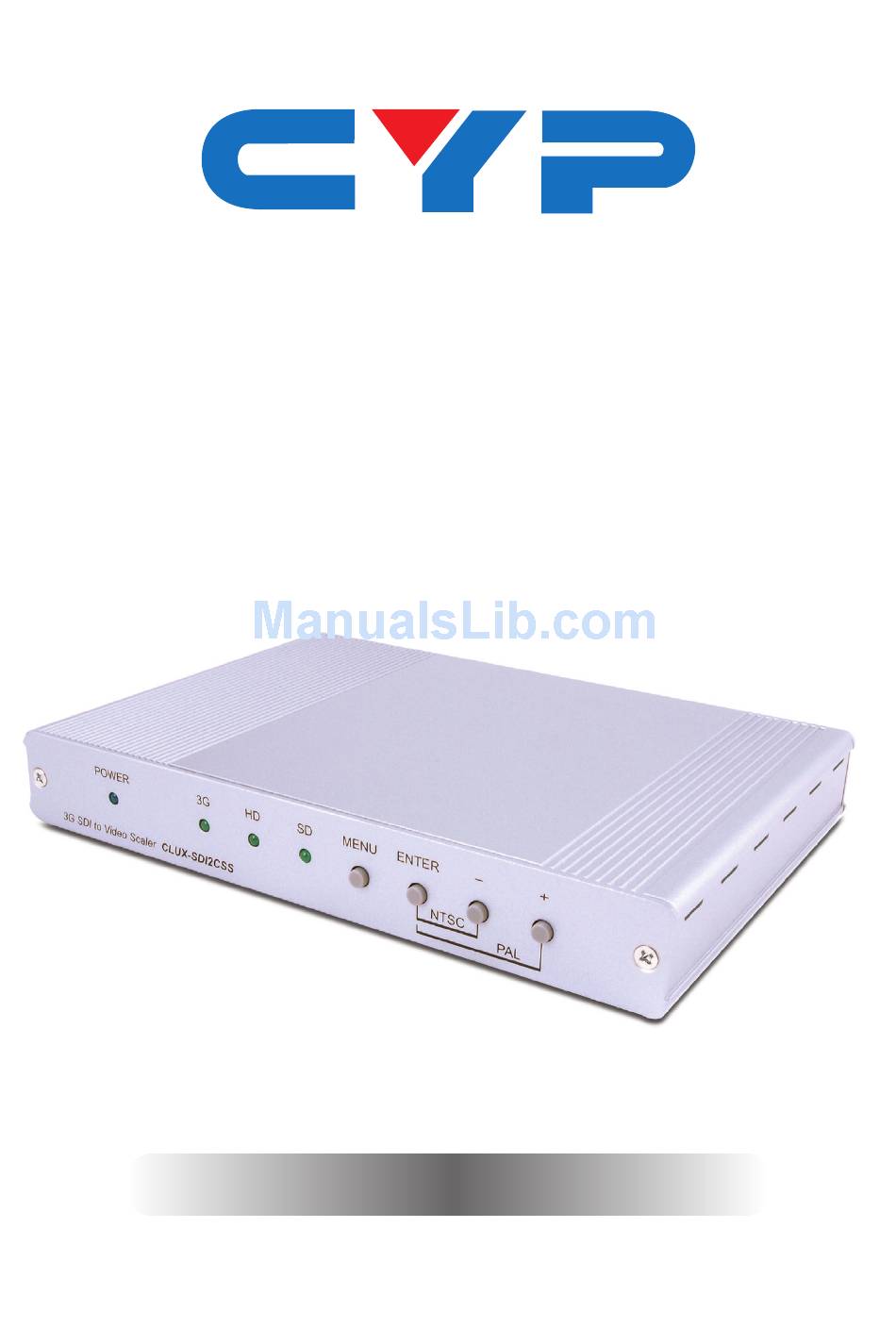

- Page 1 CLUX-SDI2CSS SDI to CV/SV Scaler with Audio Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 7 OSD Menu and Functions ...... 5 7.1 Display ..........6 7.2 Color ..........6 7.3 SDI Audio ...........7... -
Page 6: Introduction
1. INTRODUCTION The SDI to CV/SV Scaler allows SD, HD and 3G-SDI signals to be shown on CV/SV display. This means that it is now easier for professionals to distribute and extend their SDI signal while giving the ability to display work on PC/HD display. -
Page 7: Features
5. FEATURES • Supports SD-SDI, HD-SDI and 3G-SDI input signals with auto-detection • Supports CV/SV and SDI (bypass) output simultaneously • SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s • Supports SDI input/output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI) •... -
Page 8: Operation Controls And Functions
6.1 Front Panel POWER MENU ENTER NTSC 3G SDI to Video Scaler CLUX-SDI2CSS Power LED: The LED will illuminate blue when the device is connected to a power supply. 3G LED: This LED illuminate green when a 3G-SDI input signal is detected. -
Page 9: Rear Panel
6.2 Rear Panel AUDIO OUT S VIDEO VIDEO DC 5V SDI IN SDI OUT COAXIAL SDI IN: Connect to the SDI output of the SDI source device. Accepts SD,HD or 3G SDI signals. SDI OUT: Provides a 'loop-through' SDI signal output for connection to a SDI display. -
Page 10: Osd Menu And Functions
7 OSD MENU AND FUNCTIONS First Layer Second Layer Third Layer NTSC Output Full Over Scan Display Under 1 Size Under 2 Letter Box Pan Scan Exit Contrast 0~255 (105) Brightness 0~192 (96) 0~255 (128) 0~255 (128) Color 0~255 (128) R Offset 0~64 (32) G Offset... -
Page 11: Display
7.1 Display • Output: NTSC & PAL options are available for selection. • Size: Adjusts the displayed screen size from Full, Over Scan, Under Scan, Letter box or Pan scan to fit the current display size or aspect ratio. 7.2 Color •... -
Page 12: Sdi Audio
7.3 SDI Audio • Selects the SDI audio output from 4 different audio groups and each group's 2CH contents. If no audio output is required, the audio can also be muted by selecting 'OFF'. 7.4 Factory Reset • Select YES to return the unit to the factory settings. The default Factory Setting for Video display is 'Full Screen' (1024×768@60Hz), Color setting's factory default rate is the same as shown on the OSD and SDI audio is 'AUTO'. -
Page 13: Information
7.5 Information • Displays the source input format, the output display format and the unit's software version. -
Page 14: Connection Diagram
8. CONNECTION DIAGRAM SDI Camera SDI Display SDI Input SDI Output Power Supply AUDIO OUT S VIDEO VIDEO DC 5V SDI IN SDI OUT COAXIAL Composite Video (CVBS) Output S-Video Coaxial Stereo Output Digital Audio Audio Output Output Amplifier TV with S-Video/ Composite input... -
Page 15: Specifications
9. SPECIFICATIONS SMPTE Standard 425M Level A & B, 424M, 292M, 259M-C SDI Transmission Rates 2.970 Gbps and 2.970/1.001 Gbps, 1.485 Gbps, 1.485/1.001 Gbps, and 270 Mbps Input Port 1×BNC (SD/HD/3G-SDI) Output Port 1×BNC (SD/HD/3G-SDI bypass), 1×CV, 1×SV, 1×Coaxial, 1×R/L RCA Jack Video Output Support NTSC/PAL SDI Timing Support... -
Page 16: Acronyms
10. ACRONYMS ACRONYM COMPLETE TERM Bandwidth 2.97G bps ≈ 3G Serial Digital Interface... - Page 20 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
