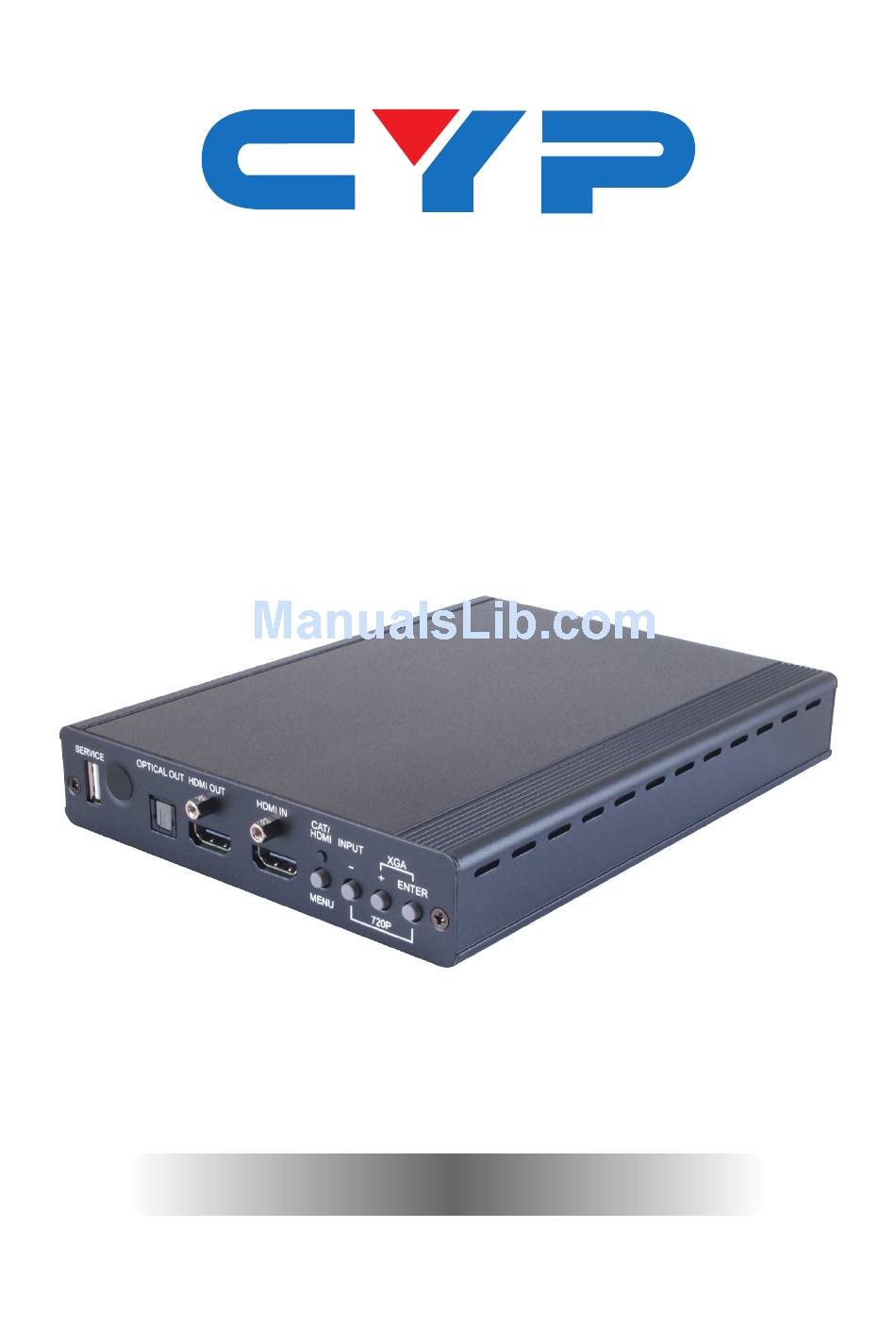

- Page 1 CH-521RXHS HDMI video scaler over CAT5e/6/7 with LAN/IR/RS- 232/Bidirectional PoE Receiver Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 IR Cable Pin Assignment ....5 6.4 RS-232 Pin Definitions ......5 6.5 RS-232 Commands ......6 6.6 Remote Control ........8... -
Page 6: Introduction
1. INTRODUCTION The HDMI video scaler with LAN/IR/RS-232/Bidirectional PoE over Single CAT5e/6/7 Receiver can receive uncompressed audio/video over a single run of CAT5e/6/7 cable up to 100m or over HDMI input with Bidirectional PoE feature. The system supports various ways of control that can be done through on-panel buttons, IR remote, RS-232 and OSD. -
Page 7: Features
5. FEATURES • Supports full range HDTV and PC output resolutions up to 1080p and WUXGA (RB) • Receive HDMI signal and scale up to HD output • Receive uncompressed data over a single 100 m/328 ft CAT5e/6/7 cable • 5Play™ convergence: Video, Audio, LAN, Bidirectional PoE & Control (IR &... -
Page 8: Operation Controls And Functions

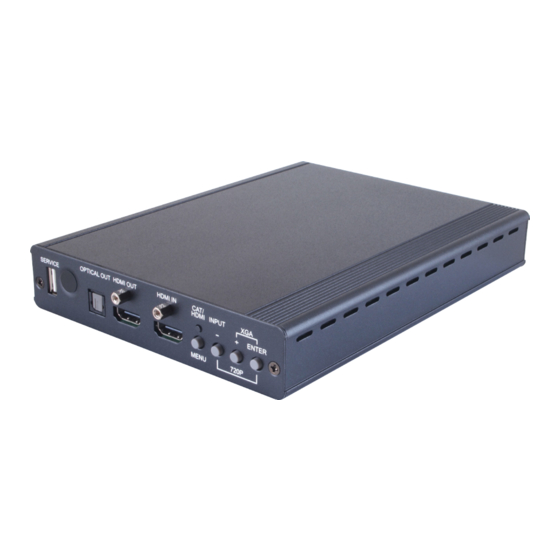

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel OPTICAL OUT HDMI OUT HDMI IN CAT/ SERVICE HDMI INPUT ENTER MENU 720P SERVICE: This port is reserved for firmware update only. IR: IR Receiver window (accepts the remote control signal of this device only). -
Page 9: Rear Panel
6.2 Rear Panel DC 24V RS-232 OUT CAT5e/6/7 IN Blaster Extender POWER MODE LINK Power LED: This LED will illuminate when the device is connected to a power supply. DC 24V: Plug the 24 V DC power supply into the unit and connect the adaptor to an AC outlet. -
Page 10: Ir Cable Pin Assignment
6.3 IR Cable Pin Assignment IR Blaster Power IR Blaster Signal IR Extender IR Signal Power Grounding 6.4 RS-232 Pin Definitions Define TX / RX TxD/RxD RxD/TxD Baud Rate: 9600bps Data bit: 8 bits Parity: None Flow Control: None Stop Bit: 1... -
Page 11: Rs-232 Commands
6.5 RS-232 Commands COMMAND DESCRIPTION S SOURCE 1~2 1=HDMI 2=CAT IN R SOURCE Reports the numerical equivalent for SOURCE setting (as above) S OUTPUT 0~25 0=Native 12=1600×1200 1=640×480 13=1920×1080 2=800×600 16=1920×1200 3=1024×768 17=480p 5=1360×768 18=720p@60 6=1280×720 19=1080p@60 7=1280×800 20=1080i@60 8=1280×1024 22=576p 9=1440×900 23=720p@50... - Page 12 R HUE Reports the numerical equivalent for HUE setting S SATURATION 0~60 Setups the numerical equivalent for SATURATION setting (as left) R SATURATION Reports the numerical equivalent for SATURATION setting S SHARPNESS 0~30 Setups the numerical equivalent for SHARPNESS setting (as left) R SHARPNESS Reports the numerical equivalent for SHARPNESS setting...
-
Page 13: Remote Control
6.6 Remote Control INPUT: Select input source from CAT or HDMI. EXIT: Press this button to exit the menu or escape the current selection under OSD. INPUT MENU: Press this button to enter into the OSD menu. EXIT MENU RESET: device back into the factory default setting. -
Page 14: Osd Menu
6.7 OSD Menu 1 st Layer 2 nd layer 3 rd Layer DISPLAY OUTPUT Native 640X480 60 800x600 60 1024x768 60 1360x768 60 1280x720 60 1280x800 60 1280x1024 60 1440x900 60 1400x1050 60 1680x1050 60 1600x1200 60 1920x1080 60 1920x1200 60 720X480P 60 1280X720P 60 1920X1080I 60... - Page 15 COLOR SIZE OVER SCAN FULL ASPECT RATIO PAN SCAN LETTER BOX UNDER 2 UNDER 1 INFO MODE INFO COLOR R OFFSET G OFFSET B OFFSET CONTRAST 0~60 BRIGHTNESS 0~60 0~60 SATURATION 0~60 SHARPNESS 0~60 MIDDLE HIGH AUDIO DELAY 40mS 110mS 150mS SOUND MUTE...
-
Page 16: Output Resolution Support
SETUP FACTORY RESET KEY LOCK INFORMATION INPUT OUTPUT REVISION Note: Bold Italian fonts are the Factory default setting. 6.8 Output Resolution Support INPUT RESOLUTION HDMI 480i/576i 480p/576p 720p@50/60 Hz 1080i@50/60 Hz 1080p@50/60 Hz VGA@60/72/75 Hz ... -
Page 17: Connection Diagram
7. CONNECTION DIAGRAM Display Digital Audio Output (Optical) HDMI OUT HDMI IN OPTICAL OUT CAT/ SERVICE HDMI INPUT ENTER 720P MENU DC 24V RS-232 OUT CAT5e/6/7 IN Blaster Extender POWER MODE LINK Compatible Transmitter unit with PoE function IR2 Blaster Power IR1 Extender RS-232 Equipped... -
Page 18: Specifications
8. SPECIFICATIONS Ethernet Speed 100 Mbps Input Video Bandwidth 300MHz / 10.2Gbps Output Video bandwidth 165MHz / 1.65Gbps Input Ports 1x CAT5e/6/7, 1 x IR Extender, 1 x HDMI Output Ports 1 x HDMI, 1×IR Blaster, 1 x Optical , 1 x RS-232, 1×LAN CAT5e/6/7 Output Cable... -
Page 19: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable CAT7 Category 7 Cable HDMI High-Definition Multimedia Interface Infrared WUXGA (RB) Widescreen Ultra Extended Graphics Array (Reduce blanking) - Page 20 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CH521RXHS...
