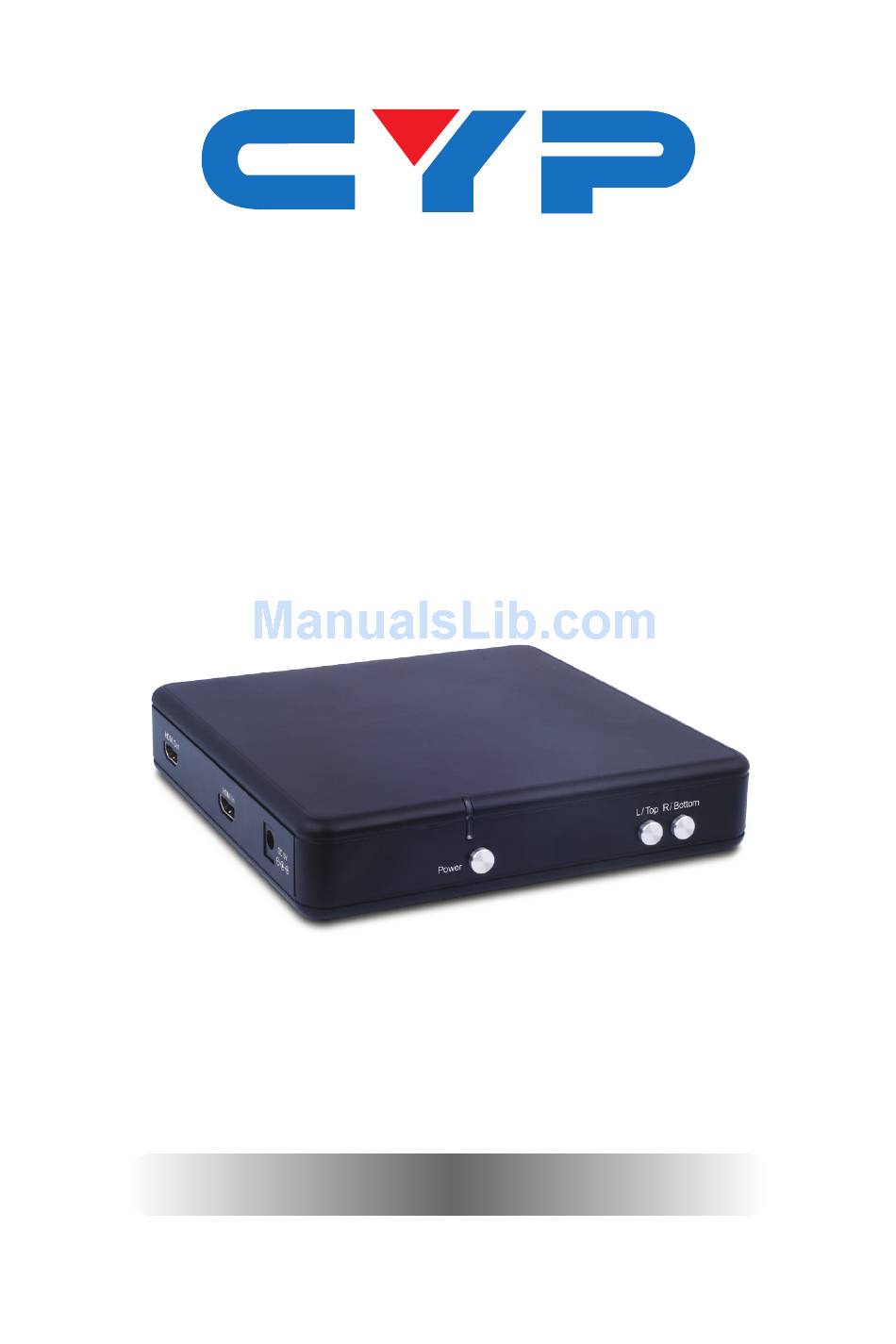

- Page 1 CH-322 3D Demultiplexer and Converter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 7. Connection Diagram ......5 8. -
Page 6: Introduction
1. INTRODUCTION The 3D Demultiplexer is a device used to separate a 3D signal into it's left and right signals for sending to two 2D projectors. The 3D signal must be sent via a 1 to 2 HDMI splitter and each of the two 3D signals must be passed through a 3D Demultiplexer whereby the left or right signal can then be outputted to be passed through to each of the two 2D projectors. -
Page 7: Features
5. FEATURES • Supports 3D content separations for Left/Right fields • Automatically detects 2D or 3D contents • Automatically detects if 3D content is Side-by-Side or Frame Packing • Input resolution supports: - 2D: 480i/p, 576i/p, 720p@50/60, 1080i@50/60 and 1080p@50/60 - 3D: 720p@50/60 (Frame Packing and Side-by-Side), 1080p@24 (Frame Packing) •... -
Page 8: Operation Controls And Functions

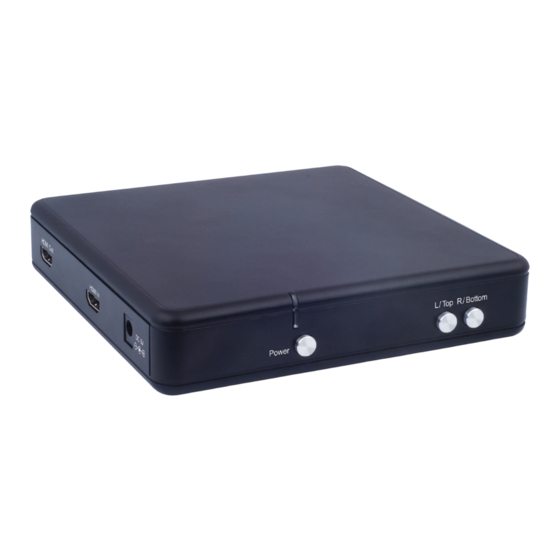

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel L/ Top R/ Bottom Power Power Press this button to switch on the device, the LED will illuminate in green. Press it again to set the device to standby mode, the LED will illuminate in red. -
Page 9: Rear Panel
6.2 Rear Panel HDMI Out HDMI In DC 5V HDMI Out Connect to the HDMI input of a TV/projector with an HDMI cable or HDMI to DVI cable or adaptor. HDMI In Connect to a 3D source such as Blu-ray player with HDMI cable or DVI to HDMI cable or adaptor. -
Page 10: Connection Diagram
7. CONNECTION DIAGRAM Example 1: 3D Source (Blu-ray Player) 3D Demultiplexer Control System HDMI Input HDMI OUT 1 HDMI OUT 2 1×2 HDMI Splitter CLUX-12S HDMI 1.3 SPLITTER HDMI HDMI Output Output 3D Demultiplexer 3D Demultiplexer HDMI Out HDMI In HDMI Out HDMI In R/Bottom... - Page 11 Example 2a: 3D Source (Blu-ray Player) Convert 3D to 2D output for non-3D Display HDMI Input Power Supply HDMI Out HDMI In Demultiplexer DC 5V HDMI Output 2D TV/Monitor...
- Page 12 Example 2b: 3D Source (Blu-ray Player) Share 3D output with 3D and 2D Displays HDMI Input HDMI OUT 1 HDMI OUT 2 1×2 HDMI Splitter CLUX-12S HDMI 1.3 SPLITTER HDMI HDMI Input Output HDMI Out HDMI In Demultiplexer DC 5V HDMI Output 2D TV/...
-
Page 13: Specifications
8. SPECIFICATIONS Input 1×HDMI Output 1×HDMI Input Resolution 2D: 480i/p, 576i/p, 720p@50/60, 1080i@50/60 & 1080p@50/60 3D: 720p@50/60 (Frame Packing and Side- by-Side) & 1080p@24 (Frame Packing) Output Resolution 1080p@60 Hz ESD Protection Human-body Model: ± 8kV (air-gap discharge) ± 4kV (contact discharge) Power Supply 5 V / 3 A DC (US/EU standards, CE/FCC/UL certified) -
Page 14: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Digital Visual Interface HDMI High Definition Multimedia Interface... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
