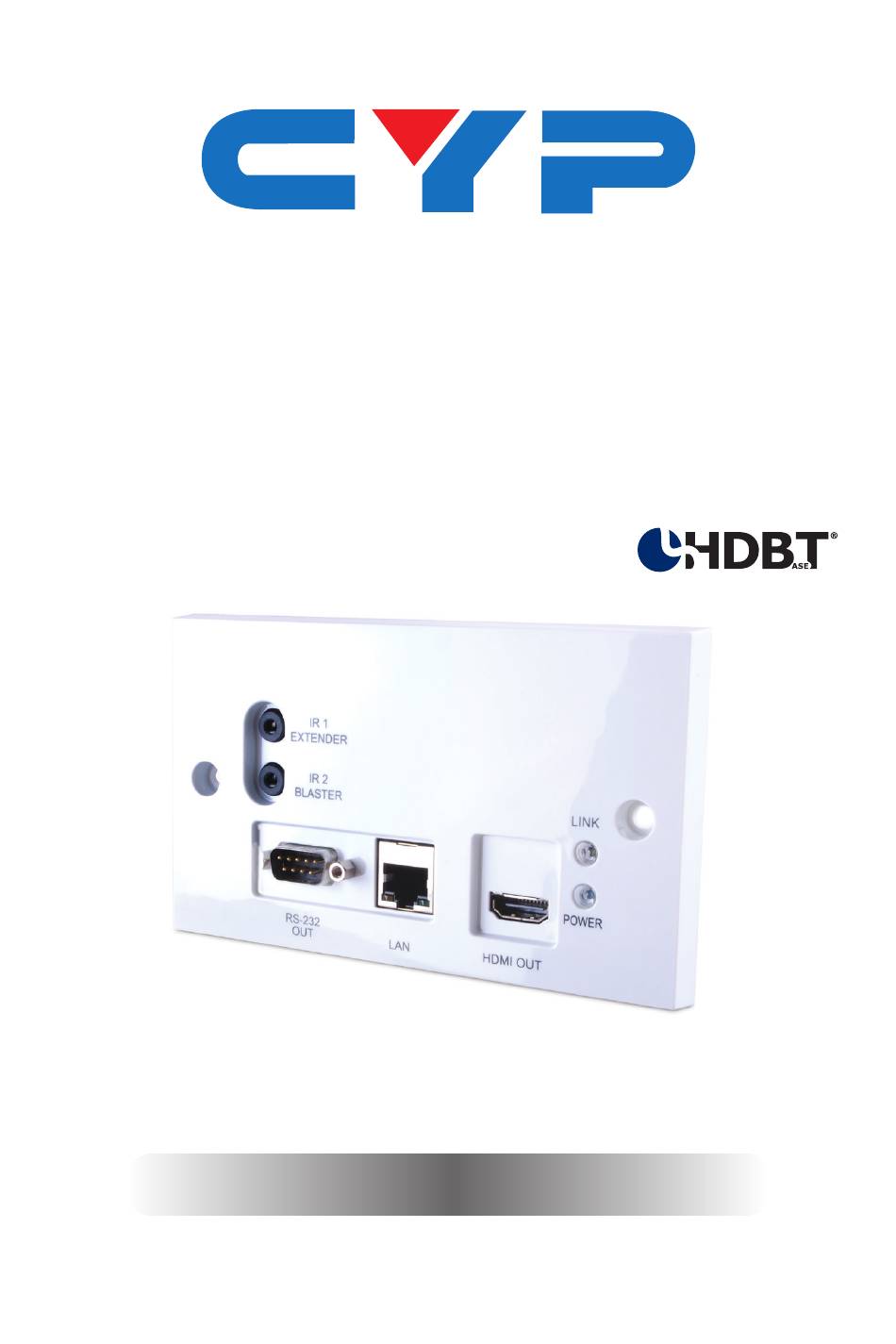

- Page 1 CH-507RXWP HDMI over Single CAT5e/6/7 Wall-plate Receiver Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Receiver Front Panel ......3 6.2 Receiver Rear Panel ......4 6.3 IR Cable Pin Assignment....4 6.4 D-sub 9-pin Cable Definitions ..5 7. -
Page 6: Introduction
1. INTRODUCTION The HDMI over Single CAT5e/6/7 Wall-plate Receiver is designed to receive uncompressed video, audio and IR control data from a compatible transmitter over a single run of CAT5e/6/7 cable at a distance of up to 100 meters at 1080p or 70 meters at 4K. It has the added benefit of control through the built-in RS-232 and IR ports and a bi-directional LAN serving connection. -
Page 7: Features
5. FEATURES • HDMI 1.x and DVI 1.0 compliant • HDCP compliant • Supports HDMI 3D and 4K x 2K features • Supports HDCP repeater and CEC bypass • Supports distance up to 100m/328ft at 1080p and 70m/229ft at 4K through CAT5e/6/7 cable •... -
Page 8: Operation Controls And Functions

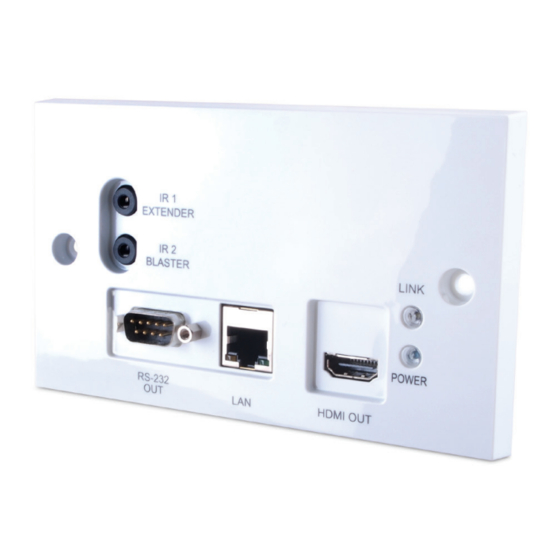

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Receiver Front Panel IR 1 EXTENDER IR 2 BLASTER LINK POWER RS-232 HDMI OUT IR 1 EXTENDER: Connect an IR Extender cable for IR signal reception. Signals received will be transmitted from any IR blaster connected to the transmitter unit. -
Page 9: Receiver Rear Panel
6.2 Receiver Rear Panel CAT5e/6/7 IN: Connect to the transmitter unit with a single CAT5e/6/7 cable for transmission of all data signals. 6.3 IR Cable Pin Assignment IR Blaster Power IR Blaster Signal IR Extender IR Signal Power Ground... -
Page 10: D-Sub 9-Pin Cable Definitions
6.4 D-sub 9-pin Cable Definitions DEFINITION TxD/RxD RxD/TxD... -
Page 11: Connection Diagram
7. CONNECTION DIAGRAM Option 1: Point to Point RS-232 Equipped PC or Notebook DVD/Blu-ray Player Internet Router HDMI Input Connection RS-232 1.5m 60° IR Blaster 60° Compatible Transmitter RS-232 In HDMI In IR Extender Transmitter HDMI to CAT5e/6 with LAN/IR/RS232 IR1 Blaster unit with PoC Power... -
Page 12: Option 2: Matrix System
Option 2: Matrix System TV/Display Extender CAT 5e/6/7 Cable HDMI 1.5m (LAN Serving) Output 60° IR Blaster 60° IR 1 EXTENDER IR 2 BLASTER LINK POWER RS-232 HDMI OUT Single Internet CAT5e/6/7 Router Cable Up to 7 Other Zones HDBaseT IR OUT IR OUT IR OUT... -
Page 13: Specifications
8. SPECIFICATIONS 8.1 Technical Specification Video Bandwidth 300 MHz/9Gbps Input Ports 1×CAT5e/6/7,1×LAN, 1×IR Extender Outpu t Ports 1×HDMI,1×RS-232, 1×IR Blaster IR Frequency 30 - 50kHz (30 - 60kHz under ideal conditions) Baud Rate up to 115200/sec ESD Protection Human-body Model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) Dimensions... -
Page 14: Cable Specifications
8.2 Cable Specifications 1080p 4K30 4K60 (4:4:4) (4:2:0) Cable Length 8-bit 12-bit 8-bit 8-bit High Speed HDMI Cable HDMI Input HDMI Output Ethernet Cable Cat.5e/6/7 100m • 1080p (FHD Video) - Up to 1080p@60Hz, 12-bit color - Data rates lower than 5.3Gbps or below 225MHz TMDS clock •... -
Page 15: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable Consumer Electronics Control Digital Visual Interface HDCP High-bandwidth Digital Content Protection HDMI High Definition Multimedia Interface Infrared... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
