EXER-70 MANUAL
AUTO TENSION BIKE
IMPORTANT!
Please read all instructions carefully before using this product.
Retain this manual for future reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the EXER-70 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LifeSpan EXER-70

Summary of Contents for LifeSpan EXER-70

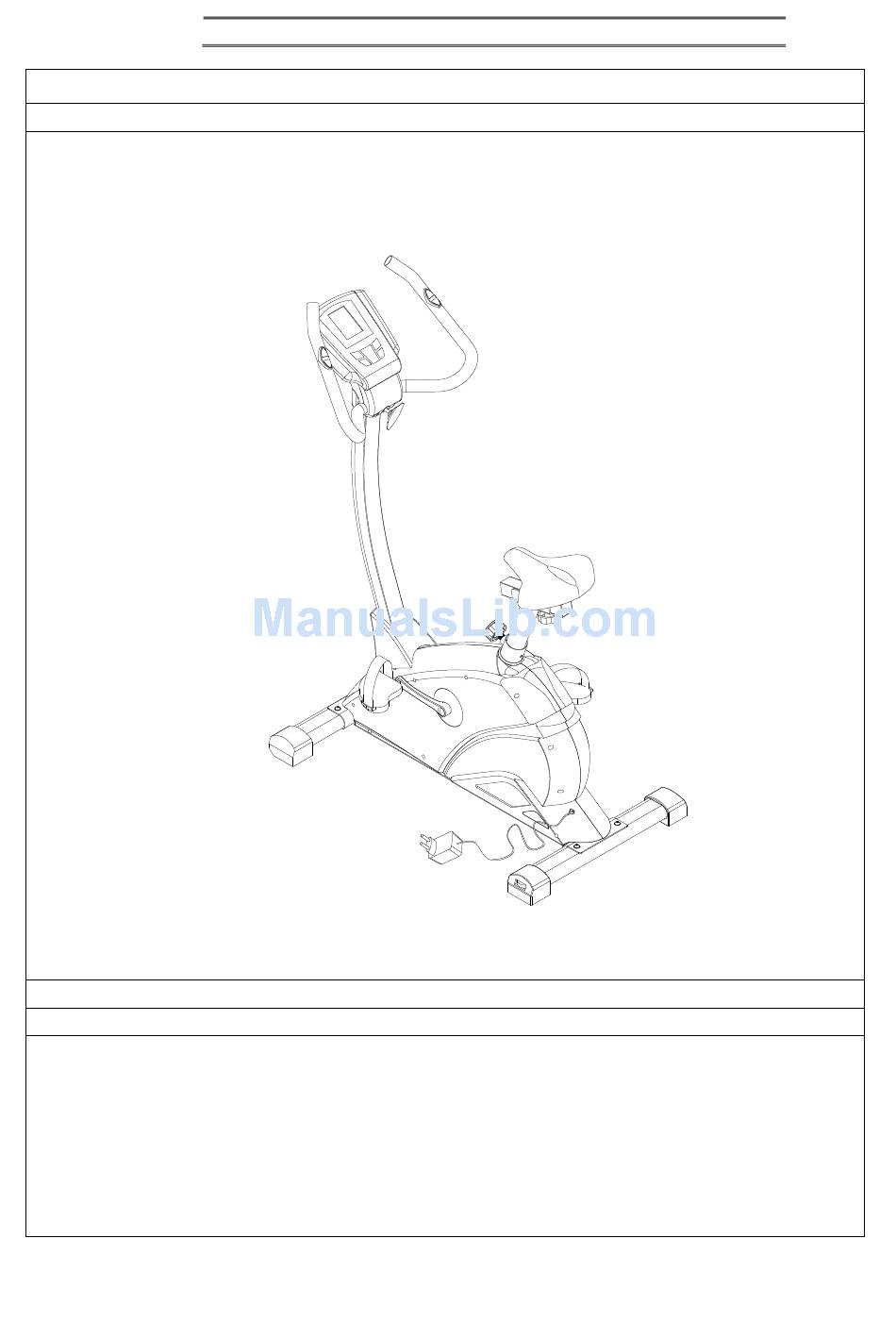

  • Page 1 EXER-70 MANUAL AUTO TENSION BIKE IMPORTANT! Please read all instructions carefully before using this product. Retain this manual for future reference.

  • Page 2: Important Safety Information

    Important Safety Information Please keep this manual in a safe place for easy reference. 1. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly.
  • Page 3 EXPLODE-VIEW:...
  • Page 4 PARTS LIST： Q’TY Q’TY DESCRIPTION DESCRIPTION BOLT M8*45 MOTOR WASHER ID8.5*OD16 31a,b,c SENSOR WIRE OF COMPUTER 1set BOLT M8*16 SCREW SCREW M4*20 END CAP KNOB M8 U STYPE BUSHING SLEEVE HANDLE COVER (FRONT) SCREW M4*12 HANDLE COVER (REAR) KNOB M16 COVER KNOB M10 FOAM SPONGE...
  • Page 5 Assembly pack check list with detailed images.

  • Page 6: Main Frame,

    ASSEMBLY STEPS: Step 1: Assemble the front bottom tube and back bottom tube to the main frame, tighten the bottom tube with wrench (#L),bolt(#A) and washer(#B).
  • Page 7 Step 2: According the picture tighten the pedal (#10L/R) with wrench (#M). LEFT SIDE RIGHT SIDE...

  • Page 8: Handlebar

    Step 3: 1. Assemble the cover (#37) to the handlebar assemble (#4), and then connect the tension knob, cable (#31a/b) and sensor wire (#31a/b), according to the picture. 2. Pull up the cover, insert the handlebar assemble (#4) into the main frame (#1), tighten them with bolt (#C) and washer (#B).

  • Page 9: Computer 1

    Step 4: Attach the computer with #G screws.
  • Page 10 Step 5: Assemble the handle(#5)to the handle cover(front#35), and then tighten the handle cover(front#35) with sleeve(#F) and knob(#E), tighten the handle cover(rear#36) with screw(#D) and screw(#D).

  • Page 11: Saddle (

    Step 6: The knob (#H) is available in the main frame. After attaching the saddle (#9) with the saddle tube (#8)， please secure tightly by tool S14.

  • Page 12: Adaptor

    Step 7: Please insert the adaptor (47) into the socket.
  • Page 13 Get the desired distance between the handle bar and the saddle by adjusting the knob. How to adjust the seat’s height: A. turn the knob about three circles in the counterclockwise direction. B. one hand pulls the knob out at all time and the other hand moves the seat post to the desired place.
