OPTIONAL EQUIPMENT

4.1

ARP Kit ARP-11

The ARP kit provides automatic radar plotter functions to this radar.
Necessary parts
Name
Type
Code No.
For the contents of the kit, see the packing list attached to the kit.

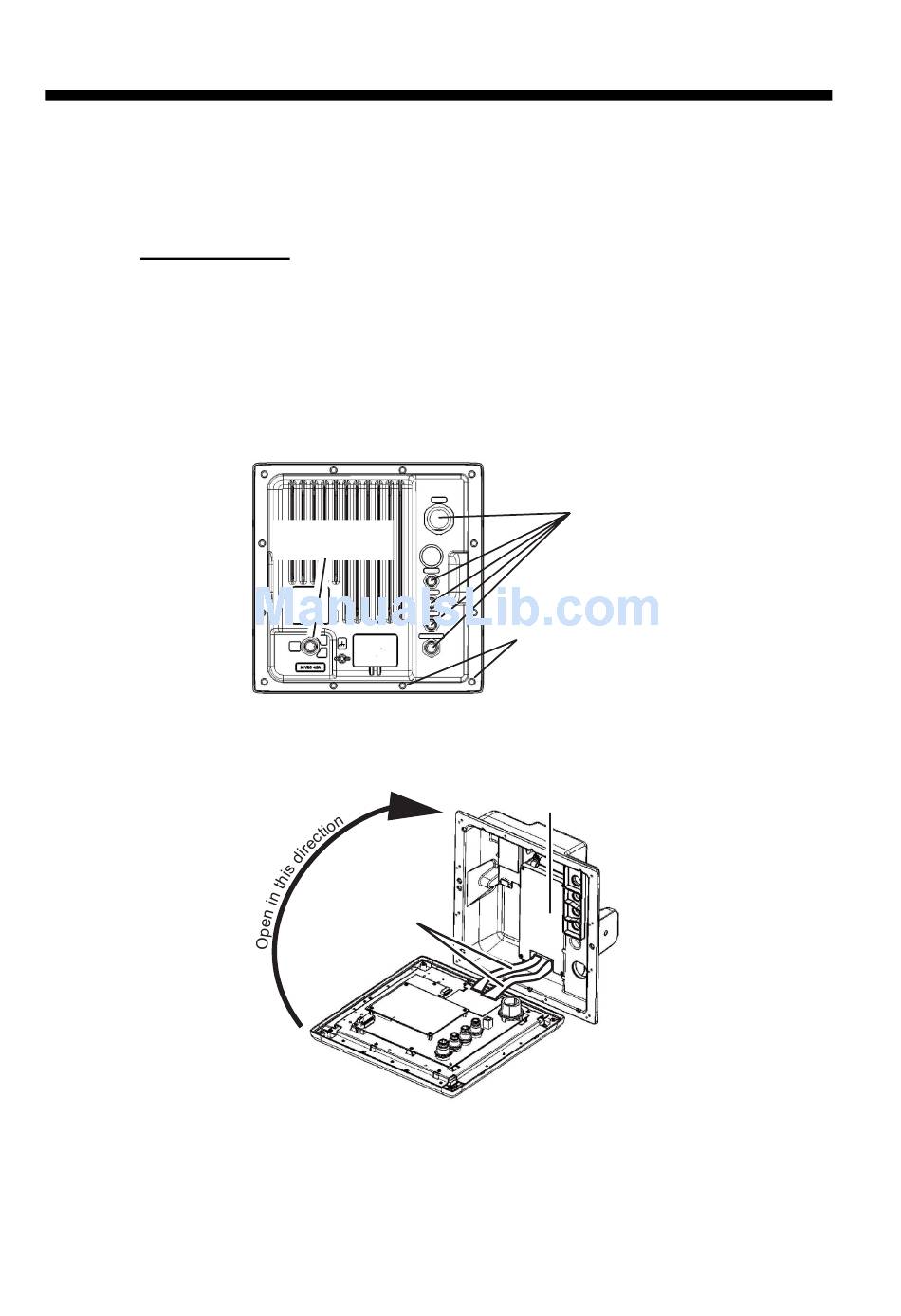

1. Unscrew 12 screws and five connector nuts at the rear of the display unit. (See
the figure below.)
2. Lift the cover slowly and open it as shown below, taking care not to damage the
SPU cables.
ARP kit
ARP-11
008-523-050
Do not remove
this nut
SPU Cables
31
Connector nuts x 5
Screws x 12
Clear cover
