1.2.4
How to connect the signal cable (FR-8045)
The signal cable runs from the display unit to the antenna unit. To reduce the electrical
interference, do not run the signal cable near other electrical equipment. Also do not
run the cable in parallel to power cables. Put the cable through the hole and apply
sealing compound around the hole for waterproofing.

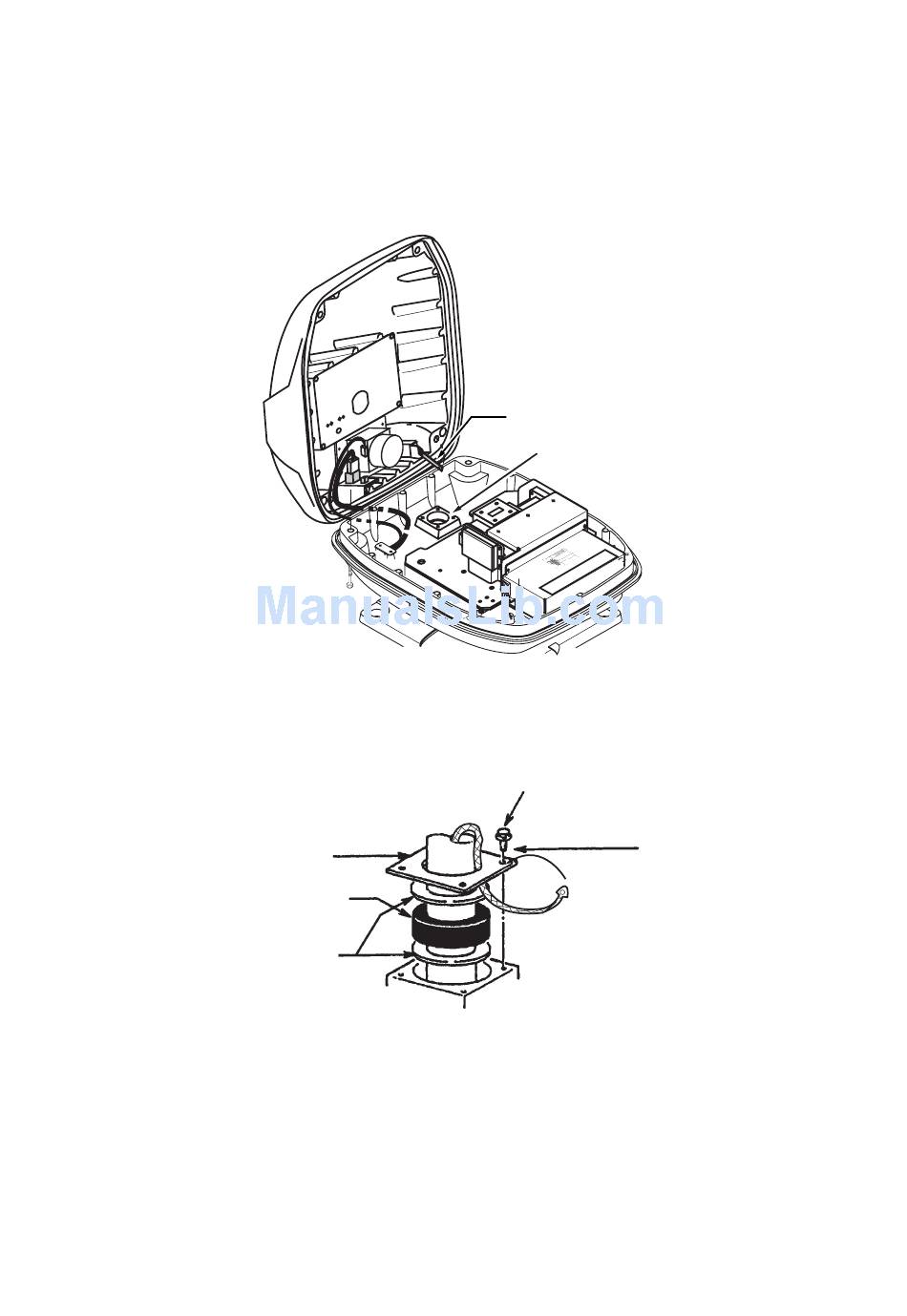

1. Loosen four bolts, open the antenna cover, and set the stay.
2. Loosen the cable gland assembly (plate, gasket, flat washer).
3. Put the signal cable with the connector through the bottom of the antenna unit
chassis. Put the cable through the gland assembly as shown below.
4. Fasten the crimp-on lug of the shield wire to one of the four fixing bolts of the cable
gland assembly.
Bolt
Plate
Gasket
Flat
washer
10
1. HOW TO INSTALL THE SYSTEM
Stay
Cable gland assy.
Bolt
4 - M4×16
Shield wire
