2. CABLE CONNECTION
AND WIRING
2.1

Standard Connection

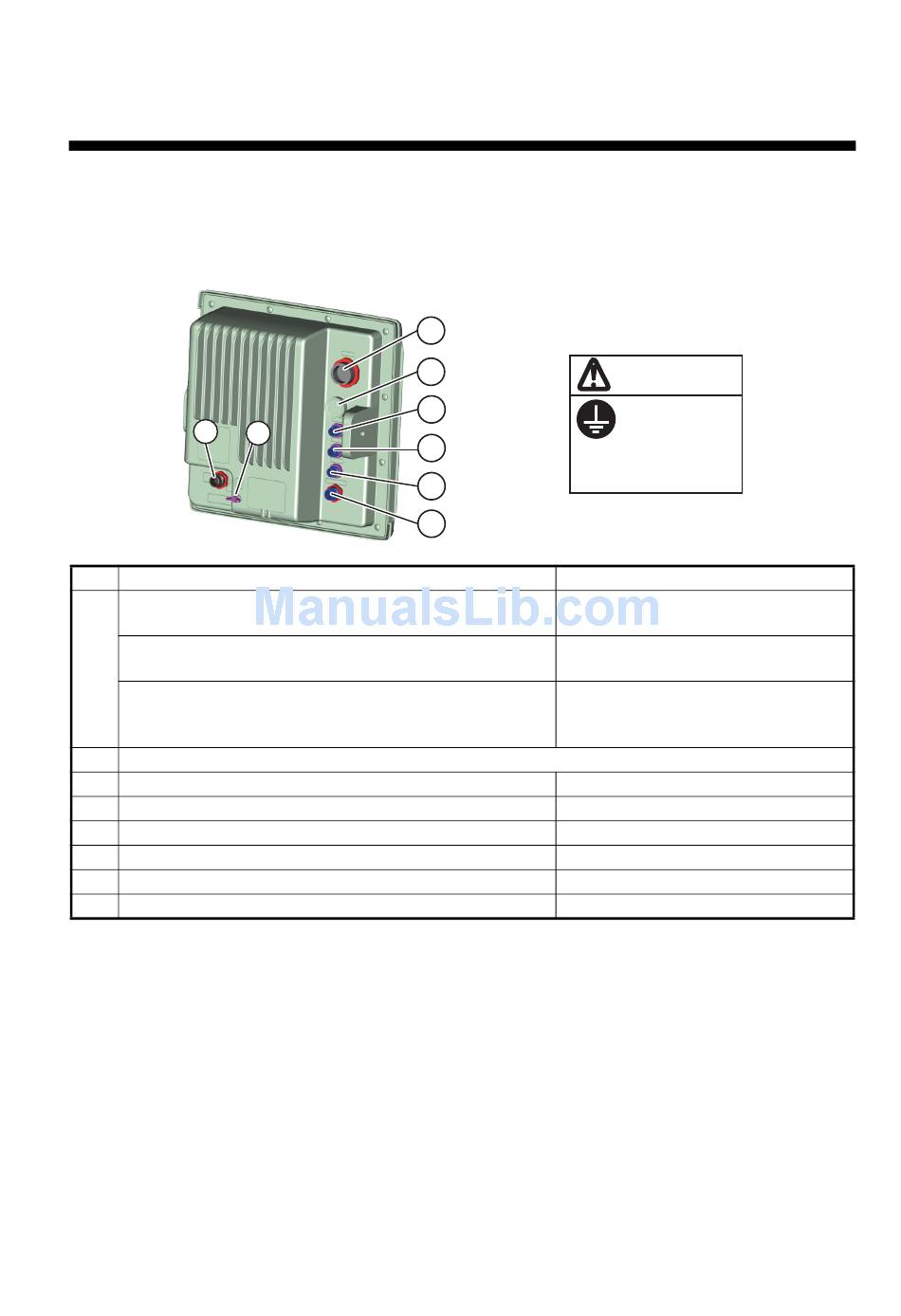

Connect all necessary cables, using the figure and table below for reference.
7
No.
Antenna cable to antenna unit (FR-8045)
Antenna cable to antenna unit. (FR-8065/8125)
1
Antenna cable to antenna unit. (FR-8255)
2 USB (Used by service man only).
3 Heading Sensor. (AD-10 format)
4 NMEA1 input/output. (Navigational equipment)
5 NMEA2 input/output. (Navigational equipment)
6 Option. (External buzzer, Remote display)
7 Power in. To ship's power (pos = white, neg = black)
8 Grounding. Connect from here to ship's terminal.
8
Description
1
2
3
4
5
6
MJ-B24LPF0005-*+R
*: 50/100/150/200/300
MJ-B24LPF0012-*+R
*: 100/150/200/300
• MJ-B24LPF0011-050+R
• RW-9771 (10m, 15m, 20m, 30m)
• VL3P-VV-S2X2C-AA050
(MJ-A6SPF0007-100C)
(MJ-A7SPF0007-050C)
(MJ-A7SPF0007-050C)
(See section 4.2 for cabling.)
(MJ-A3SPF0017-050ZC)
IV-2sq.
20
CAUTION
Ground the
equipment to
prevent
interference.
Cable Required
