1. HOW TO INSTALL THE SYSTEM
1.3

Power Supply Unit

A power supply unit is shipped with the FR-8255, because of its high power consump-
tion.
The power supply unit can be installed almost anywhere provided the location is dry,
well-ventilated, sufficient maintenance space is provided and is installed within 5 m
(cable length) from the display unit. To fix the unit, use four self-tapping screws (5x20).
Note: Do not install the power supply unit on the overhead; install it on the deck or
bulkhead.

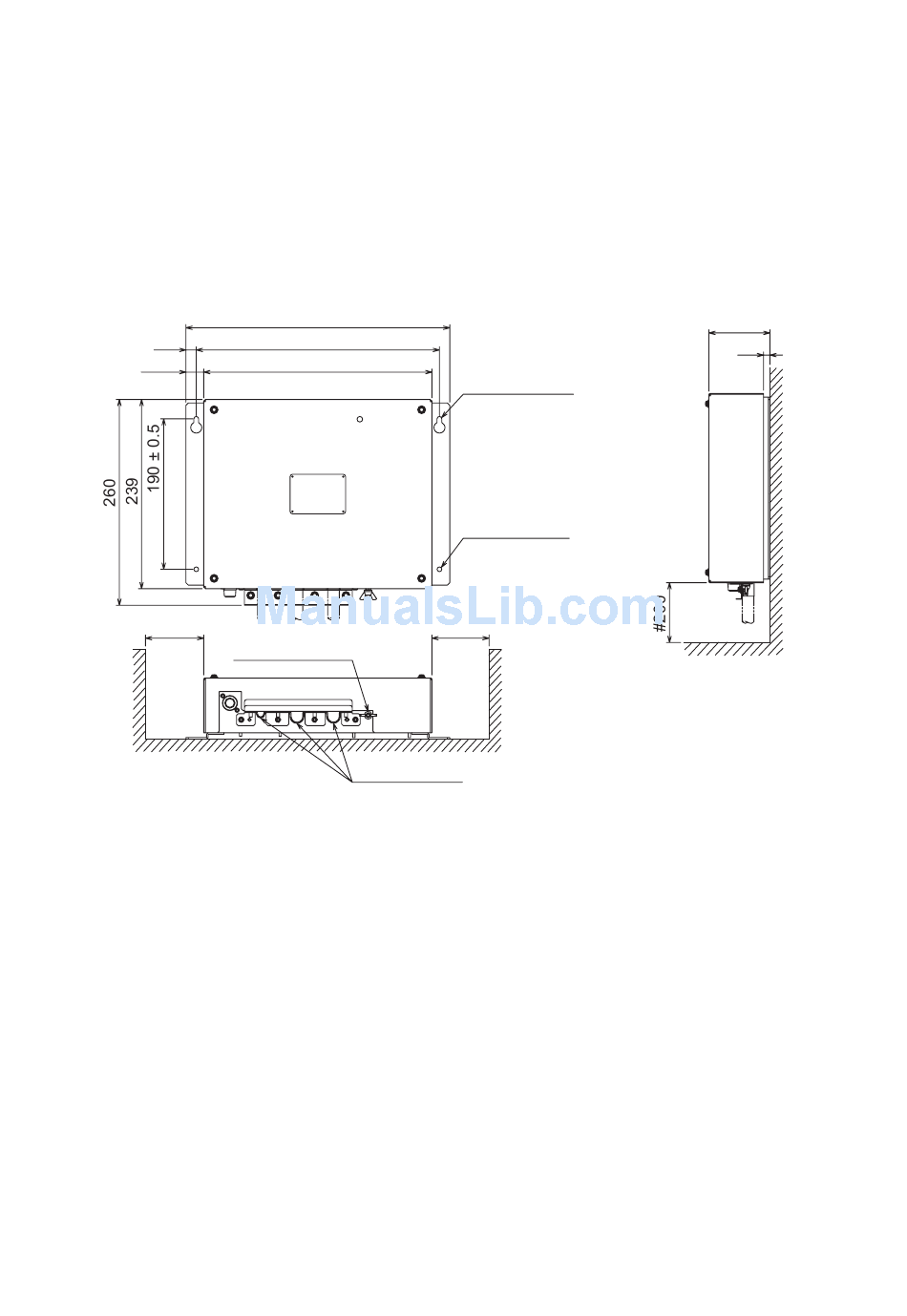

13
22.5
#100
333
370 ± 0.5
288
GND TERMINAL
CABLE ENTRY
Power supply unit
2 - R3
FIXING NOTCH
2 - 6
ø
FIXING HOLES
#100
19
77
8
#: Service space
