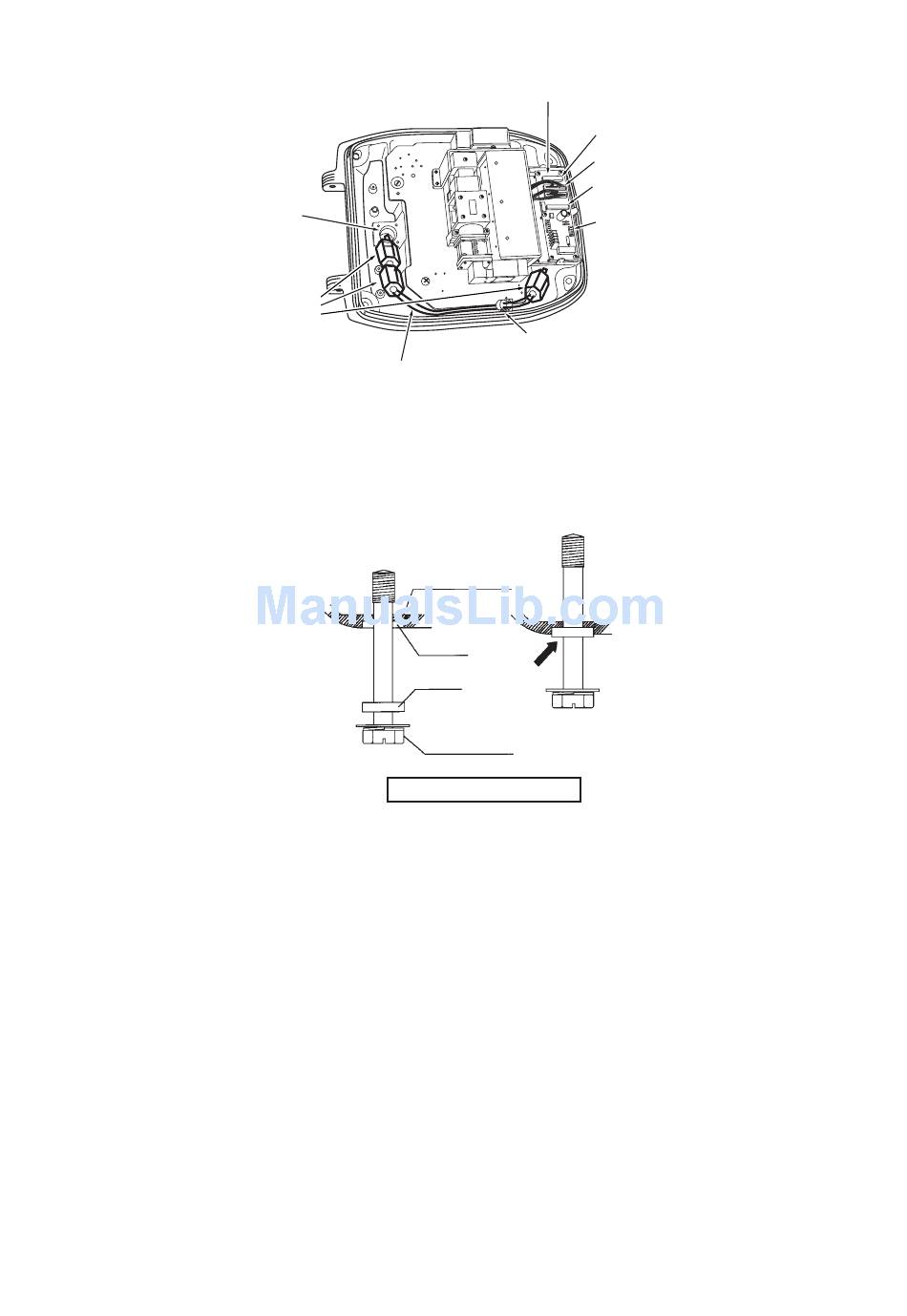

9. Attach three EMI cores to the signal cable as shown below.
Lead in
cable here.
EMI core
RFC-13
10. Fasten the signal cable with the cable clamp.
11. Undo the stay and close the cover. Securely fasten the scanner bolts.
Note: When you close the cover, set the gaskets to the grooves in the bottom chassis,
then tighten the bolts.
RTB Board
Clamp
Run cable along here.
Bottom
Chassis
Groove
Gasket
Antenna Bolt
Torque : 9.8 ±0.1 Nm
12
1. HOW TO INSTALL THE SYSTEM
J821 VH9P
J822 VH2P
J824 NH13P
J823 VH4P
