Summary of Contents for Furuno FR-8051

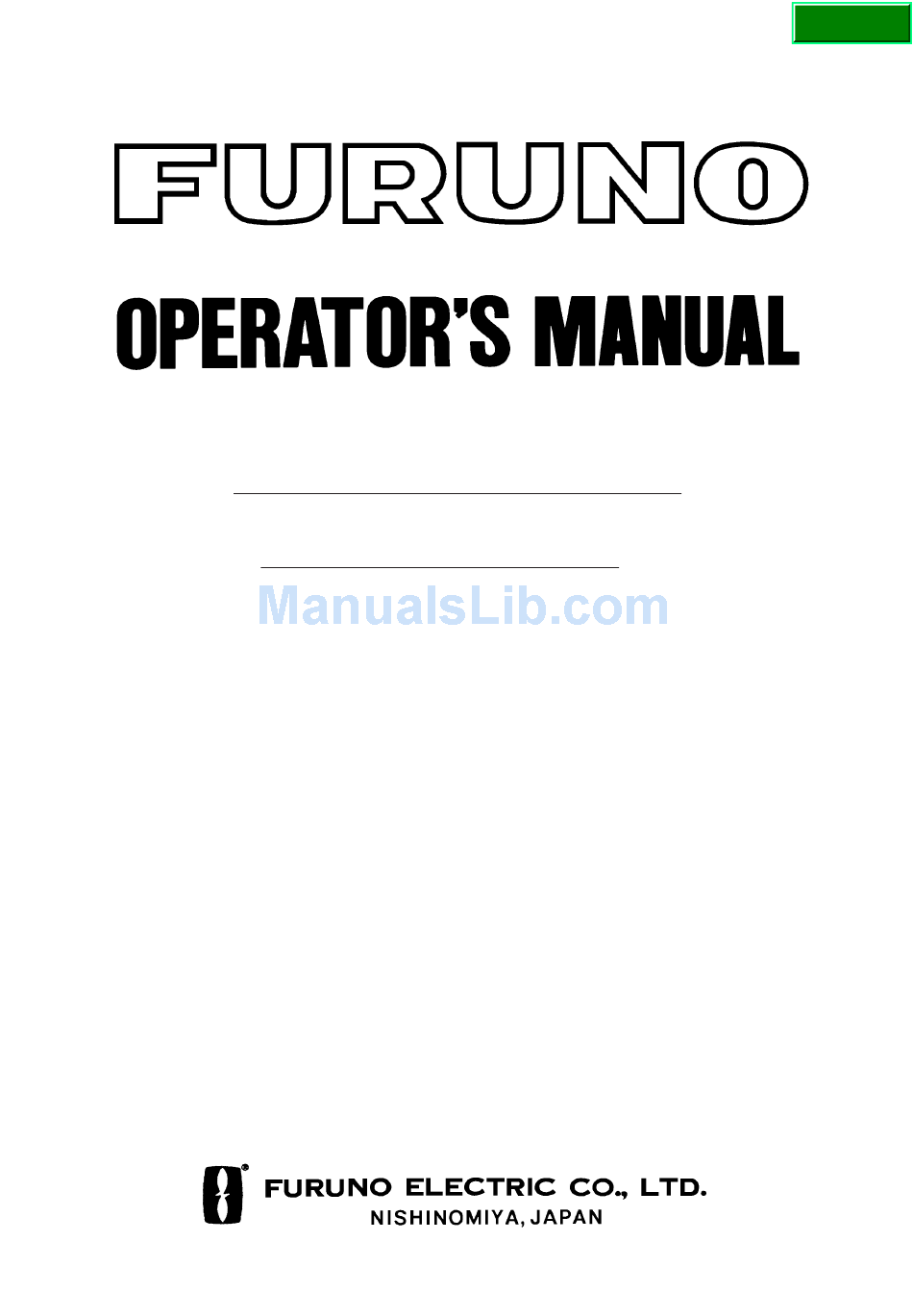

  • Page 1 Back MARINE RADAR FR-8051/8111/8251 MODEL...
  • Page 2 Printed in Japan All rights reserved. All rights reserved. Pub. No. OME-34240 Pub. No. OME-34240 ( ( AKMU AKMU ) ) FR-8051/8111/8251 FR-8051/8111/8251 The paper used in this manual is elemental chlorine free. FURUNO Authorized Distributor/Dealer FURUNO Authorized Distributor/Dealer FIRST EDITION : FIRST EDITION :NOV.
  • Page 3 "DANGER", "WARNING" and "CAUTION" notices appear throughout this manual. It is the responsibility of the operator of the equipment to read, understand and follow these notices. If you have any questions regarding these safety instructions, please contact a FURUNO agent or dealer.
  • Page 4 DANGER This equipment uses high voltage electricity which can shock, burn or cause death. Only qualified personnel should work inside the enclosures. Do not diassemble or modify the equipment. Fire, electrical shock or serious injury can result. DANGER Turn off the radar power switch before servicing the antenna unit.
  • Page 5 Note: If the antenna unit is installed at a close distance in front of the wheel house, your adminis- tration may require halt of transmission within a certain sector of antenna revolution. This is pos- sible—Ask your FURUNO representative or dealer to provide this feature. * UK DRA measured on FR-2810/2820. Other values by FURUNO.
  • Page 6 WARNING Turn off the power at the mains switchboard if metallic object or liquid falls into the equipment. Continued use can result in electrical shock or fire. Use the correct fuse. Use of the wrong fuse can cause fire or electrical shock. Ensure no water splash or rain leaks into the equipment.
  • Page 7 COMPLIANCE WITH R&TTE DIRECTIVE 1999/5/EC This radar complies with the R&TTE Directive 1999/5/EC. In accordance with Article 6-3 of this directive, FURUNO intends to put this radar on the market of the following countries in EU as well other markets.

  • Page 8: Table Of Contents

    TABLE OF CONTENTS SAFETY INFORMATION... i FOREWORD ...vii viii CONFIGURATION OF FR-8051/8111/8251 ... ix SPECIFICATIONS ... x EQUIPMENT LISTS ...xii CATEGORIZATION BY SPECIFICATION ... xiv Chapter 1 OPERATION Control Description ... 1-1 Display Indications ... 1-2 1.1 Turning the Radar On/Off ... 1-4 1.2 Transmitting, Stand-by ...
  • Page 9 1.36 Outputting Cursor Position (TLL data) ... 1-26 1.37 Selecting Unit of Range Measurement, Bearing Reference ... 1-27 1.38 Sector Blanking ... 1-27 1.39 Alarm Output Signal On/Off ... 1-27 Chapter 2 RADAR OBSERVATION 2.1 Radar Picture, Target Properties and Radar Pulse ... 2-1 2.2 Range Resolution ...

  • Page 10: Foreword

    Radar. We are confident you will discover why the FURUNO name has become synonymous with quality and reliability. For over 40 years FURUNO Electric Com- pany has enjoyed an enviable reputation for quality and reliability throughout the world. This dedication to excellence is furthered by our extensive global network of agents and dealers.

  • Page 11: Configuration Of Fr-8051/8111/8251

    115/230 VAC IEC 1162* IEC 1162* Video Sounder Fluxgate Heading Sensor C-2000 Gyro Converter Gyro AD-100 *Equivalent to NMEA0183 **12 V/24-32 VDC for FR-8051/8111 24-32 VDC for FR-8251 Option Antenna Unit 15 m standard Display Unit RDP-112 (In/Out) (In) Video Plotter...

  • Page 12: Specifications

    FR- 8111: MAF1425B FR- 8251: 9M752 or M5187F c i t i t c FR-8051/8111: FET switching method FR-8251: Line Pulse Logarithmic, IF 60 MHz Bandwidth: 25MHz (0.08 s), 2.5 MHz (0.3 s, 0.6 s, 1.2 s) Automatic or manual...
  • Page 13 12 V(FR-8051/8111), 24 V, 32 VDC, or 100 V, 110 V, 115 V, 220 V, 230 VAC, 50/60 Hz, 1ø (rectifier required) FR-8051, 75 W; FR-8111, 90 W; FR-8251, 130 W Input (IEC 1162*) - - GP, LC, or any talker...

  • Page 14: Equipment Lists

    EQUIPMENT LISTS Standard Set l l a i t a l l a i t a † - s t r s t r : t i : t i : t i t l i : † a t l...

  • Page 15: Optional Equipment

    Optional Equipment i f i t l i e l / Spare Parts xiii...

  • Page 16: Categorization By Specification

    CATEGORIZATION BY SPECIFICATION This series of marine radars are designed to comply with the standards of various national rules and regulations. Operational convenience is enhanced with the two categories as below although the basic design approach is the same. R-type: For fishing boats, pleasure boats, non-Convention cargo ships N-type: For non-Convention ships in the Netherlands and other countries where the radars must be approved based on IMO A.477(XII), although not wholly.

  • Page 17: Chapter 1 Operation

    Chapter 1 OPERATION Control Description Turns power on. Press together to turn Toggles between stand-by and transmit. Presentation mode Sets up radar for required objective. Silences aural alarms (except guard alarm). Short press: Offcenter Long press: Zoom-in Each press processes index lines; linked with EBL2/VRM2 / fixed / OFF.

  • Page 18: Display Indications

    Display Indications Range Range ring interval ZOOM (or SHIFT) ZOOM Pulselength Presentation mode Heading marker Guard zone area No.1 EBL No.1 VRM Auto clutter suppression Function in use (F3, Long range L-ES Echo Stretch) No.1 EBL bearing 345.6°R (readout of active EBL 23.0°R is circumscribed) 29:59...
  • Page 19 L-ES 18.0 T 290.0 R 99:99 93.7 R 13.82nm 332.7 T TRUE VECTOR 30MIN 12.5nm 01:28 8.89nm TIME L-ES 18.0 T 290.0 R 39.46N 93.7 R SHIP 23.08E 13.82nm 216.1 COURSE 39.46N DATE APR. 08 20:31 23.08E 99:99 (GPS) 12:35 L-ES 18.0 T 290.0 R...

  • Page 20: Turning The Radar On/Off

    1.1 Turning the Radar On/Off DANGER Before turning on the radar, make sure no one is near the antenna unit. Serious injury or death can result if a rotating antenna strikes someone standing nearby. Turning on the radar Press the POWER key. The control panel lights and a timer displays the time remaining for warm up of the magnetron, counting down from 3:00 to 0:00.

  • Page 21: Presentation Mode

    1.4 Presentation Mode This radar has the following presentation modes: Relative Motion (RM) Head-up: Unstabilized Course-up: Compass-stabilized relative to ship’s intended course North-up: Compass-stabilized with reference to north True Motion (TM) North-up: Ground or sea stabilized with compass and speed inputs Presentation mode, representative display 000 010...
  • Page 22 Presentation mode, representative display 000 010 340 350 000 010 340 350 North marker Heading 340 350 marker (a) True motion is selected Automatic resetting of sweep center in true motion mode 1 – 6 Description Target pips are painted at their measured distances and in their true (compass) directions with reference to own ship, north being maintained at the top of the screen.

  • Page 23: Menu Overview

    1.5 Menu Overview The MAIN menu, composed of nine menus, con- tains functions which normally do not require fre- quent adjustment in everyday operation. Basic menu operation 1) Press the MENU key to display the MAIN menu. MAIN Sel Item by VRM & hit ENT. TRAIL MARK&...

  • Page 24: Menu Tree

    Menu tree TIME (15S, 30S, 1M, 3M, 6M, 15M, 30M, CONT) TRAIL MODE (REL, TRUE) TONE (SGL, MULT) GUARD AREA NO. (GUARD1, GUARD2) MODE (IN, OUT) (IN mode only on N-type radar; no menu selection) SYMBOL PLOT ( erase all plotting symbols ) ERASE VEC REF (REL, TRUE) VEC TIME (30S, 1M, 3M, 6M,15M, 30M)
  • Page 25 TIME ALM TIME ALM (OFF, 3M, 6M, 12M, 15M, 20M) TIME ALM OUT (OFF, ON) GUARD OUT (OFF, ON) ARPA ALM OUT (OFF, ON) PLOT ALM OUT (OFF, ON) BRILL PANEL TRAIL CHAR HDG MARK VRM/ EBL CURSOR PLOT OS MARK INITIAL TUNE SET (AUTO, MANU) SPD MODE (MAN, LOG, NAV)

  • Page 26: Tuning The Receiver

    1.6 Tuning the Receiver The receiver can be tuned automatically or manu- ally. The default (factory setting) is automatic tun- ing. Selecting tuning mode 1) Press the MENU key. 2) Select the INITIAL menu. 3) Press the ENTER/SELECT key. Note: The above three steps can also be done by pressing and holding down the MENU key.

  • Page 27: Adjusting Brilliance Of Control Panel And Markers

    1.9 Adjusting Brilliance of Control Panel and Markers The brilliance of the control panel and markers can be adjusted on the BRILL menu. The head- ing marker is visible when set to zero. 1) Press the MENU key. 2) Select the BRILL menu. 3) Press the ENTER/SELECT key.

  • Page 28: Suppressing Rain Clutter

    A common mistake is too over-adjust the A/C SEA control so that the surface clutter is com- pletely removed. By rotating the control fully clockwise, you will see how dangerous this can be; a dark zone will be created near the center of the screen, causing a loss of close-in targets.

  • Page 29: Measuring Bearing

    Measuring range by VRM 1) Press the VRM ON key to enable a VRM. Each pressing of the key enables the No.1 VRM or No.2 VRM alternately. The active marker’s readout is circumscribed. Figure 1-11 Location of VRM readouts 2) Operate the VRM control to place the outside edge of the VRM on the inside edge of the target.

  • Page 30: Collision Assessment By The Offset Ebl

    1.16 Collision Assessment by the Offset EBL The origin of the No.1 EBL can be placed any- where with the trackball to assess the risk of col- lision, as well as to measure the range and bearing between two targets. 1) Press the EBL ON key to turn on (or activate) the No.1 EBL.

  • Page 31: Index Lines

    1.18 Index Lines The index lines are useful for maintaining a con- stant distance between own ship and a coastline or partner ship. They can be turned on/off by the INDEX LINE key. Each pressing of the key turns on the index lines (linked with No.2 EBL and No.2 VRM), anchors the index lines, or turns off the index lines.

  • Page 32: Zoom

    1.20 Zoom The zoom feature allows you to double the size of the area between your vessel and any location within the current range to take a closer look at an area of interest. (Your radar may not have this function.) 1) Select location with the cursor.

  • Page 33: Own Ship Speed

    Table 1-1 Eight available target objectives , . g & l a t e t t l l a ) . c Procedure 1) Press the FUNCTION key to display function number to program (F1, F2, or F3). 2) Press the MENU key and select the FUNC menu.

  • Page 34: Ship's Graphic

    Manual speed input 1) Press the MENU key. 2) Select the INITIAL menu and press the EN- TER/SELECT key. 3) Select SPD MODE and press the ENTER/ SELECT key. 4) Select MANU. 5) Press the ENTER/SELECT key. 6) Enter speed and press the ENTER/SELECT key.
  • Page 35 True trails Figure 1-21 True and relative echo trails. Note: If the true trail is selected on the stabilized RM (CU, NU), targets whose extensions hit own ship are not always on a collision course. Starting echo trail Press the ECHO TRAIL key to start the echo trail function.

  • Page 36: Electronic Plotting (E-Plot)

    Trail brilliance Trail brilliance may be adjusted on the BRILL menu. 1) Press the MENU key. 2) Select the BRILL menu. 3) Press the ENTER/SELECT key. 4) Select TRAIL and press the ENTER/SELECT key. 5) Operate the VRM or EBL control to adjust trail brilliance.
  • Page 37 Target data Place the cursor on the plotted target and press the ENTER/SELECT key. Vector reference, vec- tor time, vector time elapsed, and selected target’s bearing, course, speed, CPA and TCPA appear at bottom of the display. In the head-up mode target bearing course and speed become true or relative depending on vec- tor reference setting.

  • Page 38: Setting A Guard Alarm Zone

    1.28 Setting a Guard Alarm Zone The guard allows the operator to set the desired range and bearing for a guard zone. When ships, islands, landmasses, etc. violate the guard zone an aural alarm sounds and the offending target blinks to call the operator’s attention. Two areas can be set, zone 1 (short dashed line) and zone 2 (long dashed line), and one may be active.

  • Page 39: Watch Alarm

    Guard zone to set Set cursor on point A (or B) and press GUARD ALARM. (or GUARD2) GUARD1 (or OUT) Press GUARD ALARM. Guard zone Figure 1-25 How to set the guard alarm Note: When the radar range is less than one half of the guard zone range, the guard zone disap- pears and the indication of active guard zone (GUARD1 or GUARD2) appears in highlighted...

  • Page 40: Suppressing Second-Trace Echoes

    The echo average feature is inoperable when a heading signal is not available. If you wish to use this feature without a heading signal, system ini- tialization is required. (Consult a FURUNO rep- resentative or dealer.) Note: Echo averaging also requires ship’s speed information from a log or manual entry.

  • Page 41: Echo Stretch

    1.32 Echo Stretch On long ranges target echoes tend to shrink in the bearing direction, making them difficult to see. On short and medium ranges such as 1.5, 3 and 6 nm range scales, the same sized targets get smaller on screen as they approach own ship. These are due to the inherent property of the ra- diation pattern produced by the antenna.

  • Page 42: Waypoint Display

    7) Select pulselength and press the ENTER/SE- LECT key. 8) Press the ENTER/SELECT key. 9) Press the MENU key. Table 1-2 Default pulselength settings Selecting pulselength set to use Select pulselength set on P/L SEL of the ECHO SIG menu. 1) Press the MENU key.

  • Page 43: Selecting Unit Of Range Measurement, Bearing Reference

    1.37 Selecting Unit of Range Measurement, Bearing Reference You can select the unit of range measurement for the VRMs and cursor and bearing reference for the EBLs. 1) Press the MENU key. 2) Select the INITIAL menu. 3) Press the ENTER/SELECT key. 4) Select appropriate menu and press the ENTER/ SELECT key.
  • Page 44 This page is intentionally left blank.

  • Page 45: Chapter 2 Radar Observation

    Chapter 2 RADAR OBSERVATION 2.1 Radar Picture, Target Properties and Radar Pulse Strength of reflection The strength of the reflected echo depends not only on the height and size of the target but also its shape, material and the angle at which the radio pulse strikes it.

  • Page 46: Bearing Resolution

    2.3 Bearing Resolution Bearing resolution is a measure of the capability of a radar to display as separate targets the echoes re- ceived from two targets which are at the same range and are close together. The principal factor which affects bearing reso- lution is horizontal beamwidth.

  • Page 47: Minimum And Maximum Ranges

    The IMO Resolution A. 477 (XII) and IEC 936 require the minimum range to be less than 50 m. All FURUNO radars satisfy this requirement. Maximum range The maximum detecting range of the radar, Rmax,...

  • Page 48: Locating A Ship Or Survival Craft In Distress By Sart

    2.6 Locating a Ship or Survival Craft in Distress by SART SART background The SART is required on vessels of 300 GT and above by the 1974 SOLAS Convention as amended in 1988 (GMDSS). Performance stan- dard is specified in IMO Resolution A.697 (17). SART activating conditions The SART should operate correctly when inter- rogated at a distance of up to at least five miles...
  • Page 49 As the SART is approached the radar will nor- mally detect the initial fast sweep of the SART so that the double dots will appear. The range delay of the first dot should be no more than 150 meters beyond the SART position. 3 3 3 3 3 Radar bandwidth This is normally matched to the radar pulselength and is usually switched with the range scale and...
  • Page 50 This page is intentionally left blank.

  • Page 51: Chapter 3 Maintenance

    Chapter 3 MAINTENANCE This equipment contains high voltages which can endanger human life at several internal circuits including a cathode ray tube (CRT) which uses several thousands volts. Any internal adjustment, servicing and repair shall only be performed by qualified service personnel totally familiar with electrical circuits and servicing of the equipment.

  • Page 52: Periodic Maintenance Schedule

    Ask your nearest FURUNO representative or dealer to clean internal high-voltage components. Terminal strips, Check for loose connections. Check sockets, earth contacts and plugs for proper seating, terminal etc.

  • Page 53: Chapter 4 Troubleshooting

    Chapter 4 TROUBLESHOOTING This equipment contains high voltages which can endanger human life at several internal circuits including a cathode ray tube (CRT) which uses several thousands volts. Any internal adjustment, servicing and repair shall only be performed by qualified service personnel totally familiar with electrical circuits and servicing of the equipment.

  • Page 54: Advanced-Level Troubleshooting

    4.2 Advanced-level Troubleshooting This paragraph describes how to cure hardware and software troubles which should be carried out by qualified service personnel. Note: This radar equipment contains complex modules in which fault diagnosis and repair down to component level are not practicable by users. .
  • Page 55 t i s ) . t i t a i t i t r i i f i i f i t a l t a l ) t i t a i i t c i t c i f i .
  • Page 56 i t c i t c E " " 1 E " " 2 e l l i t a i t a 4 – 4 i t t . y l i t c . t c i t i t a i .

  • Page 57: Diagnostic Test

    4.3 Diagnostic Test A diagnostic test is provided to enable testing of major circuit boards in the radar display unit. Proceed as follows to execute the diagnostic test: 1) Press the MENU key. 2) Select the INITIAL menu and press the EN- TER/SELECT key.
  • Page 58 This page is intentionally left blank.

  • Page 59: Antenna Unit

    Chapter 5 LOCATION OF PARTS 5.1 Antenna Unit N photo No. 639 Figure 5-1 Antenna unit (all models), cover opened DANGER This equipment uses high voltage electricity which can shock, burn or cause death. Only qualified personnel should work inside the enclosures.

  • Page 60: Rf Transceiver Unit

    5.2 RF Transceiver Unit RU-5072 or RU-9253 N photo No. 3190 Pulse Transformer N photo No. 3191 Figure 5-3 RF transceiver unit (FR-8251), bottom view, cover removed 5 – 2 IF Amplifier Figure 5-2 RF transceiver unit (FR-8251) RT-4037 MODULATOR Board MD-5145 Limiter S-LX5B or RU-9099 Circulator...
  • Page 61 Circulator RU-3686 N photo No. 3194 Figure 5-4 RF transceiver unit (FR-8051/8111) N photo No. 3195 Pulse Transformer RT-4427-1 Figure 5-5 RF transceiver unit (FR-8051/8111), bottom view, cover removed IF Amplifier Limiter S-LX20 RU-8014S or RU-9254 MODULATOR Board MD-9162 Magnetron...

  • Page 62: Display Unit (Common To All Models)

    5.3 Display Unit (common to all models) N photo No. 3224 N photo No. 3225 5 – 4 Figure 5-6 Display unit, top view Power section CRT Assy. (1/2) (PTU-9149) JM-12FU CRT Assy. (2/2) JM-12FU Figure 5-7 Display unit, top view SPU Board (03P9159)
  • Page 63 TX-HV Board (HV-9017) N photo No. 3227 Figure 5-8 Display unit, right side view Power section (PTU-9149) N photo No. 3226 From left; H.HOLD (VR202), H.POSITION (VR201), V.SIZE (VR402), V.LINEARITY (VR403), V.HOLD (VR401) H.SIZE (L204) Figure 5-9 Display unit, left side view From top;...
  • Page 64 This page is intentionally left blank.

  • Page 65: Appendix A Description Of Optional Equipment

    OPTIONAL EQUIPMENT This appendix provides a brief description of op- tional equipment which can be connected to the FR-8051/8111/8251. For more detailed informa- tion, see the respective operator’s manual. A.1 Performance Monitor A performance monitor is required for a radar in- stalled on vessels of 300 GT and upward engaged in international voyages.

  • Page 66: Auto Plotter Arp-15

    A.2 Auto Plotter ARP-15 The Auto Plotter ARP-15 is an optional circuit board which is accommodated in the display unit of the radar. The Auto Plotter can acquire radar targets manu- ally and tracks them. An internal microprocessor calculates target data such as speeds and courses, and this information is displayed in alphanumer- ics and by vectors.

This manual is also suitable for:
