1. HOW TO INSTALL THE SYSTEM

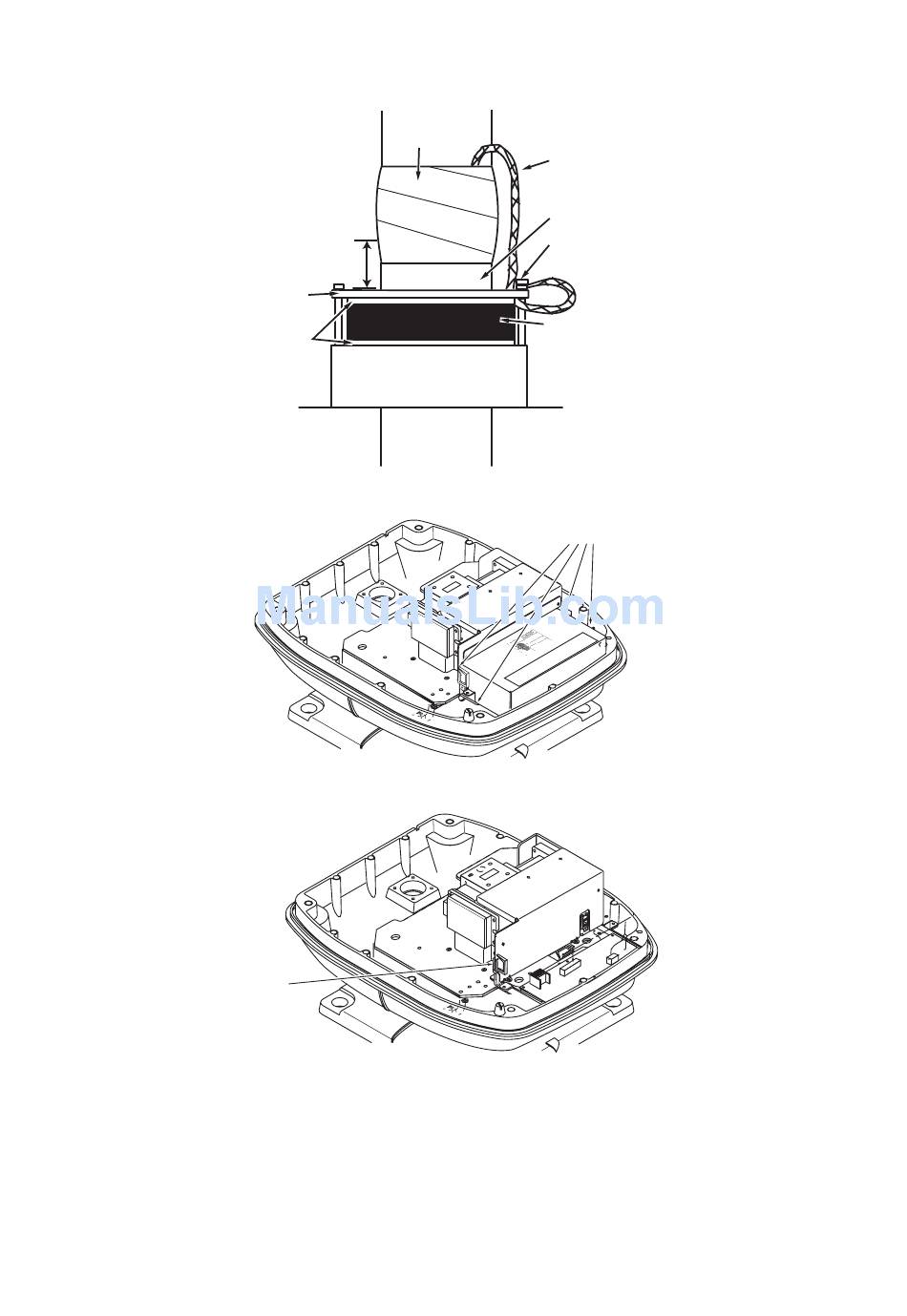

5. Put the signal cable so that no more than 4 cm of the sheath is visible, as shown
in the figure below. Tighten the fixing bolts.
6. Loosen four screws in the figure shown below and open the cover.
7. Put the signal cable through the cable protector.
8. Connect the signal cable to the RTB Board (03P9249). See the interconnection
diagram and the figure shown on page 12.
Within 4 cm
Plate
Flat
washer
CABLE GLAND
Cable
protector
Taping
Shield wire
Sheath
Bolt
Gasket
Four screws
11
