5. Fasten the shielded part of the signal cable with shield clamp (installation materi-
al) as shown below.

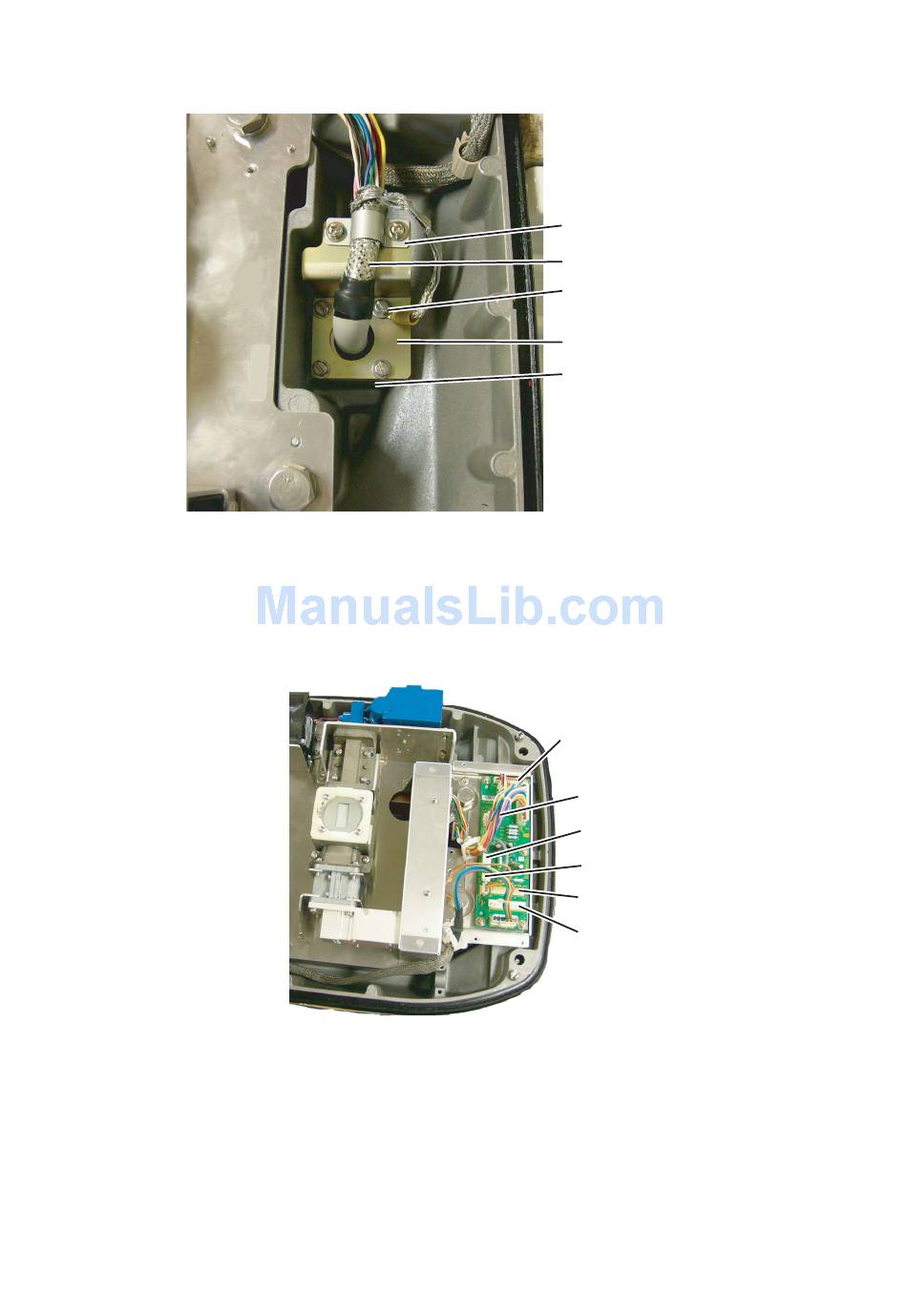

How to fix signal cable in cable gland
6. Unfasten four screws to remove the RTB board cover.
7. Connect the plugs of the signal cable to the RTB board.
FR-8065, FR8125
FR-8255
8. Reattach the RTB board cover.
: J821, J823, J824, J822
: J821, J823, J824, J820
Connecting to the RTB board
16
1. HOW TO INSTALL THE SYSTEM
Shield clamp
Signal cable
Fix shield wire with bolt.
Gasket support
Cable Entry
RTB board
J820
J823
J822
J824
J821
