Furuno FR-8045 Installation Manual page 12

1. HOW TO INSTALL THE SYSTEM
1.2.2 How to install the antenna unit
You can install the antenna unit by one of the two methods shown below.
• Use the outside holes
• Use the inside holes

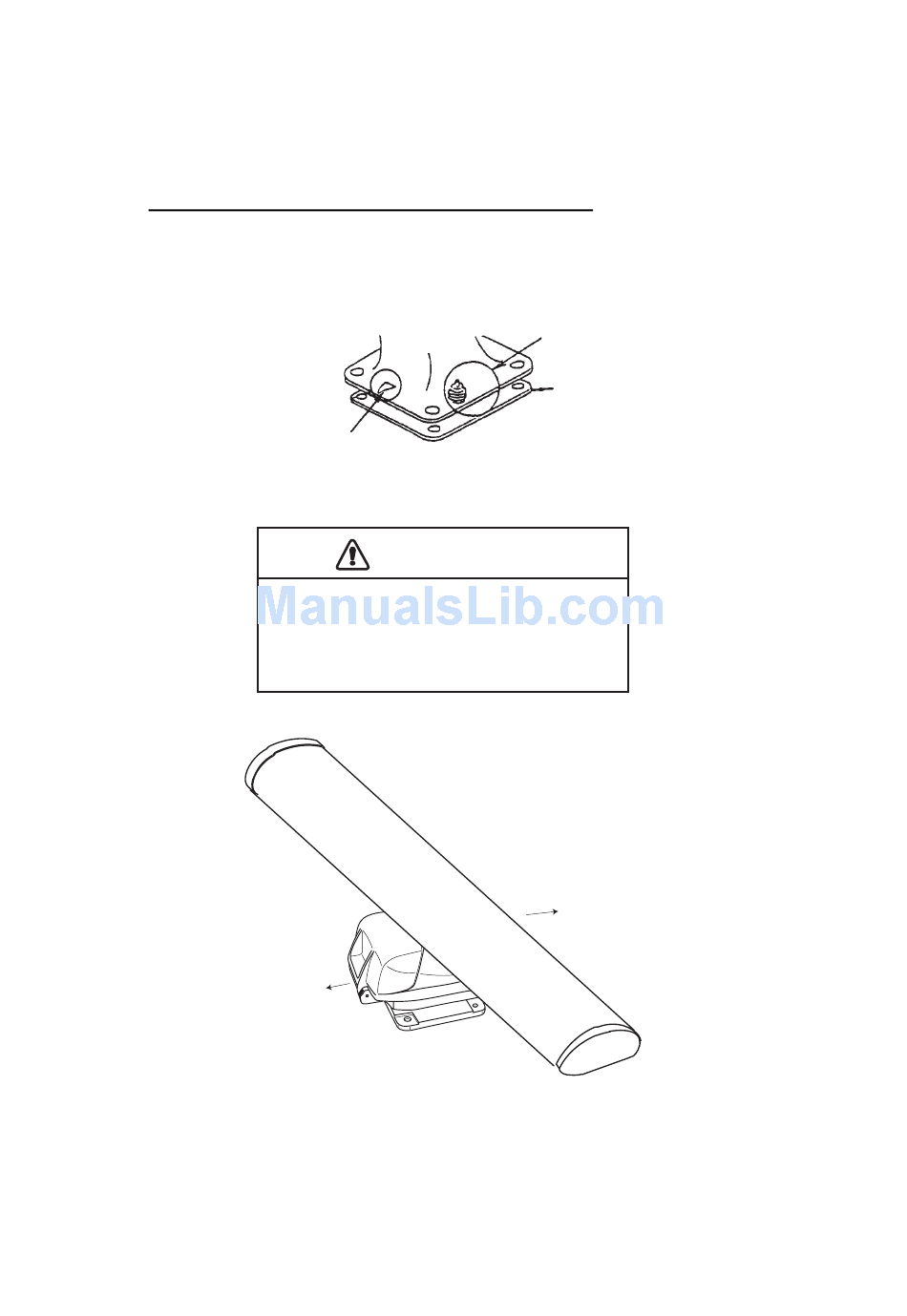

How to use outside holes of the antenna housing
Use the hex head bolts (supplied) to install the antenna unit as shown in the illustration
below.
1. Put the rubber mat (supplied) on the platform.
2. Put the antenna unit on the rubber mat. Align the position of the antenna unit as
shown in the illustration below.
Bow mark
CAUTION CAUTION
Do not lift the antenna by the radiator,
the radiator may be damaged.
Always lift the antenna by the housing.
Stern
7
Ground
terminal
Rubber
mat
Bow
