Polycom realpresence group series Setup Sheet page 6

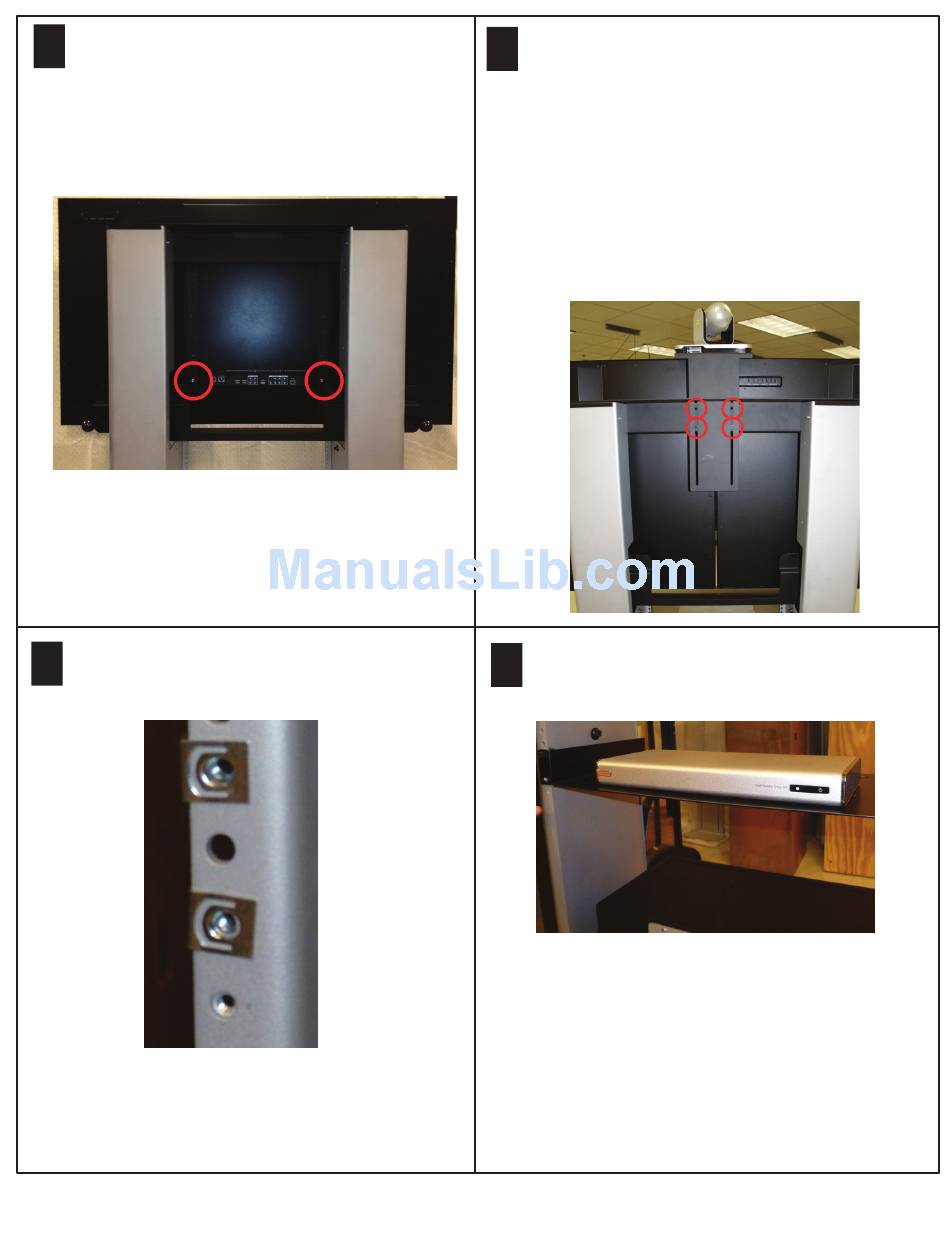

Center the display on the Media Center. Insert one
17
M6 x 16 flanged button head screw into each display
bracket to lock the display.
If you have a dual display configuration, center the two
displays on the Media Center. Insert one M6 x 16
flanged button head screw into each display bracket to
lock the displays.
Install two clip-on rack nut fasteners in the seventh
19
and ninth holes from the top, on the left vertical support.
Repeat with the right vertical support. Adjust the height
as needed.
If installing the Lower Camera Mount kit, refer to the
Polycom RealPresence Group Series Media Center
Lower Camera Mount Kit Setup Sheet for instructions
and correct location.
Polycom® RealPresence® Group Series Media Center Setup Sheet
Note: For the wall mount option, refer to step 7 in the
18
Polycom RealPresence Group Series Wall-Secured
Supplement. For the camera mount instructions in all 84"
configurations, refer to step 2 in the Polycom
RealPresence Group Series with 84" Display Setup Sheet
Supplement.
If installing the Lower Camera Mount door, skip this step.
Attach the EagleEye IV camera to the camera mount
bracket using four M3 x 6 Phillips flat head screws.
Attach the camera assembly to the display using four
1/4-20 x 5/8" socket head cap screws, four flat washers,
and four lock washers.
Install the codec to the 1U shelf using two M3 x 10
20
screws. Install the 1U shelf using four 10-32 x 1/2"
pan head screws.
6
