Polycom realpresence group series Setup Sheet page 3

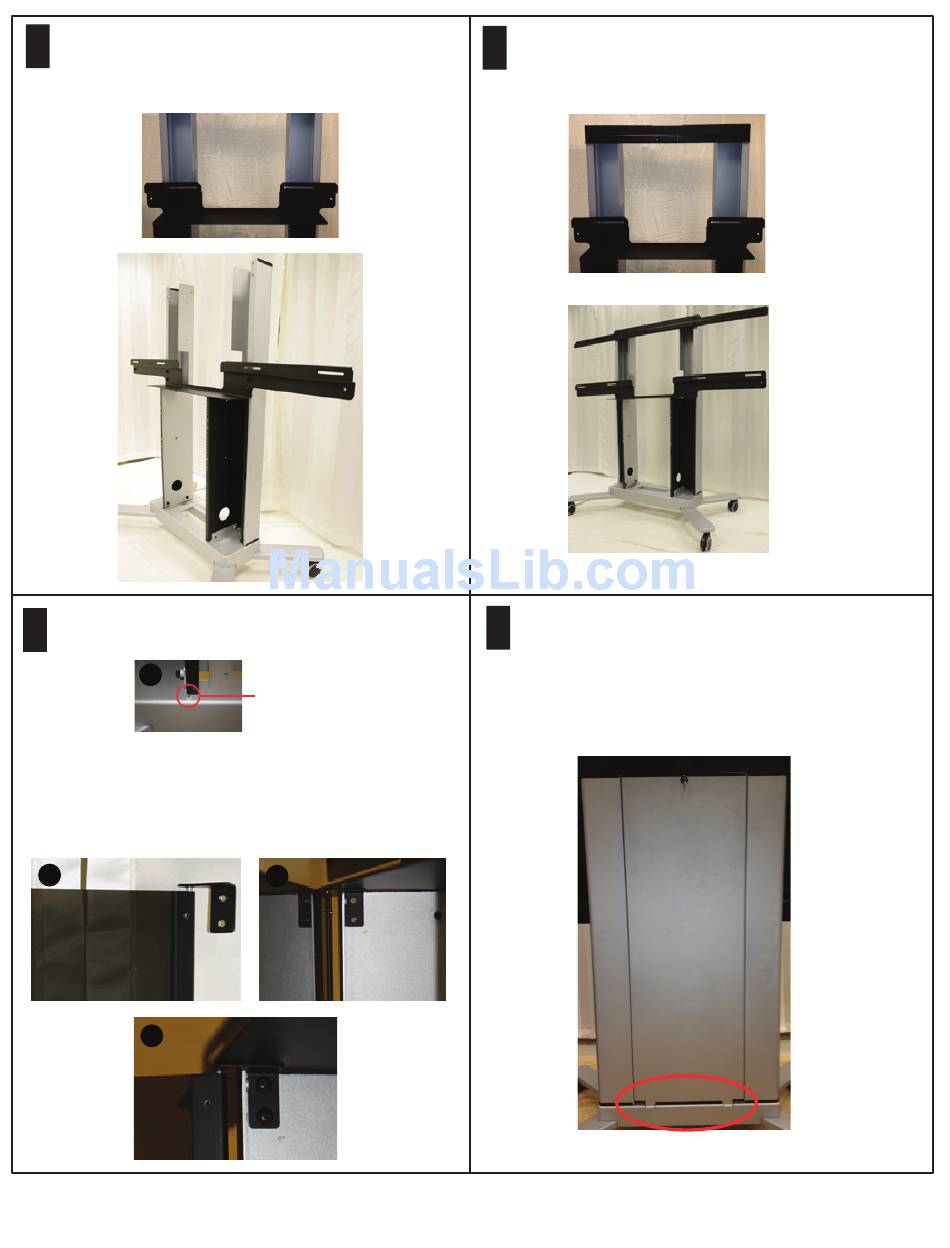

Install the lower display rail (single or dual) by aligning the
5
holes in the display rail with the holes in the vertical
supports. Attach with four M10 x 25 flanged socket head
cap screws. Do not fully tighten.
Single
Dual
Install the standard door or the Lower Camera Mount door:
7
(a) Install the nylon spacer over the front door hinge pin at
the base.
a
(b) Insert the hinge pin/bracket into the top of the front door.
(c) Slide the bottom of the front door onto the door
hinge pin. Position the top hinge bracket underneath the
bottom display rail by sliding it in between. Align the
holes in the bracket with the holes in the vertical supports.
(d) Attach the door using two 10-32 x 7/16 pan head screws.
b
d
Polycom® RealPresence® Group Series Media Center Setup Sheet
nylon spacer
c
Install the upper display rail (single or dual) by aligning the
6
holes in the display rail with the holes in the vertical
supports. Attach with four M10 x 25 flanged socket head
cap screws. Do not fully tighten.
Single
Dual
Attach the rear panel by inserting the two tabs at the
8
bottom of the door into the slots in the base. This serves
as an alignment tool to ensure the frame is properly
aligned before tightening all bolts. Using the L-key,
tighten the socket head cap screws at the bottom of the
base, the lower display rail, and the upper display rail.
Remove the rear door.
3
