Polycom realpresence group series Setup Sheet page 11

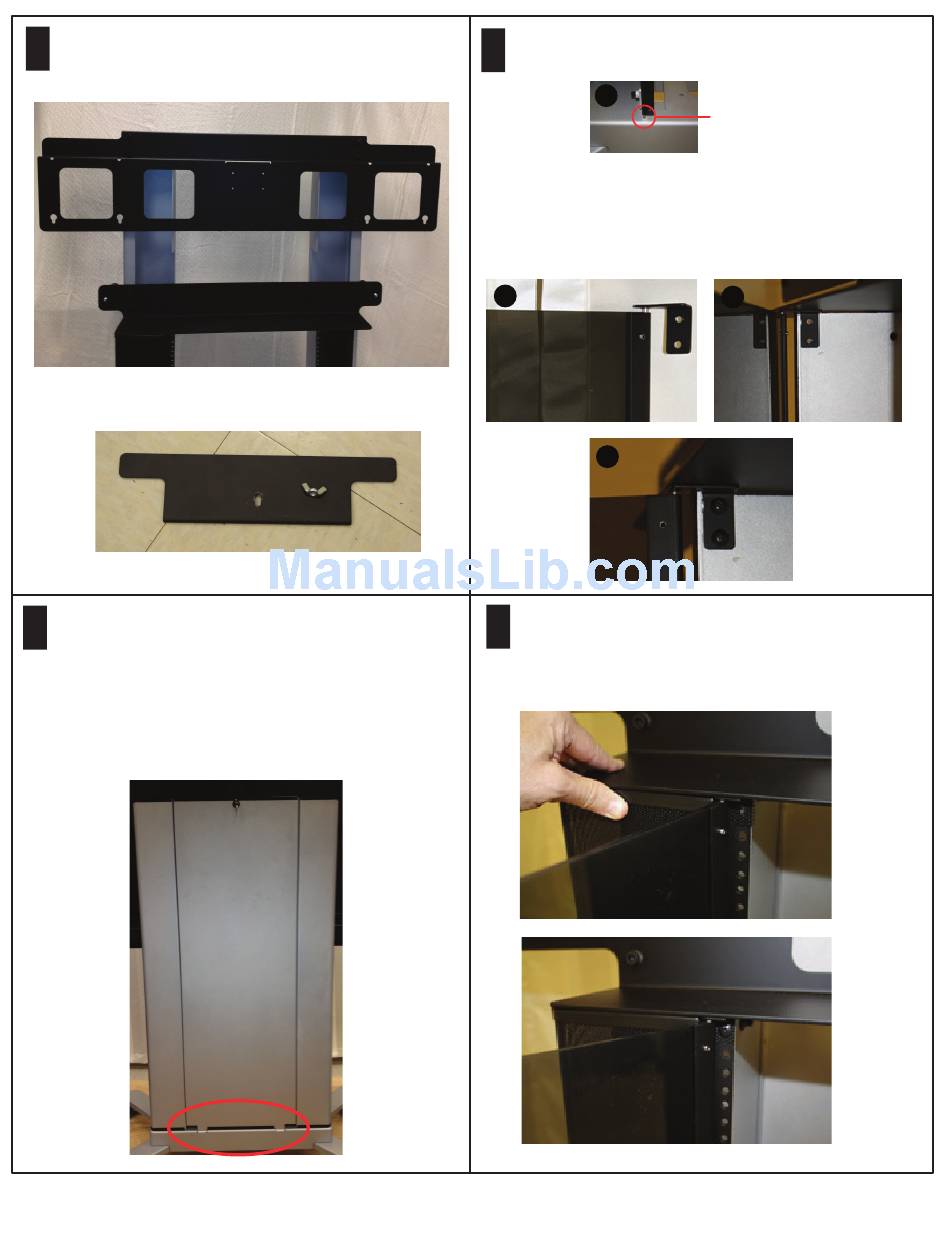

Install the upper display rail by aligning the holes in the
5
display rail with the holes in the vertical supports. Attach
with eight M10 x 25 flanged socket head cap screws.
Remove the retainer bracket from the back of the upper
display rail and set aside.
Attach the rear door by inserting the two tabs at the
7
bottom of the door into the slots in the base. This serves
as an alignment tool to ensure the frame is properly
aligned before tightening all bolts. Tighten the bolts at
the bottom of the base, the lower display rail, and the
upper display rail. Remove the rear door.
Note that the rear door has ventilation holes at the
top and bottom that are not displayed.
Polycom® RealPresence® Group Series Media Center Setup Sheet
Install the standard door or the Lower Camera Mount door:
6
(a) Install the nylon spacer over the front door hinge pin at
the base.
a
(b) Insert the hinge pin/bracket into the top of the front door.
(c) Slide the bottom of the front door onto the door
hinge pin. Position the top hinge bracket underneath the
bottom display rail by sliding it in between. Align the
holes in the bracket with the holes in the vertical supports.
(d) Attach the door using two 10-32 x 7/16 pan head screws.
b
d
Attach the mesh grill on the left side by inserting the
8
three tabs behind the front door, flexing the mesh grill
as needed to fit. Open the front door and install three
10-32 x 1/2" pan head screws. Repeat with the mesh
grill on the right side.
nylon spacer
c
11
