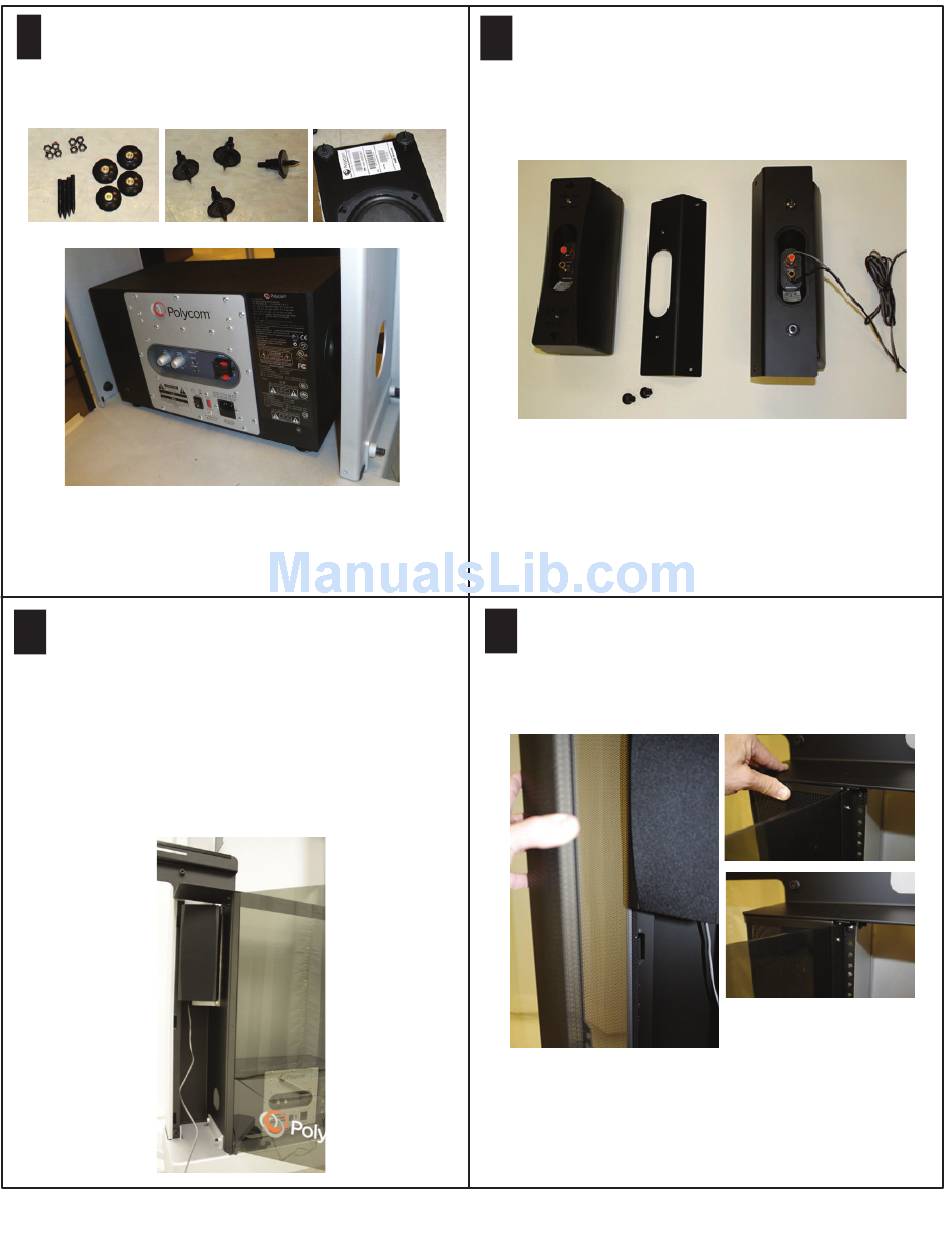

Assemble and install the subwoofer feet approximately
9
3/8" onto the screws on the bottom of the subwoofer.
Place the subwoofer onto the bottom of the Media Center
by inserting the screws into the holes at the bottom of the
Media Center.
Install the left speaker assembly on the vertical support
11
by aligning the holes in the speaker bracket with the
holes in the vertical support. Ensure that the speaker
is oriented so the label is at the bottom. Attach with the
two previously uninstalled 1/4-20 x 5/8" socket head cap
screws, flat washers, and lock washers. Feed the speaker
wire through the hole at the bottom of the vertical support.
Leaving enough slack to reach the subwoofer, trim or
dress the speaker cable as needed. Repeat with the
right speaker assembly. Attach the speaker wires to the
subwoofer. For cabling details, refer to the
documentation that came with the subwoofer.
Polycom® RealPresence® Group Series Media Center Setup Sheet
Attach the speaker wires to the left speaker. Fasten the
10
speaker bracket to the speaker using two 1/4-20 x 5/8"
socket head cap screws, flat washers, and lock washers.
Repeat with the right speaker. Align the bracket on the
right speaker so that the speakers will be oriented the
same on both sides, with the label on the bottom.
Attach the mesh grill on the left side by inserting the
12
three tabs behind the front door and flexing the mesh grill
as needed to fit. Open the front door and install three
10-32 x 1/2" pan head screws. Repeat with the mesh
grill on the right side.
