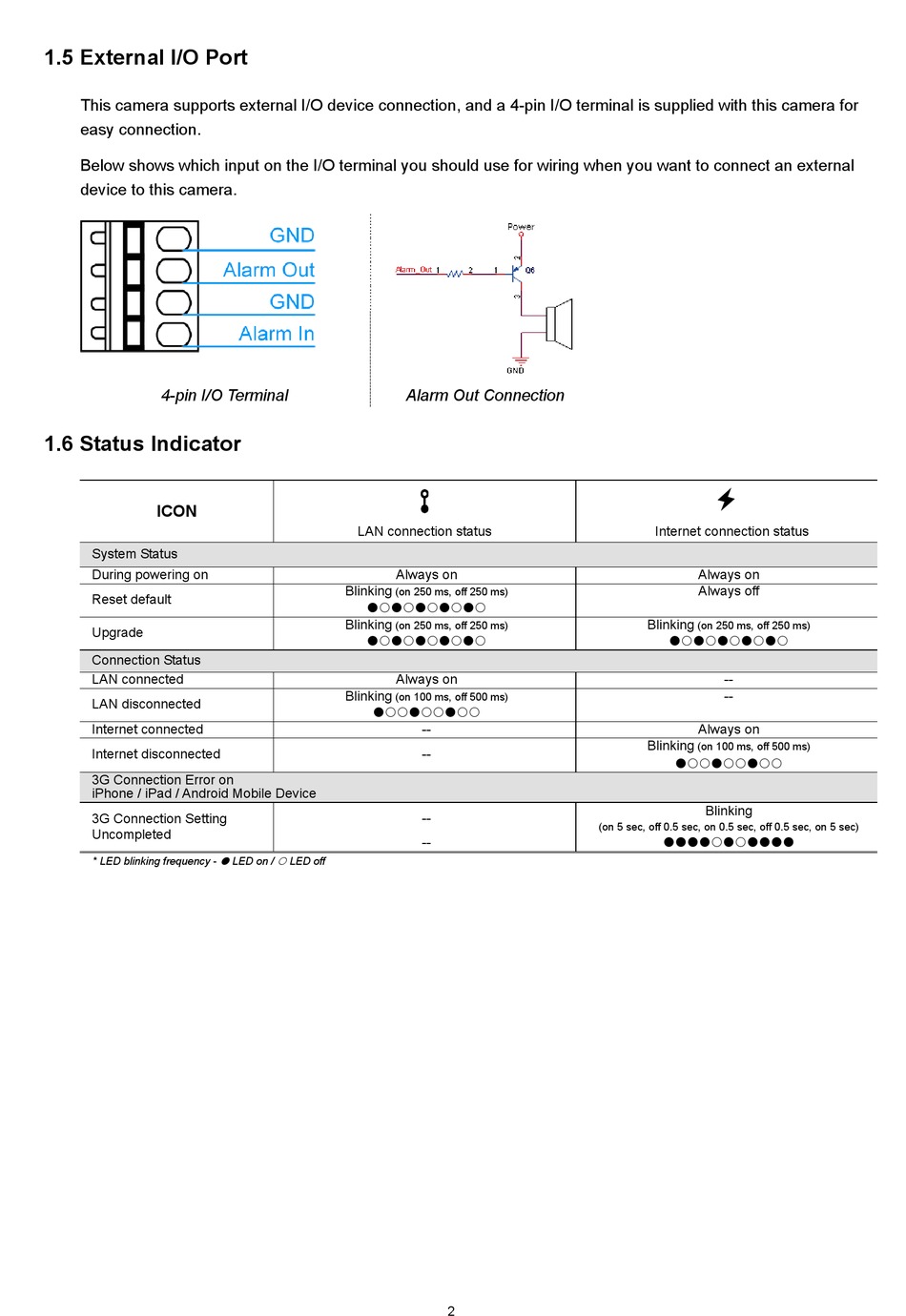

1.5 External I/O Port

This camera supports external I/O device connection, and a 4-pin I/O terminal is supplied with this camera for
easy connection.
Below shows which input on the I/O terminal you should use for wiring when you want to connect an external
device to this camera.
4-pin I/O Terminal

1.6 Status Indicator

ICON
System Status
During powering on
Reset default
Upgrade
Connection Status
LAN connected
LAN disconnected
Internet connected
Internet disconnected
3G Connection Error on
iPhone / iPad / Android Mobile Device
3G Connection Setting
Uncompleted
* LED blinking frequency -
LAN connection status
Blinking

Blinking

Blinking

 LED on /  LED off
Alarm Out Connection
Always on
(on 250 ms, off 250 ms)
(on 250 ms, off 250 ms)
Always on
(on 100 ms, off 500 ms)
--
--
--
--
2
Internet connection status
Always on
Always off
Blinking
(on 250 ms, off 250 ms)

--
--
Always on
Blinking
(on 100 ms, off 500 ms)

Blinking
(on 5 sec, off 0.5 sec, on 0.5 sec, off 0.5 sec, on 5 sec)

