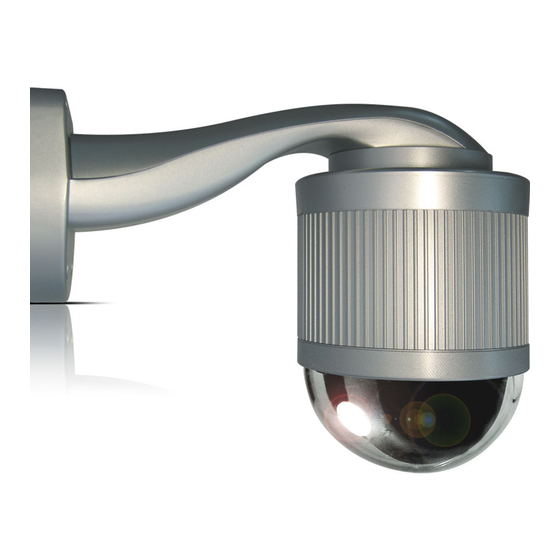

Avtech Outdoor 22X Zoom Speed Dome Camera User Manual

Outdoor 22x zoom auto tracking speed dome camera
Hide thumbs Also See for Outdoor 22X Zoom Speed Dome Camera:
Table of Contents

Advertisement

Quick Links

Download this manual

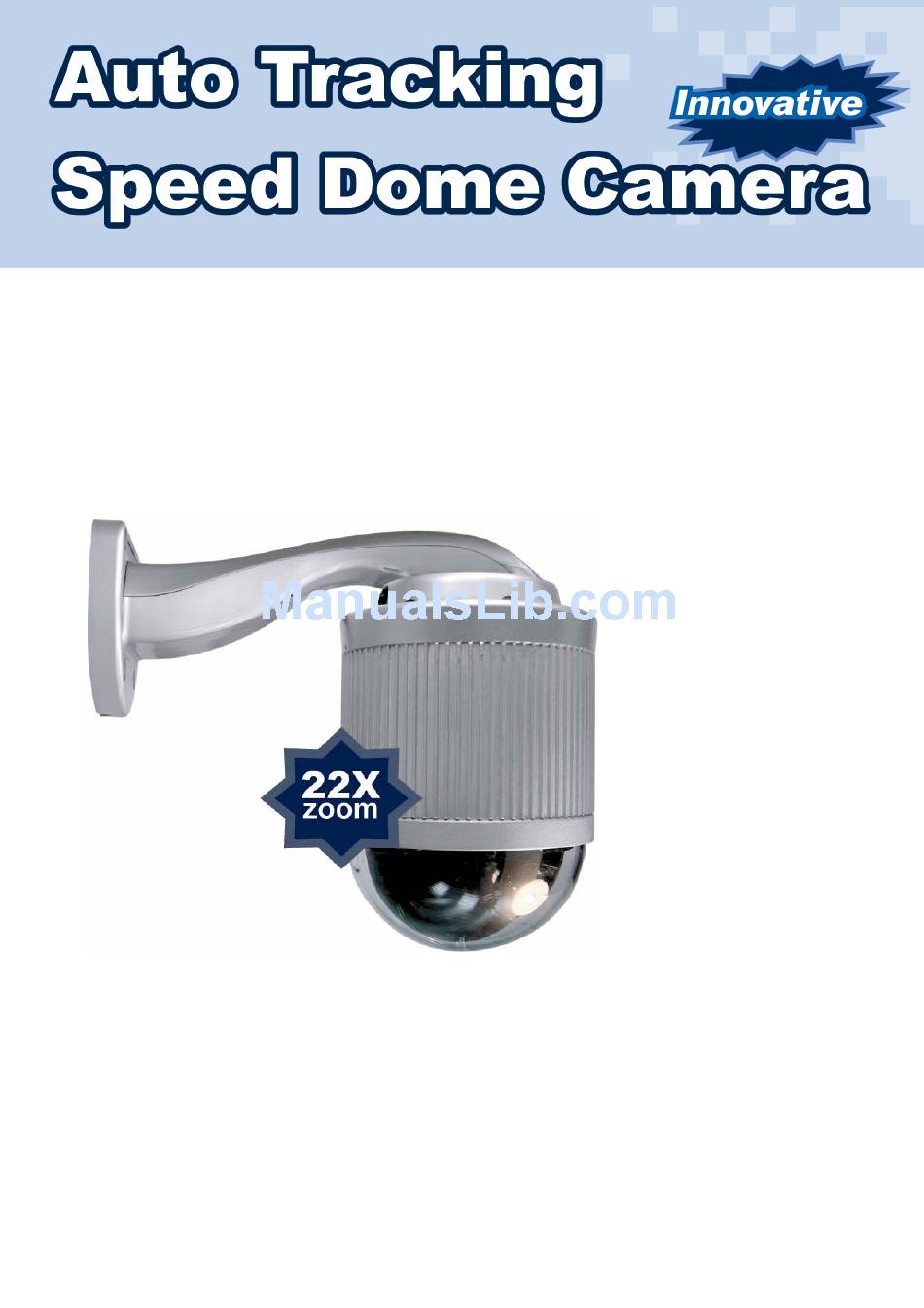

195Z
U
s
e
r
M
a
n
u
a
l
U
s
e
r
M
a
n
u
a
l
Please read instructions thoroughly before operation and retain it for future reference.
The image shown above may differ from the actual product appearance.
321Z_Manual_V0.82

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Outdoor 22X Zoom Speed Dome Camera and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avtech Outdoor 22X Zoom Speed Dome Camera

Summary of Contents for Avtech Outdoor 22X Zoom Speed Dome Camera

  • Page 1 195Z Please read instructions thoroughly before operation and retain it for future reference. The image shown above may differ from the actual product appearance. 321Z_Manual_V0.82...
  • Page 2 IMPORTANT SAFEGUARD CAUTION RISK OF ELECTRIC SHOCK CAUTION: To reduce the risk of electric shock, do not expose this apparatus to rain or moisture. Only operate this apparatus from the type of power source indicated on the label. The company shall not be liable for any damages arising out of any improper use, even if we have been advised of the possibility of such damages.
  • Page 3 ‧ Installation should be made by qualified service personnel. The content in this manual is subject to change without notice.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFEGUARD ......................2 TABLE OF CONTENTS ....................... 4 1. INTRODUCTION ........................1 1.1 Overview................................1 1.2 Features................................1 1.3 Package Contents ............................1 1.4 Specification..............................2 2. INSTALLATION AND SETUP ....................3 2.1 Construction..............................3 2.2 Installation................................3 2.3 Connection (PTZ Camera / Keyboard Controller / DVR)..................5 3.
  • Page 5 On / Off:............................15 5.4 Pan / Tilt Graph..............................15 On / Off:............................15 5.5 Zoom Bar ...............................16 On / Off:............................16 5.6 Focus Window ...............................16 On / Off:............................16 5.7 ID Code No..............................16 Camera ID Code Number Setup: ....................16 5.8 ID Code Display.............................16 On / Off:............................16 5.9 Baud Rate..............................17 2400 / 4800 / 9600 / 19200 (unit: bits/s) ..................17...
  • Page 6 Select the Auto Focus Mode: ......................23 8. MAIN MENU – EXIT ....................... 24 Exit And Save the Settings: ......................24 Exit Without Saving the Settings: ....................24 APPENDIX 1 DEFAULT VALUE ....................25...

  • Page 7: Introduction

    INTRODUCTION 1. INTRODUCTION 1.1 Overview This outdoor type speed dome camera equipped with a 360° pan and 90° tilt base, and 22X optical zoom lens and has the auto focus function. Moreover, it has many advanced functions, including Intelligent Auto Tracking, High Spindle Reliability, Friendly Graphical OSD Interface and Convenient Keyboard Controller Control.

  • Page 8: Important Safeguard

    INTRODUCTION 1.4 Specification Outdoor 22X Zoom Speed Dome Camera Specification* ▓ GENERAL Signal System NTSC or PAL Pick-up Element 1/4" Sony Color Super HAD CCD image sensor Number of Pixels 768(H)*494(V)<NTSC> / 752(H)*582(V)<PAL> Resolution 480TV lines Min. Illumination 0.3 Lux / F1.6...

  • Page 9: Installation And Setup

    INSTALLATION AND SETUP 2. INSTALLATION AND SETUP For the installation and connection of this PTZ camera, please refer to qualified service personnel or installer. 2.1 Construction 2.2 Installation Before installation, you need the following items before installation: ‧ Bracket (supplied with the bracket sales package) ‧...

  • Page 10: Table Of Contents

    INSTALLATION AND SETUP STEP 1: Attach the camera-mounting base to the PTZ camera. Put the power, video and RS485 data connectors through the hole of the camera-mounting base. Align the breach of the camera-mounting base to the sticker label on the PTZ camera, and use two M6 Nylok screws to attach the camera-mounting base to the PTZ camera, as shown in the picture below.

  • Page 11: Connection (Ptz Camera / Keyboard Controller / Dvr)

    INSTALLATION AND SETUP 2.3 Connection (PTZ Camera / Keyboard Controller / DVR) The optional peripheral (keyboard controller) allows you to accurately control of the pan / tilt / zoom movement for a PTZ camera with the convenient 3D joystick and functional keypad design. The following connection illustration is an example.
  • Page 12 INSTALLATION AND SETUP STEP 5: Press “F1” key on the keyboard controller, and go to “System” and “CAM” menu to make related settings. ‧ System : To select the mode, press “FUN1” key on the keyboard controller. Go to “System” → Mode “Mode”...
  • Page 13 INSTALLATION AND SETUP STEP 5: Press “F1” key on the keyboard controller, and go to “System” and “DVR” menu to make related settings. ‧ System : To select the mode, press “FUN1” key on the keyboard controller. Go to “System” → Mode “Mode”...

  • Page 14: Quick Menu Guide

    QUICK MENU GUIDE 3. QUICK MENU GUIDE 3.1 Menu Configuration Setup menu is shown as below. You can customize the speed dome camera to your own requirements by setting up the respective items in these menus. For details, please refer to the corresponding pages. White Balance Auto, Indoor 1, Indoor 2, Sun, Cloudy 1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000,...

  • Page 15: Quick Programming Guide

    QUICK MENU GUIDE 3.2 Quick Programming Guide The optional keyboard controller can be used to control this speed dome camera. Note: Please enter the PTZ camera control mode of the keyboard controller first. Press the “ ” key on the keyboard controller to enter the PTZ camera control mode. Or use the stylus to click the PTZ icon on the touch screen of the keyboard controller to enter the PTZ camera control mode.
  • Page 16 QUICK MENU GUIDE Press and hold , and press F1, F2, F3, F4 and respectively to quickly perform different functions as follows: Key Combination Functions Description This keystroke combination will show the camera ID Show ID and F1 display on the monitor if the ID is hided. This keystroke combination will clear the camera ID Clear ID information saved in the camera, and restore to the...

  • Page 17: Main Menu - Camera

    MAIN MENU – CAMERA 4. MAIN MENU – CAMERA Press the “ ” key on the keyboard controller to enter the PTZ camera control mode of the controller. Or use the stylus to click the PTZ icon on the touch screen of the controller to enter the PTZ camera control mode, as shown in the picture below.

  • Page 18: White Balance

    MAIN MENU – CAMERA 4.1 White Balance Numeric Value: The white balance function processes the viewed NTSC: (1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000) image to retain color balance over a color temperature PAL: (1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000) range.

  • Page 19: Iris

    MAIN MENU – CAMERA 4.4 IRIS 4.6 Sharpness Auto iris is the lens function that automatically Auto sharpness enhances picture detail by opens and closes the iris in response to changing light increasing the aperture gain of the camera and conditions.

  • Page 20: Main Menu - Tools

    MAIN MENU – TOOLS 5. MAIN MENU – TOOLS Press the “ ” key on the keyboard controller to enter the PTZ camera control mode of the controller. Or use the stylus to click the PTZ icon on the touch screen of the controller to enter the PTZ camera control mode, as shown in the picture below.

  • Page 21: Title Name

    MAIN MENU – TOOLS 5.1 Title Name 5.3 Pan / Tilt Angle The title name is the label used to identify the The numeric value of the pan and tilt angle can be camera viewed on the monitor. Up to 10 characters can displayed on the monitor.

  • Page 22: Zoom Bar

    MAIN MENU – TOOLS 5.5 Zoom Bar 5.7 ID Code No. The zoom ratio can be easily viewed on this zoom The camera ID code number is a series of bar graph. numbers that indicate the location of the camera. Title Setting Title Setting Title Position...

  • Page 23: Baud Rate

    MAIN MENU – TOOLS 5.9 Baud Rate Baud rate is the transmission speed for the RS485 communication. Title Setting 19200 Title Position 9600 Pan / Tilt Angle 4800 Pan / Tilt Graph 2400 Zoom Bar Focus Window ID Code No. ID Code Display Baud Rate 2400 / 4800 / 9600 / 19200 (unit: bits/s)

  • Page 24: Main Menu - Status

    MAIN MENU – FUNCTION 6. MAIN MENU – STATUS Press the “ ” key on the keyboard controller to enter the PTZ camera control mode of the controller. Or use the stylus to click the PTZ icon on the touch screen of the controller to enter the PTZ camera control mode, as shown in the picture below.

  • Page 25: Main Menu - Mode

    MAIN MENU – MODE 7. MAIN MENU – MODE Press the “ ” key on the keyboard controller to enter the PTZ camera control mode of the controller. Or use the stylus to click the PTZ icon on the touch screen of the controller to enter the PTZ camera control mode, as shown in the picture below.

  • Page 26: Reset Default

    MAIN MENU – MODE 7.1 Reset Default Set the Preset Points: Restore all the camera settings to the factory Move the cursor to “Group_1” and press the enter default settings. Press the enter key to confirm the key to enter the setting mode of the preset points, you reset command.

  • Page 27: Add New Preset Points

    MAIN MENU – MODE Add New Preset Points: You can add new defined preset points. Step 1. Use the left / right key to move the cursor to “ ”. And use the up / down key to select “ ”...

  • Page 28: Tracking Setup

    MAIN MENU – MODE Note: Make sure that the starting point of tracking mode 7.4 Tracking Setup is within the pre-defined surveillance area. The PTZ camera will automatically aim and follow the largest movement in the monitoring view, making 7.5 Home Position the camera pan (max.

  • Page 29: Auto Focus

    MAIN MENU – MODE 7.6 Auto Focus There two types of the auto focus mode. You can select the mode depending on your need. Reset Setting Always Pan / Tilt Speed Preset Setup Tracking Setup Home Position Auto Focus Select the Auto Focus Mode: (1) Always: When the auto focus mode is set to “Always”, the camera will always focus automatically no matter the...

  • Page 30: Main Menu - Exit

    MAIN MENU – EXIT 8. MAIN MENU – EXIT Press the “ ” key on the keyboard controller to enter the PTZ camera control mode of the controller. Or use the stylus to click the PTZ icon on the touch screen of the controller to enter the PTZ camera control mode, as shown in the picture below.

  • Page 31: Appendix 1 Default Value

    APPENDIX 1 APPENDIX 1 DEFAULT VALUE Items Default Value White Balance Auto Shutter Speed 1/60 Gain Medium IRIS Level Sharpness Auto Title Display Position Pan / Tilt Angle Graph Pan / Tilt Graph Zoom Bar Graph Focus Window ID Code No. ID Code Display Baud Rate 2400...
