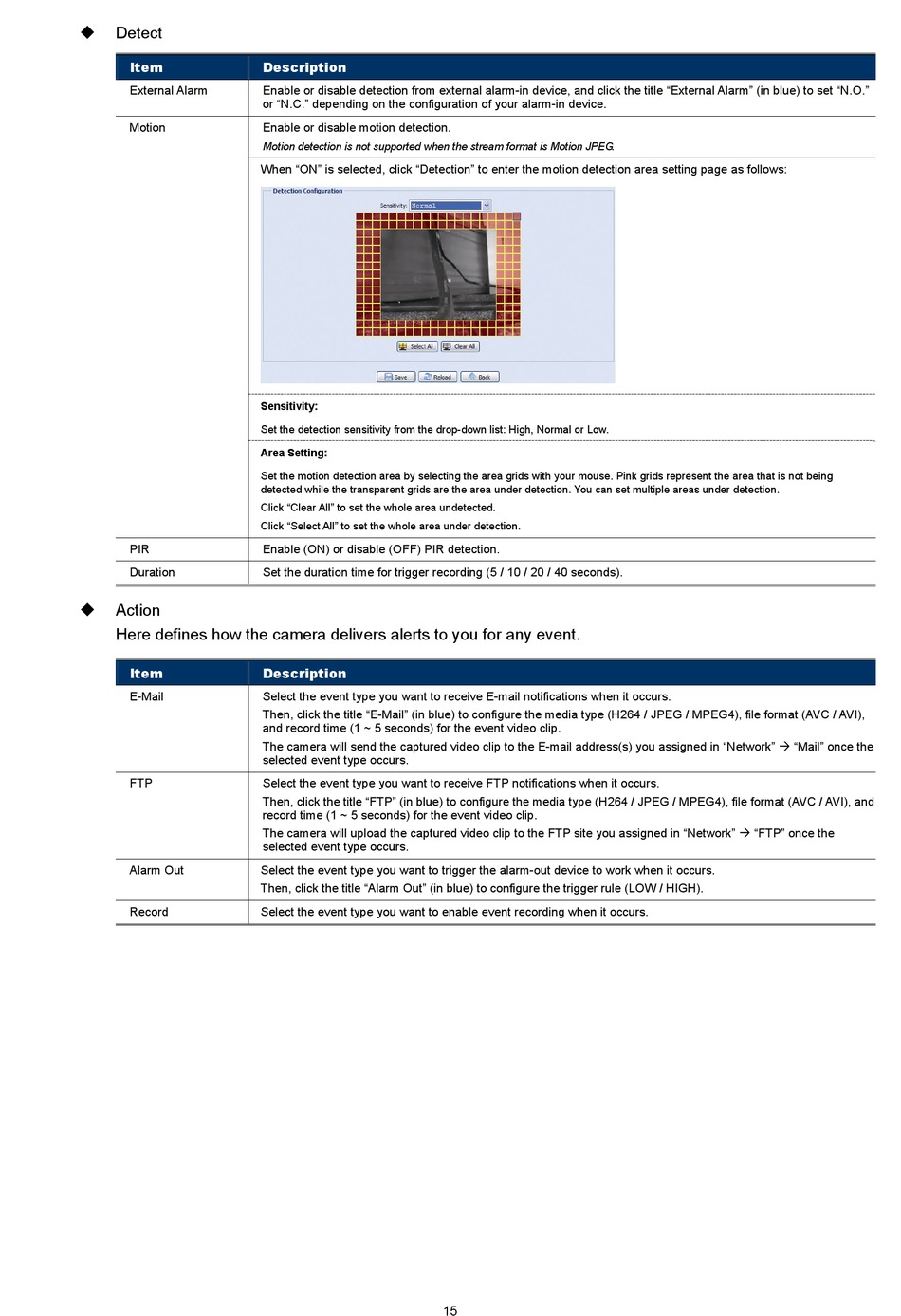

Avtech IM-132E Operation Manual page 20

 Detect
Item
External Alarm
Motion
PIR
Duration
 Action
Here defines how the camera delivers alerts to you for any event.
Item
E-Mail
FTP
Alarm Out
Record
Description
Enable or disable detection from external alarm-in device, and click the title "External Alarm" (in blue) to set "N.O."
or "N.C." depending on the configuration of your alarm-in device.
Enable or disable motion detection.
Motion detection is not supported when the stream format is Motion JPEG.
When "ON" is selected, click "Detection" to enter the motion detection area setting page as follows:
Sensitivity:
Set the detection sensitivity from the drop-down list: High, Normal or Low.
Area Setting:
Set the motion detection area by selecting the area grids with your mouse. Pink grids represent the area that is not being
detected while the transparent grids are the area under detection. You can set multiple areas under detection.
Click "Clear All" to set the whole area undetected.
Click "Select All" to set the whole area under detection.
Enable (ON) or disable (OFF) PIR detection.
Set the duration time for trigger recording (5 / 10 / 20 / 40 seconds).
Description
Select the event type you want to receive E-mail notifications when it occurs.
Then, click the title "E-Mail" (in blue) to configure the media type (H264 / JPEG / MPEG4), file format (AVC / AVI),
and record time (1 ~ 5 seconds) for the event video clip.
The camera will send the captured video clip to the E-mail address(s) you assigned in "Network"  "Mail" once the
selected event type occurs.
Select the event type you want to receive FTP notifications when it occurs.
Then, click the title "FTP" (in blue) to configure the media type (H264 / JPEG / MPEG4), file format (AVC / AVI), and
record time (1 ~ 5 seconds) for the event video clip.
The camera will upload the captured video clip to the FTP site you assigned in "Network"  "FTP" once the
selected event type occurs.
Select the event type you want to trigger the alarm-out device to work when it occurs.
Then, click the title "Alarm Out" (in blue) to configure the trigger rule (LOW / HIGH).
Select the event type you want to enable event recording when it occurs.
