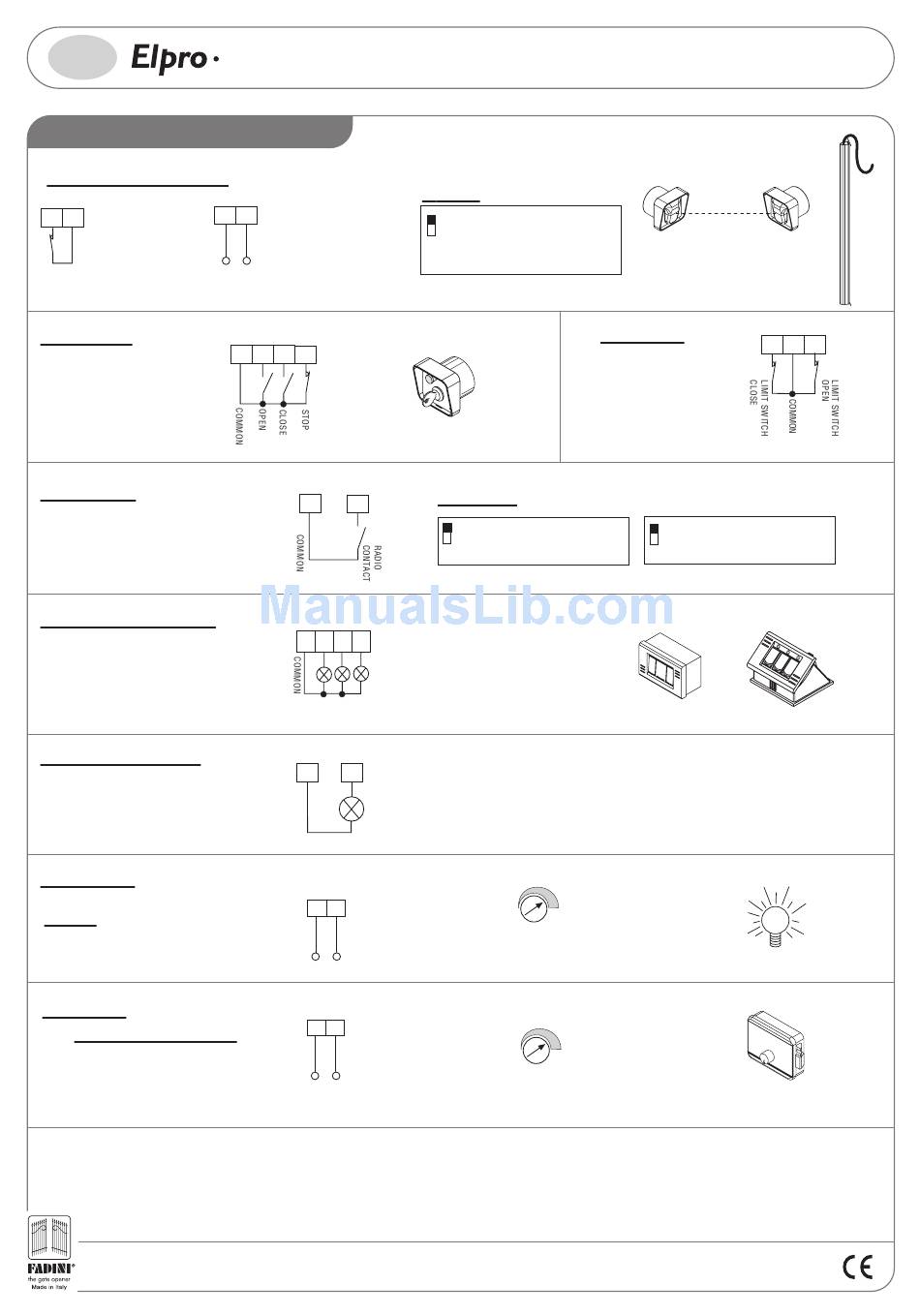

LOW VOLTAGE ELECTRICAL CONNECTIONS

Photocells and Safety Edge:

1 2
PHOTOCELLS AND
SAFETY EDGE

Button switch:

Radio Contact:

- Open/Close (Standard)
- Travel reversing on pulsing
- Step by step
Push Button Switch Pulin3:
24V 3W Indication Light:
Courtesy light:
Connect a 12VAC Relay
(T4 Trimmer Time from 2s to 255s)
to operate a 230V lamp
Electric lock:
Set the T4 Trimmer Time to the lowest value
The electric lock is excited for 2 seconds
4135
Drwg. No.
6
10 SINGLE- AND THREE-PHASE FOR SLIDING GATES
PLUS
AND AUTOMATIONS FITTED WITH LIMIT SWITCHES
12 13
24V (500 mA) OUTPUT (MAX. LOAD:
2 PAIRS PHOTOCELLS
1 RADIO RECEIVER)
3 4 5 6
3 7
28 26
3 27
Led to indicate status of Open - Stop -
Close switches
3
11
Light ON = Open gate
Light OFF = Closed gate
Flashing (fast) 0.5s = Closing gate
Flashing (normally) 1s = Opening gate
Flashing (slowly) 2s = gate is stopped
RS RS
RS RS
DIP-SWITCH 1:
ON: Photocells stop gate while opening,
reverse it on closing once obstacle is
removed
OFF: Photocells do not stop gate while
1
opening, reverse it on closing in
case of an obstacle
DIP-SWITCH 2 and 5 (NEVER set BOTH of them to ON at the same time):
ON: Gate is not reversed while opening
OFF: Any pulse reverses the gate
2
T4
-
+
- TIME EXT (Electric lock and
courtesy light) from 2 to 255s
T4
-
+
Limit switch:
8
ON: Step by step. Stop in between
OFF: Standard operating mode
5
9 10
