LIMIT SWITCH FITTING INSTRUCTIONS

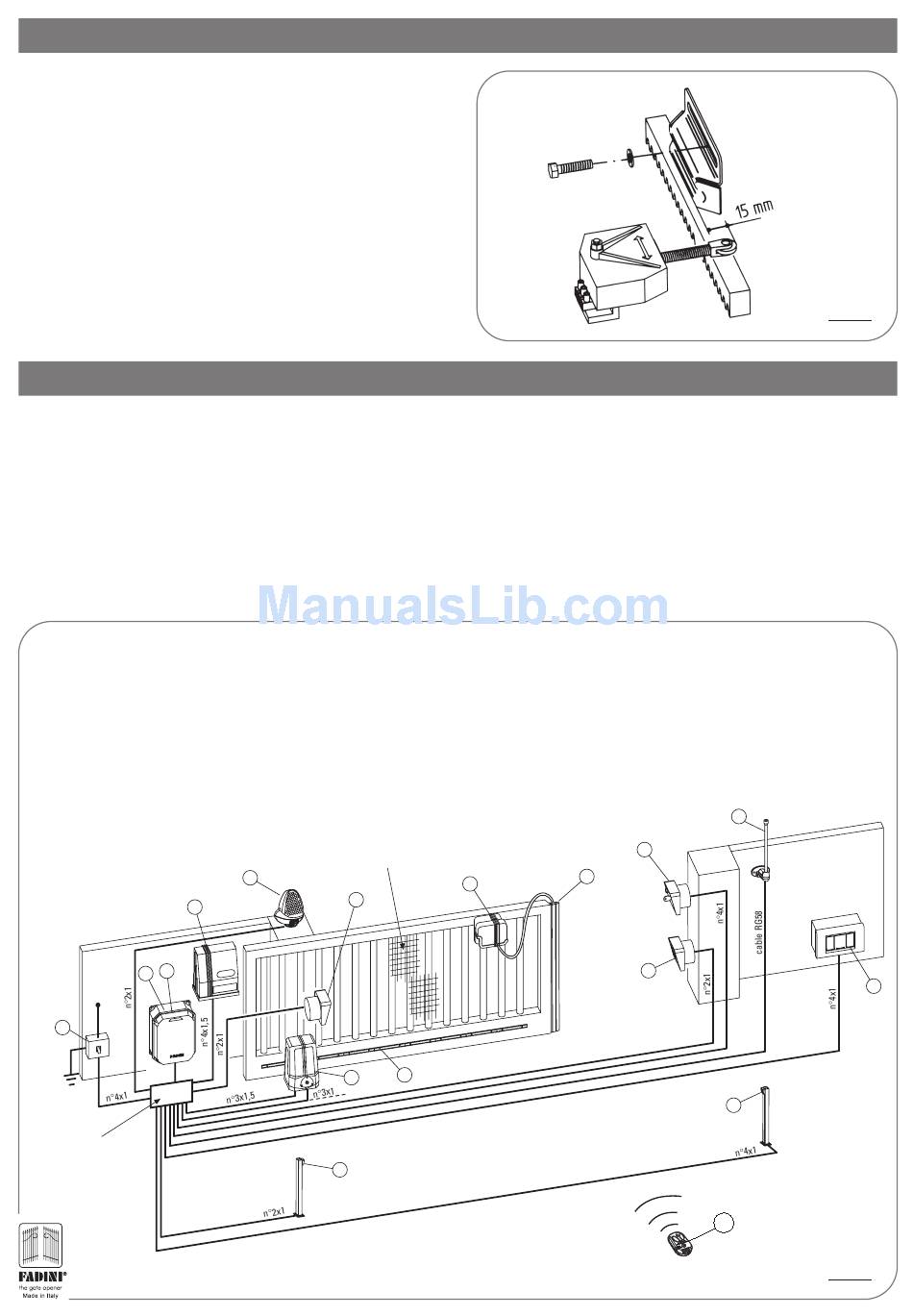

- Fix the limit switch striking plates as shown in the diagram: the
distance between the roller tip of the limit switch spring and the
striking plate front surface line must be 15 mm. This distance
will allow the correct operation of the limit switch spring in both
travelling directions (pic. 5). Should the limit switch roller go
beyond the 15 mm distance, unscrew and remove the roller, then
cut the spring to measure.
- IMPORTANT: The gate must stop before hitting the gate post or
special gate stops to prevent any damage to its structure.

ELECTRICAL CONNECTIONS TO THE ELECTRONIC CONTROL PANEL

- Voltage supply, electric motor, flashing lamp Miri 4 require 1.5 mm
the recommended cable square section is 2 mm
- Limit switches, photocells, keyswitch, push button switch and accessories: 1 mm
- The safety pneumatic edge is to be fitted to the gate edge and is connected to the control box by a cable to be automatically rewound
to take up the slack. A remote controlled switch can be fitted instead, series connected with the limit switch or the photocell receiver.
- The electronic control panels type ELPRO 10 PLUS (pic.7) and ELPRO 14 PLUS (for double bi-parting sliding gates only) are pre-set for
all required operations, automatic or semi-automatic, and are fitted with line relays and fault-detecting led indicators.
- The electronic control panel type ELPRO 70/3 PLUS is incorporated in the operator and wiring is to be done as indicated in the diagram (pic.8).
N.W. CARRY OUT AN ANALYSIS OF THE RISKS INVOLVED IN COMPLIANCE WITH THE EN 12445 AND EN 12463 NORMS. PROVIDE SAFETY
DEVICES WHERE NEEDED.
1) Flashing lamp MIRI 4
2) Photocell receiver POLO 44
3) Radio link receiver CRUASTRO
4) Electronic Programmer ELPRO 10 PLUS
5) Magnetic Thermal 0.03 A, 230 V 50 Hz Mains Circuit Breaker
(beyond 100 m cable Ø 2.5 mm)
6) Gate operator MEC 200
7) Gear rack
8) Radio Link transmitter CRUASTRO
4
11
230 V
5
JUNCTION BOX
WHERE ALL CABLES
ARE PRE-TERMINATED
4
(pic. 6).
2
FIT THE GATE WITH A METALLIC NET
IN CASE THE GATE OPENINGS ARE
WIDER THAN 8 mm
1
2
3
6
15
IMPORTANT: All the electrical equipment to be properly earthed.
cables, which must not exceed a 50 m distance. For greater distances
2
9) Pneumatic Safety Edge or Sensor Barrier
10) Keyswitch PRIT 19
11) Plug-in Radio Receiver Card ASTRO 43/2R
12) Aerial BIRIO A8
13) Photocell Receiver POLO 44
14) Push Buttons PULIN 3
15) Post with POLO 44 Photocell Receiver
16) Post with POLO 44 Photocell Projector
17) Transmitter ASTRO 43/2 TR Piccolo/Small
8
7
LIMIT SWITCH STRIKING
PLATE TO BE FIXED TO THE
GATE BY BOLTS
LIMIT SWITCH ROLLER
cables can be used for these items (Pic.6).
2
12
10
9
13
16
17
PIC. 5
14
PIC. 6
