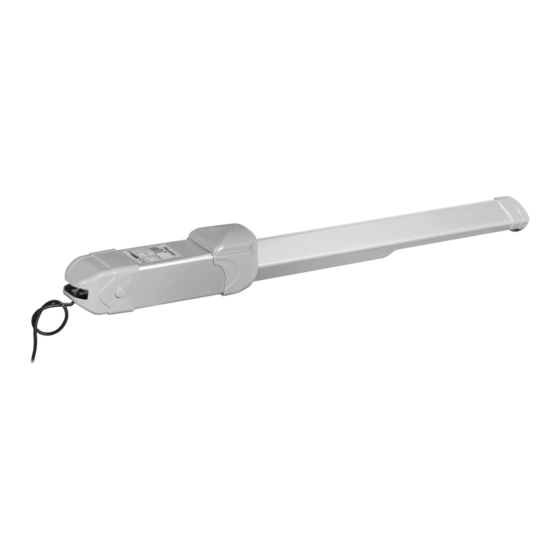

- Page 1 GB Instructions manual 13 - 24 pages universal oil-hydraulic operator for swing gates EN 13241 EN 12453 EN 12445 the gate opener...
-
Page 2: Installation
CE DECLARATION OF CONFORMITY of the manufacturer: Meccanica Fadini snc (Via Mantova, 177/A - 37053 Cerea - VR - Italy) declares under own responsibility that: Hindi 880-evo complies with the 2006/42/CE Machinery Directive, and also that it is sold to be installed in an “automatic system”, along with original accessories and components as indicated by the manufacturing company. - Page 3 The main asset of HINDI 880-evo is that of including, in one version only, all the available oil-hydraulic options as it can be turned...
- Page 4 Pic. 3 FIRST OPERATIONS TO RUN THE PISTON SHAFT Before fixing the operator to the gate and gate post, power supply Hindi 880-evo and run the piston shaft fully out; then swap the phases and run it 5-6 mm in.
- Page 5 (not supplied by the manufacturer). Pic. 5 Misalignment between post- and gate-fixings: HINDI 880-evo: stroke 150 and 280 mm 23 mm HINDI 880-evo: stroke 400 mm 35 mm...
- Page 6 Important: eventually tighten the locknut hard with the help of the holding spanner supplied with the equipment. Fasten Hindi 880-evo on to the mounting plates by means of the supplied bolt and circlips (Pic. 9). Holding spanner included: it allows for...
- Page 7 HINDI 880 - evo SETTING HINDI 880-evo TO THE REQUIRED OPERATING MODES General description It is required first of all that the valve cover be removed. To do this, remove the fastening screw inside the cover itself (Pic. 10).
- Page 8 Pic. 17 UNLOCKING FOR MANUAL OPERATIONS The manual release of Hindi 880-evo operator is required to allow the gate/s to be moved by hand in case the bidirectional or single locking versions of Hindi 880-evo are installed. Insert the supplied coded key into the dedicted lock barrel in the valve block cover and turn it anti-clockwise to slide the lid open.
- Page 9 INSTALLING THE ELECTRIC LOCK An electric lock is always required to be fitted to the gate/s whenever Hindi 880-evo corresponds to the reversible version (non locking action by the hydraulic circuit) and the gate leaf is wide up to or wider than 2,0 meters (Pic. 20 and Pic. 21).
- Page 10 Rear cap Cable gland to be inserted in the previously created slit Hindi 880-evo installed on the left, Hindi 880-evo installed on the right, view from inside the gate view from inside the gate...
-
Page 11: Maintenance Record
NOTE WELL: this document must record any ordinary and extraordinary services including installation, maintenance, repairs and replacements to be made only by using Fadini original spare parts. This document, for the data included in it, must be made available to authorized inspectors/officers, and a copy of it must be handed over the end user/s. -
Page 12: Electric Motor
Average working pressure 1 MPa (10 bar) Maximum pressure 3,5 MPa (35 atm) PERFORMANCE Hydraulic oil Fadini Oil - code 708L Frequency of use very intensive Working temperature - 25 °C + 80 °C Duty cycle (P5) opening 17 s...
