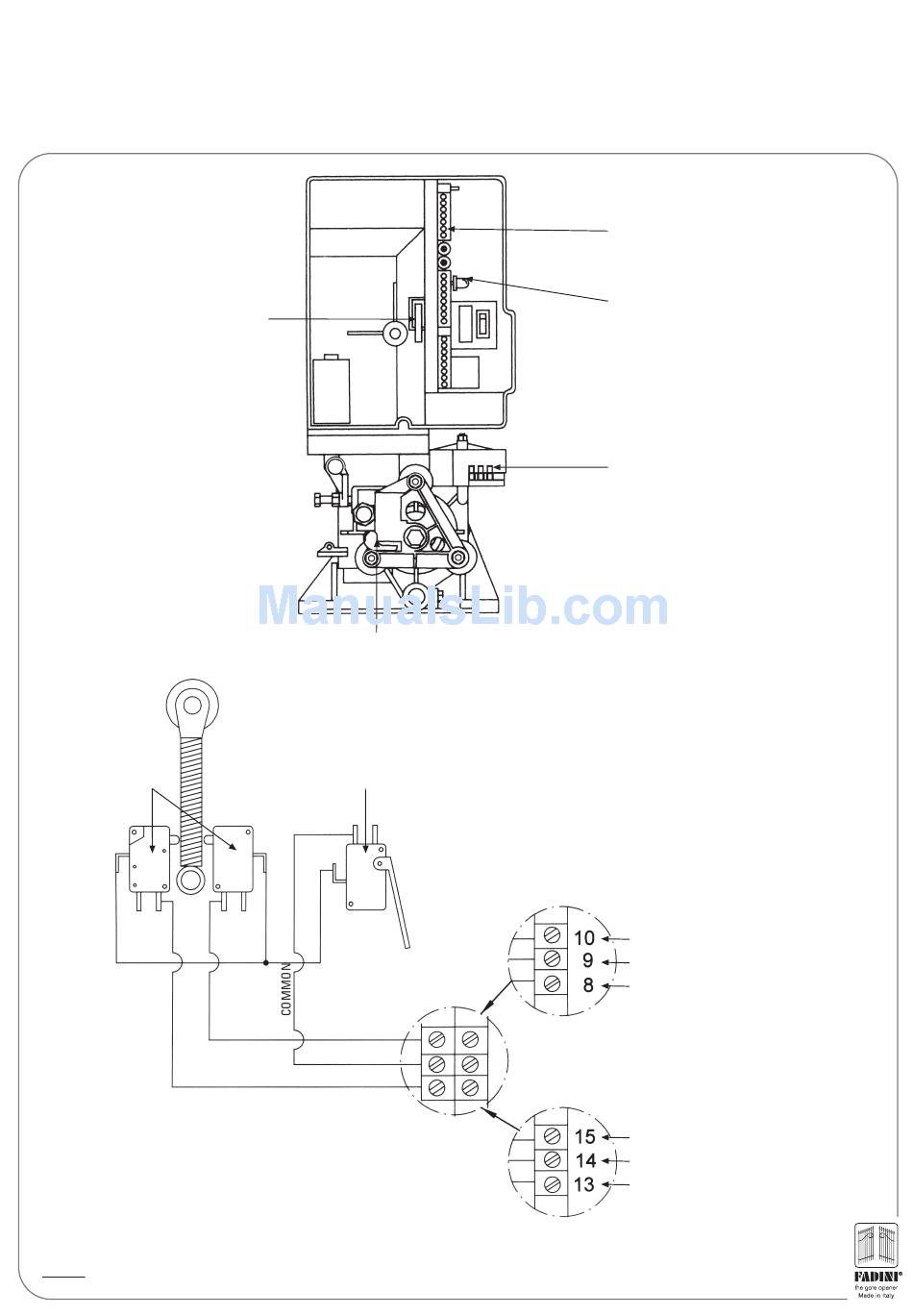

- It is recommended to fit three-phase operators with a safety device consisting of a switch to cut off power to the low voltage circuit.
Connections are in series with the limit switch common terminal (pic. 9). The switch is activated whenever the override spanner is
inserted for manual operations or the operator cover is removed.
Should the limit switches be wrongly connected so that their action opposes the normal travelling of the gate, reverse their connections
in the main board. Change over the live connections, keep the common fixed in the same terminal.
VOLTAGE CUT OFF
MICROSWITCH
LIMIT SWITCH
MICROSWITCH
PIC. 9
VOLTAGE CUT OFF
SAFETY
DEVICE
VOLTAGE CUT OFF
MICROSWITCH
LIVE 2
LIVE 1
INCORPORATED
ELECTRONIC CONTROL CARD
ELPRO 70/3 PLUS
ILLUMINATED LED
BOARD ON VOLTAGE
LIMIT SWITCH
TERMINAL BOARD
TO BE CONNECTED
TO THE MAIN PANEL
LIVE 1
MAIN BOARD
COMMON
CONTROL PANEL
ELPRO 10 PLUS
LIVE 2
LIVE 1
MAIN BOARD
COMMON
CONTROL PANEL
ELPRO 70/3 PLUS N.C.
LIVE 2
11
