Single- (230V) And Three-Phase (400V) Motors; Flashing Lamp; Pedestrian Opening; Hold On Switched (Deadman) Control - fadini MEC 200 Installation Manual

GB
ELECTRICAL POWER CONNECTIONS
Single- (230V) and
Three-phase (400V) Motors:

Flashing lamp:

22 23
Power supply:
230V
OPERATING MODES
Automatic / Semiautomatic:

Pedestrian Opening:

Trimmer T3 from 3 to 30s.
It can be activated by any pulse (eg. by remote control) superior to 2s

Hold on switched (Deadman) control:

Led Status Indication:
L1 = 230V 50Hz power supply. Alight
L2 = Photocells, if obstructed light goes off
L3 = Open. Alight whenever an Open pulse is given
L4 = Close. Alight whenever a Close pulse is given
L5 = Stop. It goes off on pulsing Stop
L6 = Radio. It goes on by pressing a transmitter button
L7 = Gate Status; it flashes on gate opening
L8 = Limit switch Close; off when gate is closed
L9 = Limit switch Open; off when gate is open
L10 = It stays on for a time equal to the time set on T4
4138
Drwg. No.
10
70/3
PLUS
24
DIP-SWITCH 4 and 7:
ON: Pre-flashing
OFF: No pre-flashing
230V MAX 25W
4
27
400V
-
T2
Dwell Time
from 5 to 128s
-
Trimmer
DIP-SWITCH 6
ON= Deadman Control. Dip-switch 4=OFF
and Dip-switch 3=OFF
OFF= Standard Operations
6

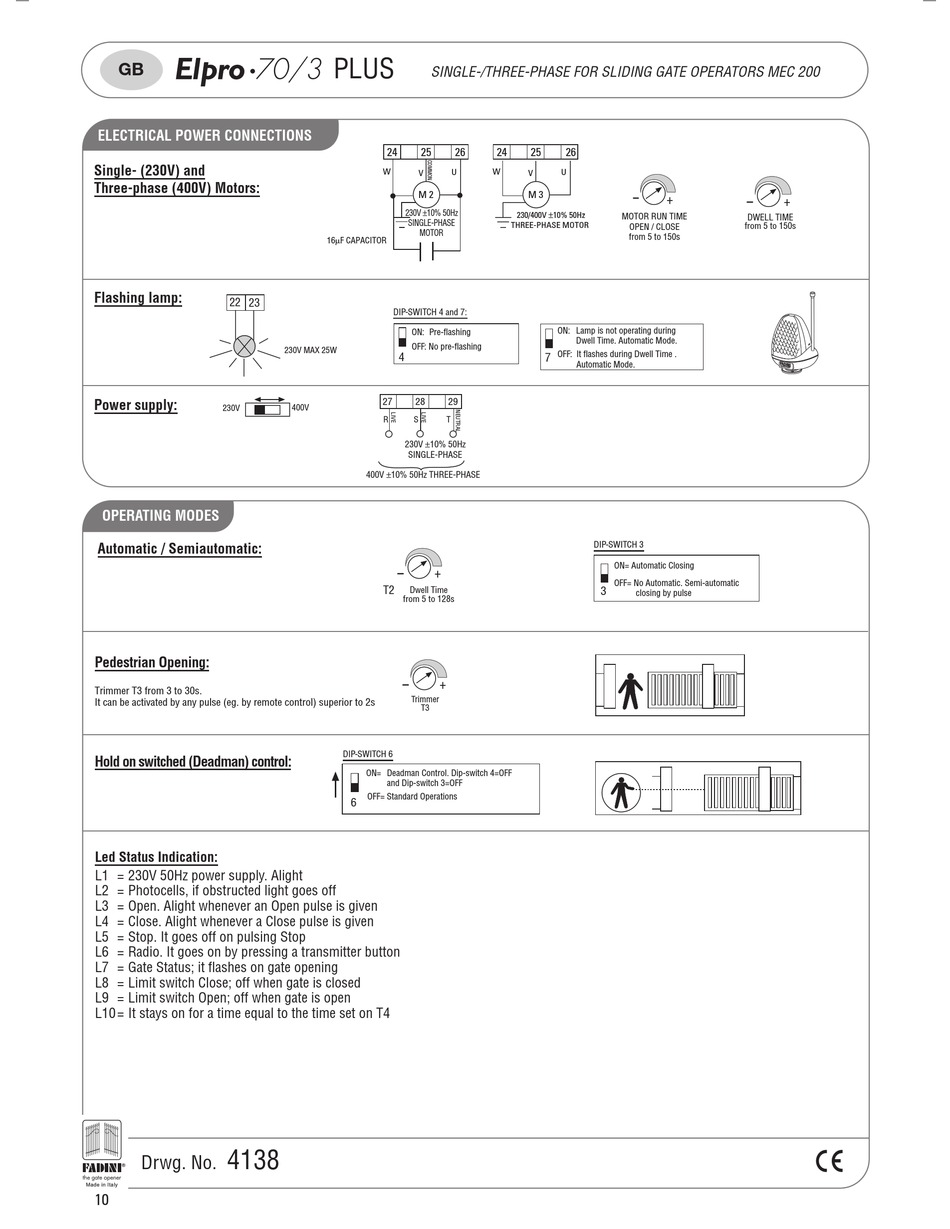

SINGLE-/THREE-PHASE FOR SLIDING GATE OPERATORS MEC 200
25 26 24 25 26
M 2 M 3
ON: Lamp is not operating during
OFF: It flashes during Dwell Time .
7
22 28 29
+
+
T3
-
+
MOTOR RUN TIME
OPEN / CLOSE
from 5 to 150s
Dwell Time. Automatic Mode.
Automatic Mode.
DIP-SWITCH 3
ON= Automatic Closing
OFF= No Automatic. Semi-automatic
3
closing by pulse
-
+
DWELL TIME
from 5 to 150s
