Single- And Three-Phase For Sliding Gates Fitted With Limit Switches; Dip-Switch; Led Status Indication; In Case Of Failure Of The Panel - fadini MEC 200 Installation Manual

10
GB
PULIN 3
RADIO
PLUG-IN
CARD CONNECTOR
L2 L3
L4
1 2 3 4
PIC. 7

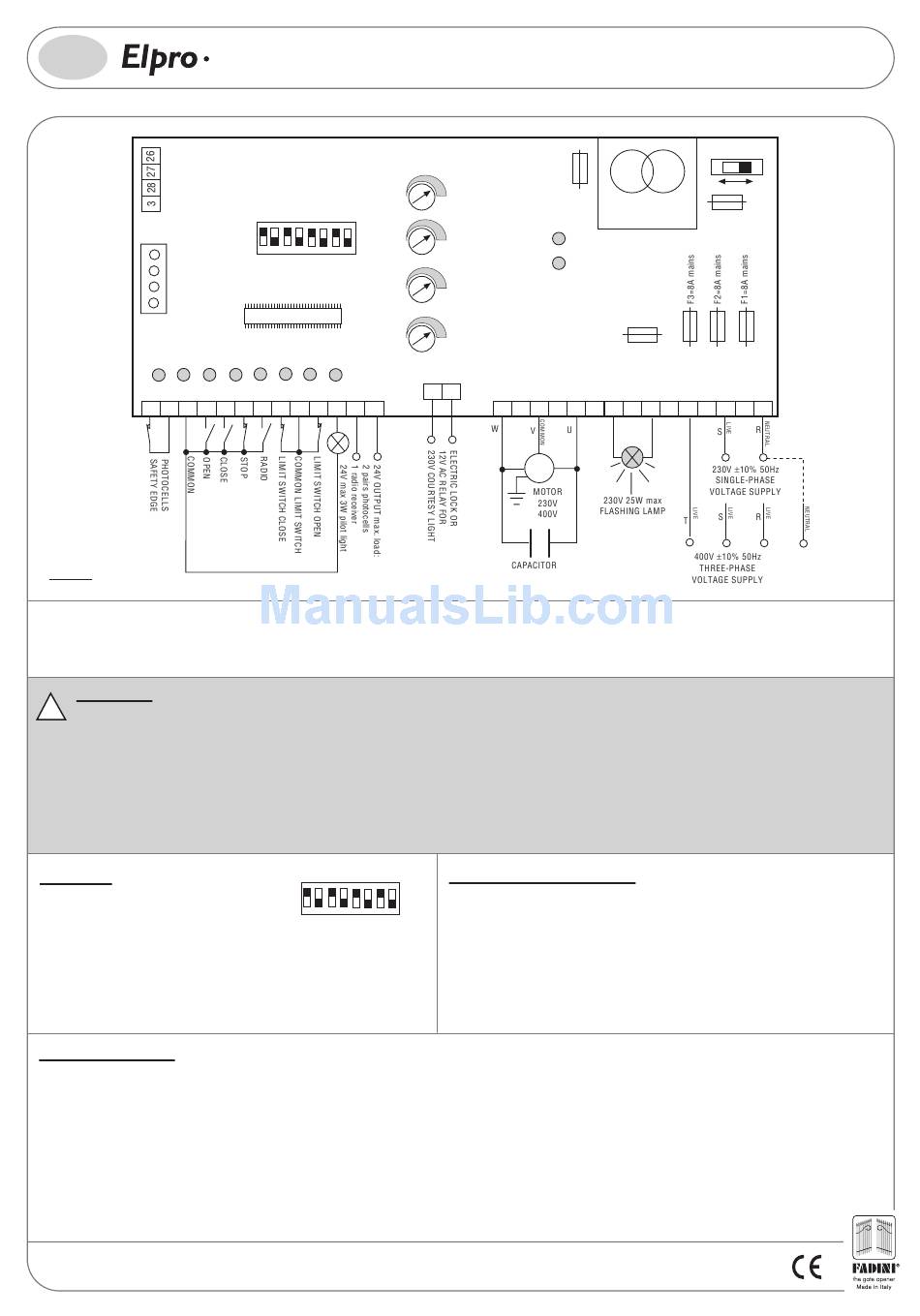

General description: the electronic control panel Elpro 10 Plus, new generation, is designed to operate sliding gates. Power supply is 230/400V single-phase and three-
phase. Built in full compliance with BT 93/68/CE Low Voltage and EMC 93/68/CE Electro-Magnetic Compatibility Regulations. Fitting operations are recommended by a
qualified technician in conformity to the existing safety standards.The manufacturing company declines any responsability for incorrect handling and application; also,
it reserves the right to change or update the control panel any time. Failure to follow installation regalations may result in serious damage to property and persons.
PLEASE NOTE:
! - The control panel must be installed in a sheltered, dry place, inside the box provided with it.
- Make sure that the power supply to the electronic programmer is 230V ±10% or 400V ±10%
- Make sure that the power supply to the Electric Motor is 230V ±10% or 400 V ±10%
- For distances of over 50 metres we recommend using electric cables with bigger sections.
- Fit the mains to the control panel with a 0.03A high performance circuit breaker.
2
- Use 1.5 mm section wires for voltage supply, electric motor and flashing lamp. Maximum recommended distance 50 m.Use 1 mm
limit switches, photocells, push-buttons/key-switch and accessories.
- Bridge terminals 1 and 2 if no photocells are required.
- Bridge terminals 3 and 6 if no key- or push-button switches are required.
N.W: To fit extra accessories such as lights, CCTV etc. use only solid state relays to prevent damages to the microprocessor.

Dip-Switch:

1= ON. Photocells. Stop while opening
2= ON. Radio. No reversing while opening
3= ON. Automatic closing
4= ON. Preflashing activated
5= ON. Radio. Step by step. Stop in between
6= ON. Dead Man Control (Dip 4=OFF and Dip 3=OFF)
7= ON. No lamp on during dwell time
8= OFF. No function

Led Status Indication:

L1= 230V 50Hz power supply. Alight
L2= Photocells, if obstructed light goes off
L3= Open. Alight whenever an Open pulse is given
L4= Close. Alight whenever a Close pulse is given
L5= Stop. It goes off on pulsing Stop
L6= Radio. It goes on by pressing a transmitter button
L7= Gate Status; it flashes on gate opening
L8= Limit switch Close; off when gate is closed
L9= Limit switch Open; off when gate is open
L10= It stays on for a time equal to the time set on T4
4135
Drwg. No.
SINGLE- AND THREE-PHASE FOR SLIDING GATES
PLUS
AND AUTOMATIONS FITTED WITH LIMIT SWITCHES
DIP-SWITCH
ON
OFF
4 5 6 7 8
1 2 3
ELPRO 10 plus 1.5
MICROPROCESSOR
L5 L8 L9 L7 L6
7 10 11 12 13
5 6 8 9
DIP-SWITCH
4 5 6 7 8
1 2 3
F6=630mA
24V protection
T4
EXT TIME (electric lock and
-
+
courtesy light) from 2 to 255s
T3
PEDESTRIAN L1
-
+
OPENING TIME
from 3 to 30s
L10
T2
DWELL TIME
-
+
from 5 to 128s
T1
- MOTOR RUN TIME
+
from 5 to 128s
RS RS
16 17 18
M

In case of failure of the panel:

ON
- Make sure that the power supply to the electronic programmer is
230V ±10% or 400V ±10%
OFF
- Make sure that the power supply to the Electric Motor is 230V ±10%
or 400 V ±10%
- Check fuses
- Check photocells if contacts are normally closed
- Check all NC contacts
- Check that no voltage drop has occurred from the control panel to
the electric motor
230/400V
TRANSFORMER
F4=630mA
Transformer
protection
F5=1A flashing lamp
protection
ELPRO 10 PLUS
19 21 22 22 23
20
2
section wires for
5
