RACK FITTING OPERATIONS

IMPORTANT: If installing MEC 200 Vertical it is recommended to insert 2 mm shims between the fixing bracket and the operator base
plate before welding the rack to the gate, so that rack and gear mesh each other with an adequate clearance after that the shims have
been removed.

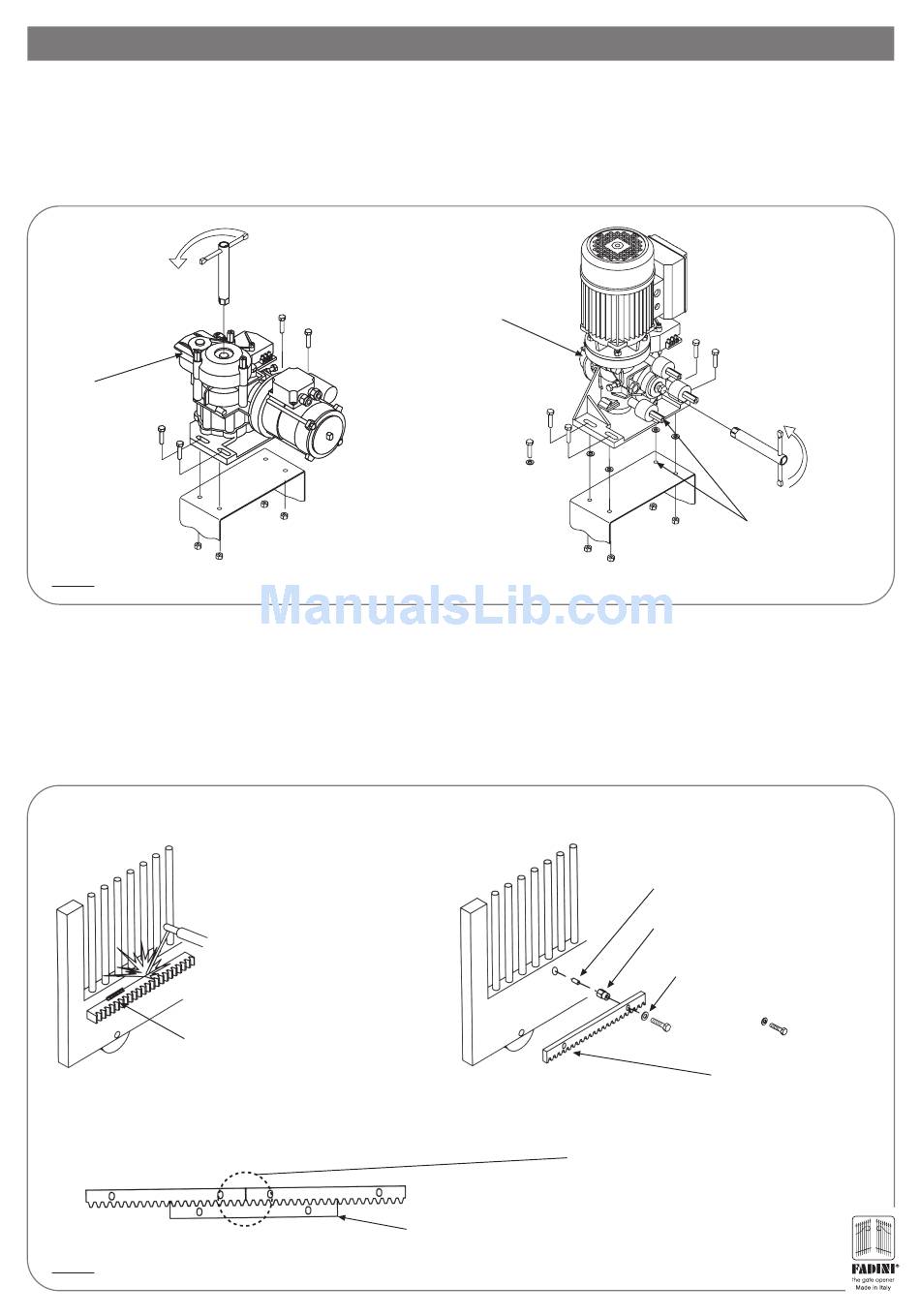

- Temporary fix MEC 200 on to the fixing bracket, perfectly levelled, by means of the 4 fixing screws C.
- MEC 200 outer gear must run idle: loosen (by 1 or 2 turns maximum) the hexagonal head screw by means of the release spanner E 17
supplied with the equipment (pic.3).
ANTI-CLOCKWISE
TO RELEASE
DRIVING GEAR
OR SPROCKET
FIXING
BRACKET
PIC. 3
MEC 200 HORIZONTAL
- While fixing the rack it is required that the MEC 200 driving gear is not connected with the gate and it can be made run idle by means
of the release spanner E17 supplied with the equipment; the gate can be freely moved by hand.
- Temporary clamp the rack to the gate so that it can adequately mesh the driving gear: the rack must mesh the driving gear, idle, of MEC
200 in a very smooth way, without friction (pic. 4).
IMPORTANT: Before definitely fixing any component, make sure that the rack can mesh the driving gear of MEC 200 so that the whole
system, gate included, can be smoothly run by hand the full travel open and close without any friction.
- Remove the 2 mm shims only after having fixed the rack. An adequete clearance between rack and gear has thus been achieved (pic. 4).
RACK FIXING BY WELDING IT TO THE GATE
RIGID SPOT WELDING
MEC 200 HORIZONTAL
PIC. 4
RELEASE SPANNER E 17
M8 FIXING
SCREWS - C
22x22 mm RACK, 2 m LENGTH
DRIVING GEAR
OR SPROCKET
M8 FIXING
SCREWS - C
FIXING
BRACKET
RACK FIXING BY MEANS OF SCREWS AND FITTING PARTS
MEC 200 VERTICAL
IMPORTANT: respect the same rack pitch when joining
the rack bars. Use a spare rack bar as in the picture to
make sure that the junction has the same configuration.
PITCH GAUGING SPARE RACK
ANTI-CLOCKWISE
TO RELEASE
2 mm SHIMS TO
REMOVE AFTER HAVING
FIXED THE RACK TO
THE GATE
MEC 200 VERTICAL
THREADED PIN
DISTANCE NUT
WASHER
M8 SCREW
MEC 200 VERTICAL IS SUPPLIED
WITH 8 mm STEEL RACK, 1 m
LENGTH TO BE FIXED BY SCREWS
RELEASE
SPANNER E 17
