INSTRUCTIONS TO FIT THE VERTICAL AND HORIZONTAL MEC 200
OPERATORS TO A SLIDING GATE
FOR A PROPER AND PERFECT PERFORMANCE OF MEC 200 READ THE INSTRUCTIONS THAT ARE OUTLINED IN THIS MANUAL AND
KEEP TO THE DIAGRAMS.
Mec 200 is an extremely versatile system and can suit any sliding gate as it can be mounted either vertically or horizontally, and the motor
is available in different power specifications such as 0.37 KW (0.5 HP single- and three-phase); 0.73 KW (1.0 HP single- and three-phase);
1.1 KW (1.5 HP three-phase only). It is a strong and reliable automation. It has a torque control device that can be manually adjusted;
worm and gear are made of bronze and steel and are supported by bearings, in an oil bath. A manual overriding system allows manual
operations of the gate in emergency events like power failure.

POINTS TO CHECK WITH THE GATE

- Check that the gate track is well fixed to a solid foundation to prevent deformation which would result into an unbalanced travelling of
the gate.
- IMPORTANT: Make sure that gate stops are fixed in the open and closed gate positions so that the gate does not over travel the permitted
limit and go out of the upper guide.
- IMPORTANT: Make sure that, once at the end of the permitted travel, the gate does not hit the gate posts or special gate stops to avoid
damages to its structure.
FITTING MEC 200 ON TO THE FIXING BASE PLATE

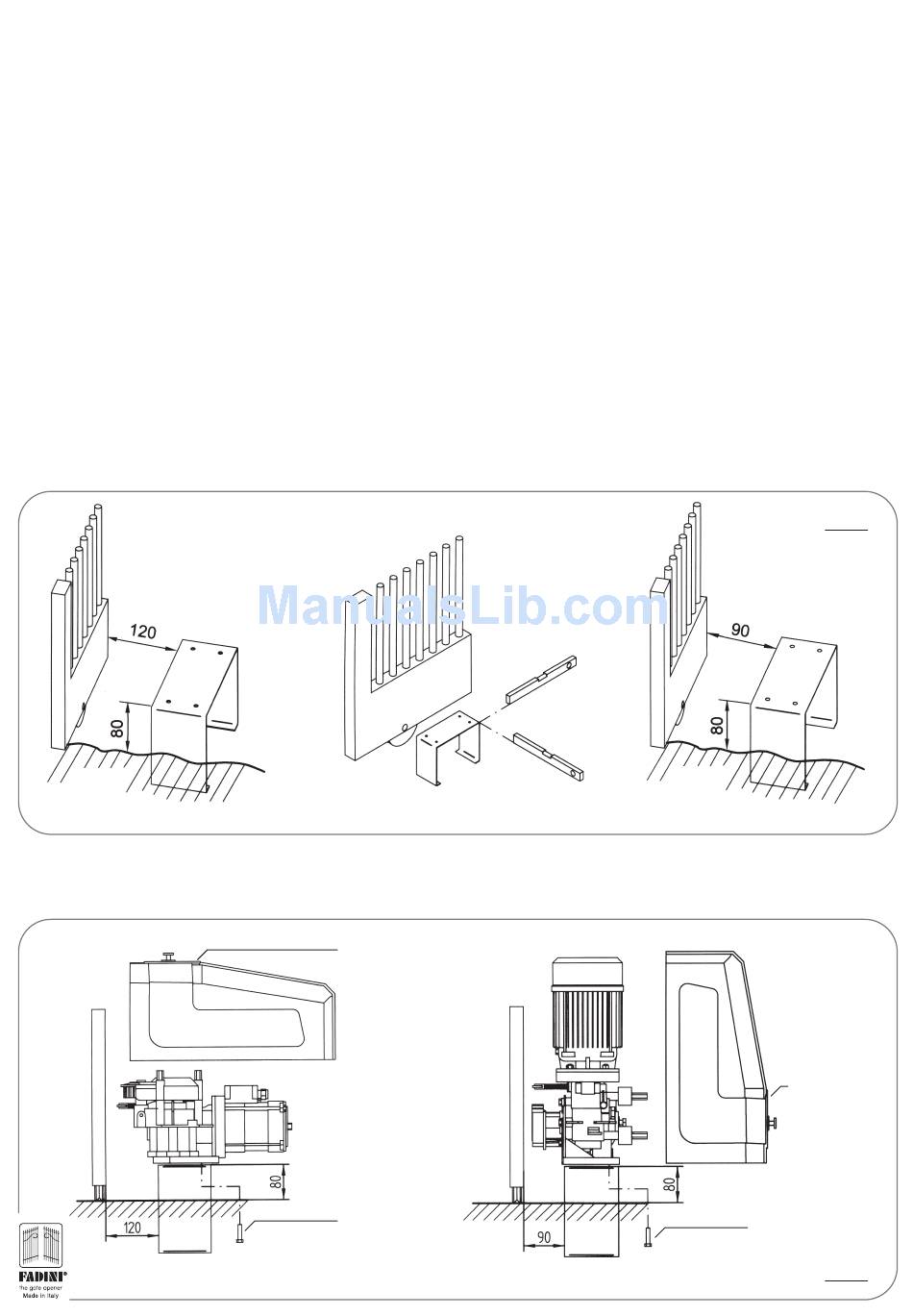

- The first operation is to fix the fixing base plate to the ground and make sure that it is perfectly levelled. Fixing distances are as indicated
in pic.1 here below. Fixing is by setting the plate into a concrete foundation.
- Remove the MEC 200 cover by loosening the three screws-A and pulling it upwards; Temporary fix the MEC 200 operator to the fixing
base plate by means of the four screws-B. (pic. 2).
FIXING BASE PLATE
TO SET IN CONCRETE
GROUND
MEC 200 HORIZONTAL
- Remove the MEC 200 cover by loosening the three screws-A and pulling it upwards; temporary fix the MEC 200 operator to the fixing
base plate by means of the four screws-B (pic.2).
MEC 200 HORIZONTAL
2
SPIRIT LEVEL
SCREWS TO FIX
THE COVER - A
PROTECTION COVER
4 Nos. FIXING
SCREWS - B
GROUND
MEC 200 VERTICAL
PROTECTION
COVER
4 Nos. FIXING
SCREWS - B
MEC 200 VERTICAL
PIC. 1
FIXING
BASE PLATE
TO SET IN
CONCRETE
SCREWS TO FIX
THE COVER - A
PIC. 2
