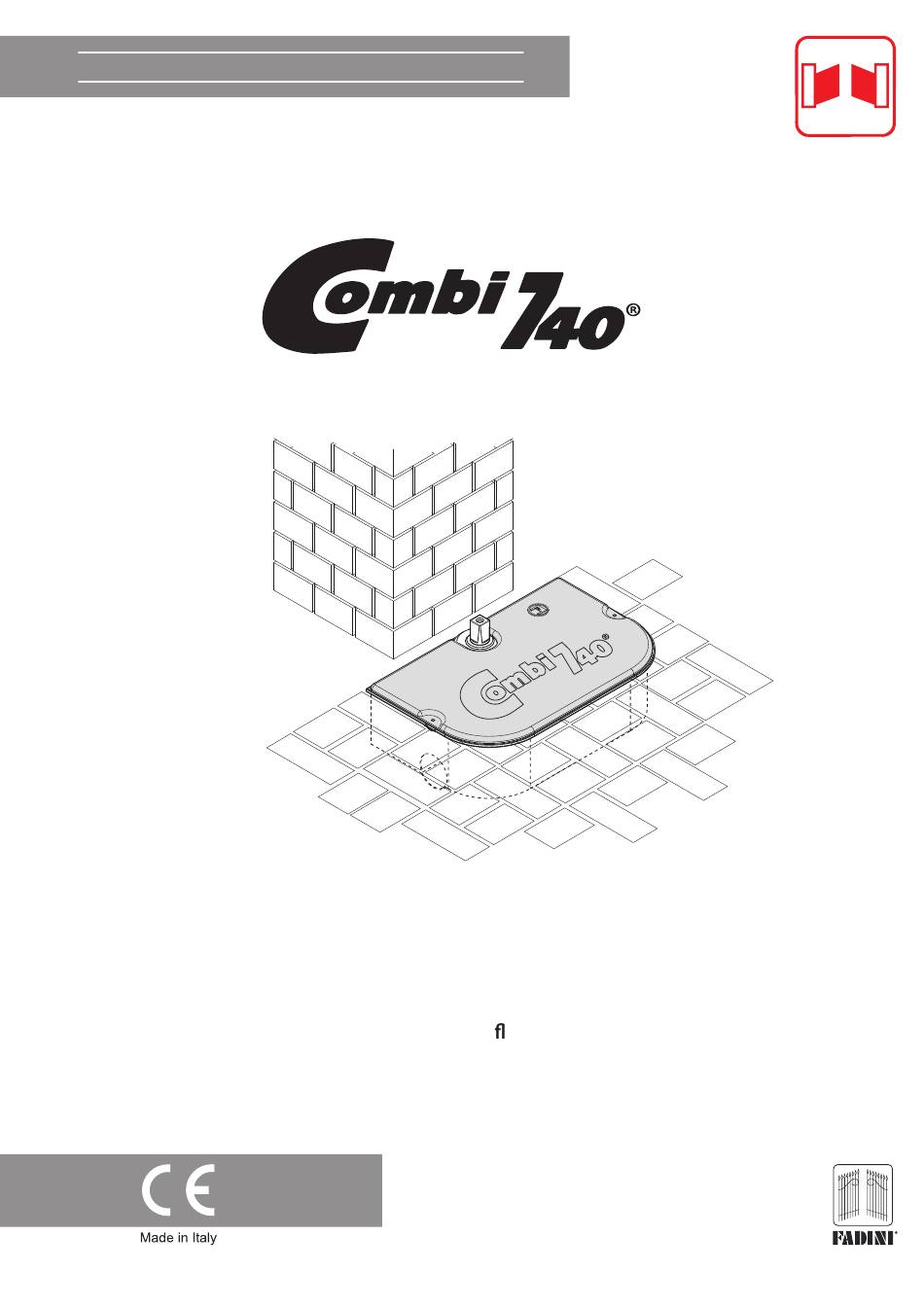

fadini Combi 740 Instruction Manual
Underground oil-hydraulic operator for swinging gates
Hide thumbs
Also See for Combi 740:
- Instruction manual (16 pages) ,
- Manual (2 pages) ,
- Instruction manual (16 pages)
Advertisement
Quick Links
GB Instructions manual
15 - 28
pages

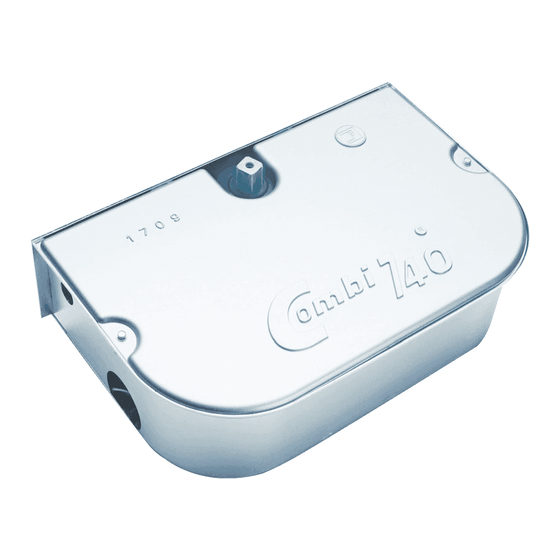

Underground oil-hydraulic operator for swinging gates
110° or 175° shaft rotation
Compact all-in-one oil-hydraulic motor-pump and jack
Reversible or bidirectional locking versions
Models with or without hydraulic braking device
Models with or without ow regulator
EN 13241
EN 12453
EN 12445
the gate opener
15
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for fadini Combi 740
Summary of Contents for fadini Combi 740
- Page 1 GB Instructions manual 15 - 28 pages Underground oil-hydraulic operator for swinging gates 110° or 175° shaft rotation Compact all-in-one oil-hydraulic motor-pump and jack Reversible or bidirectional locking versions Models with or without hydraulic braking device Models with or without ow regulator EN 13241 EN 12453 EN 12445...
-
Page 2: Installation
CE DECLARATION OF CONFORMITY of the manufacturer: Meccanica Fadini snc (Via Mantova, 177/A - 37053 Cerea - VR - Italy) declares under own responsibility that: Combi 740 complies with the 2006/42/CE Machinery Directive, and also that it is sold to be installed in an “automatic system”, along with original accessories and components as indicated by the manufacturing company. - Page 3 (for hydraulic jacks with without hydraulic locking without hydraulic locking hydraulic locking device) device) device) Stainless steel cover (optional) Aluminium enclosure cover COMBI 740 - 110° COMBI 740 - 175° Preparatory distance support Enclosure (zinc-coated or stainless steel) Pic. 1...
- Page 4 COMBI 740 is a handed unit, either right- or left-handed (gates viewed from inside). Being oil-hydraulic, it can o er all the advantages that this feature allows such as reliability, smooth movements, adjustable thrust powers by maximum and minimum pressure valves to suit any kind of swinging gates.
-
Page 5: View From Below
Pic. 4 Important: for installations with Combi 740 (reversible ie. non locking or locking) on gates longer than 2,0 m each it is always necessary to install an electric lock with a gate stop latch: the possible solutions are shown in Pic. 5 and Pic. -
Page 6: Installing The Enclosure
IDEAL USE OF THE UNDERGROUND OIL-HYDRAULIC COMBI 740 - COMBI 740 Reversible version, 110° rotation: 1) COMBI 740 - 110° can suit any gate type, always with an electric lock. 2) For gate leafs wider than 2,50 m, COMBI 740 braking version * with is recommended. - Page 7 Pic. 11 The gate can be installed even without Combi 740: the enclosure, actually, is pre-set to house the preparatory support which, once secured inside of it, replaces the lower gate hinge (Pic. 12). M8 xing nuts...
- Page 8 GATE PREPARATION: FIXING THE EMERGENCY RELEASE BRACKET OR THE FERRULE The gate can be xed onto the COMBI 740 operator in three di erent ways: by the emergency release bracket, the support plate with square-bored ferrule and the square-bored ferrule.
- Page 9 Pic. 16 Pic. 17 Combi 740 is to be inserted into the enclosure, xed by using the two hexagonal studs and held in place by the raised edges of the two slits in the enclosure base (Pic.18). After inserting the right and left COMBI 740s inside the respective enclosures, it is possible to nally install the gates.
- Page 10 ADJUSTING THRUST FORCE The anti-crashing safety of Combi 740 is ensured by the hydraulic maximum pressure valves, which allow for an accurate and stable adjustment of the thrust force over the time. To access the thrust adjusting screws, undo the Allen screw and remove the cover (Pic. 22).
- Page 11 (item code 562L) (beyond 100 m cable section 2,5 mm²) 4 - Junction box (not supplied by the manufacturer) 12 - Right-handed COMBI 740 5 - Left-handed COMBI 740 13 - Key-switch Chis 37 (item code 371L) 6 - Photocell projector (inside) Fit 55 (item code 551L)
-
Page 12: Maintenance Record
NOTE WELL: this document must record any ordinary and extraordinary services including installation, maintenance, repairs and replacements to be made only by using Fadini original spare parts. This document, for the data included in it, must be made available to authorized inspectors/o cers, and a copy of it must be handed over the end user/s. - Page 13 Duty cycle opening ~ 28 s Working temperature -20 °C +80 °C (*) stop 30 s Oil type FADINI Oil - Code 708L closing ~ 28 s Shaft rotation 110° - 175° stop 30 s Torque 250 - 400 Nm...
- Page 14 COMBI 740 COMBI 740 underground oil-hydraulic operator for swinging gates ACTUATOR RELEASING FOR MANUAL OPERATIONS OF THE GATE tted WITH the emergency manual release bracket Emergency manual Release spanner release bracket ACTUATOR RELEASING FOR MANUAL OPERATIONS OF THE GATE WITHOUT the emergency manual release bracket...
