CONSTRUCTION

All metalic components of the machine, in direct contact with
drinking water are manufactured from high quality 304 grade
stainless steel, or non ferrous materials, providing maximum
resistance to corrosion.

INSTALLATION

LOCATION

The boiler must be installed in a location where access is
restricted to operators that are suitably trained, or where
untrained operators of the machine can be supervised by trained
personnel.

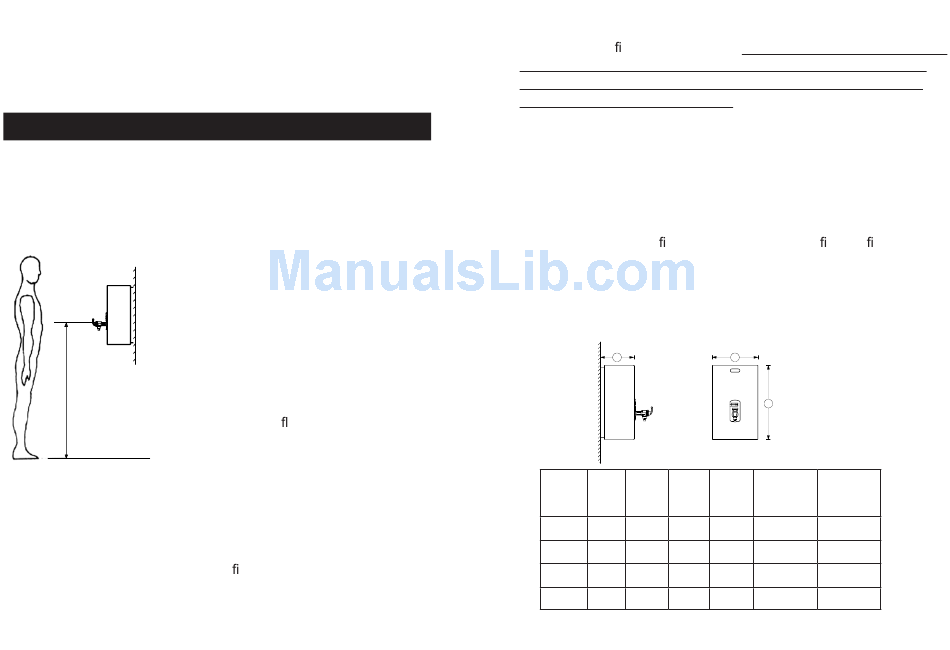

To comply with recommendations
from the health and safety executive
it is important that due consideration
be given to safe operation of the
controls of the boiler. The boiler
should therefore be mounted in
such a manner that the operator can
stand directly facing the machine
with the controls at a recommended
height from the oor to the draw-off
tap handle of 1200mm +/- 100mm.
Consideration should also be given
to the servicing requirements of the machine. The maximum and
minimum ambient operating conditions must be between 5 °C
and 35 °C. The appliance is not suitable for installation where
a water jet could be used. Install the boiler in a position having
adequate ventilation, on a wall capable of carrying the working
weight of the boiler. A suitably quali ed engineer must install this
unit. Plumbing and electrical installation work is involved.
Page 4

COLD WATER INLET

To comply with the U.K. Water Supply Regulation a single check-
valve must be tted to the supply. BEFORE CONNECTING, THE
SUPPLY PIPE MUST BE THOROUGHLY FLUSHED OUT TO
ENSURE THAT FOREIGN MATTER DOES NOT BLOCK OR
ENTER THE SOLENOID VALVE
The boiler must be connected to a potable water supply, in a
manner which complies with UK water regulations. The boiler
should be connected to a ½" (15mm) drinking water supply via an
appropriate isolating valve. The supply must provide a constant
pressure of between 20 KPa and 1000 KPa (0.2 to 10 Bar).
If the water supply contains excessive solids in suspension it is
recommended that a ne mesh "in line" water lter is tted in the
pipe work. Failures due to scale and sediment are not covered by
the warranty.

DIMENSIONS AND WEIGHTS

C
A B
MODEL
5L mm 510 313
7.5L mm 582 368
10L mm 582 368
15L mm 623 401
B
A
DRY WORKING
C
WEIGHT WEIGHT
226 10 17
Kg Kg
251 13 24.5
Kg Kg
251 13 27
Kg Kg
274 15 35
Kg Kg
Page 5
